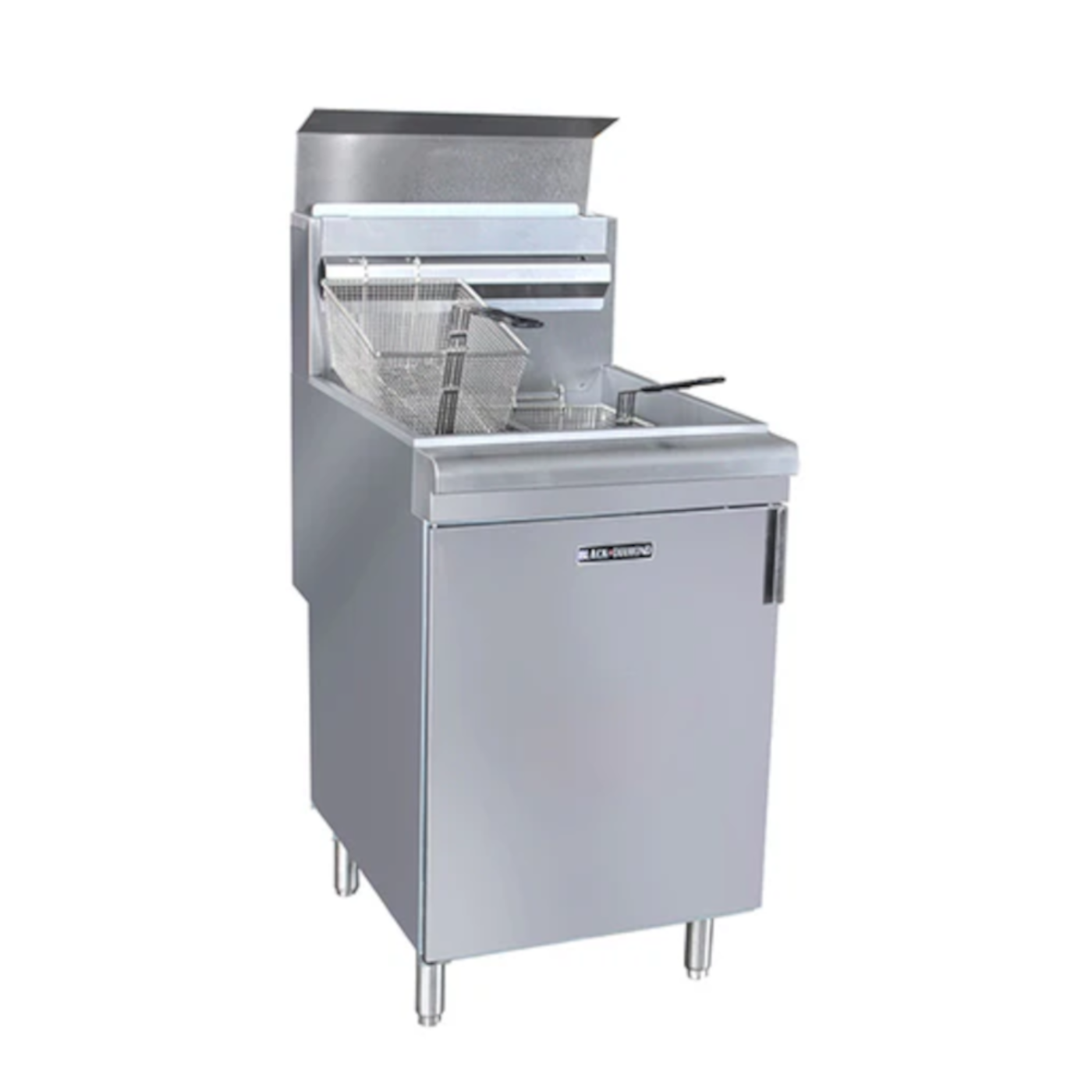

Adcraft BDGF-150/NG Black Diamond 150K Gas Deep Fryer NG - BDGF-150/NG
150,000 BTU floor standing gas deep fryer is constructed of a 16 gauge stainless steel tank and has a thermostat range of 200° F (93°C) to 400°F (204°C). Long lasting stainless steel baffles are mounted in the heat exchange tubes to provide maximum heating and combustion efficiency. A standing pilot light design provides an instant ignition source when heat is required and an automatic shut off function if the fryer temperature exceeds 450°F (232°C). This fryer comes complete with two nickel plated oblong wire mesh baskets, one nickel plated tube rack, drain extension, built-in heat deflector and 6" adjustable legs. Black Diamond fryers are manufactured with Robert Shaw components that are made in the USA. 65-70 lb oil capacity. Set up for use with Natural Gas (NG). ETL and ETL Sanitation Listed. 1 year warranty on parts and labor and 5 year warranty on stainless steel tank.
Features
- Welded 16 gauge stainless steel tank with a super smooth machine finish ensures easy cleaning
- Long lasting baffles are mounted in the heat exchange tubes to provide maximum heating and combustion efficiency
- Standing pilot light design provides a ready flame when heat is required
- Cabinet is constructed with a stainless steel front and door with galvanized sides and back
- Thermostat maintains temperature between 200° (93°C) and 400°F (204°C)
- Integrated gas control valve acts as a manual and pilot valve, automatic pilot valve, gas filter, pressure regulator and automatic main valve
- Gas control valve prevents gas flow to the main burner until pilot is established and shuts off gas flow automatically if the pilot flame goes out
- Temperature limit automatically shuts off all gas flow if the fryer temperature exceeds 450°F (232°C)
- Includes Robert Shaw components that are made in the USA
- Standing pilot and thermostat maintain temperature automatically at the selected temperature (between 200°F (93°C) and 400°F (204°C))
- Front 1-1/4” drain for quick draining
- Two nickel plated oblong wire mesh baskets
- One nickel plated tube rack
- One drain extension
- Built-in heat deflector
- 6” adjustable legs
Specifications
| Model |
BDGF-150/NG |
| Total BTU |
150,000 BTU |
| Shipping Dimensions |
21" W x 30-1/4" D x 53-1/2" H |
| Net Weight |
198.5 lbs |
| Gross Weight |
218 lbs |
| Oil Capacity |
65-70 lbs |
What our Experts Think
-
High Output: 120,000 BTU provides powerful heating for high-volume frying, ideal for busy kitchens.
-
Durable Build: Made with heavy-duty stainless steel for long-lasting performance and easy cleaning.
-
Efficient Heating: Stainless steel baffles in the heat exchange tubes maximize efficiency for consistent frying.
-
User-Friendly Design: Includes two mesh baskets and adjustable legs for easy operation and cleaning.
Q&A
Q: What is the Adcraft BDGF-120/LPG Gas Deep Fryer?
A: The Adcraft BDGF-120/LPG is a commercial-grade, 120,000 BTU propane gas deep fryer designed for high-volume frying.
Q: What is the oil capacity of the BDGF-120/LPG?
A: It has a 45–50 lb oil capacity, making it ideal for large frying tasks.
Q: What temperature range does the fryer offer?
A: The fryer operates within a temperature range of 200°F to 400°F.
Q: What comes with the fryer?
A: The fryer includes two wire mesh baskets, a tube rack, a drain extension, and adjustable 6" legs.
Maintenance Tips
-
Regular Cleaning:
Wipe the exterior with a damp cloth and mild detergent. Clean the fryer basket and oil reservoir regularly to prevent buildup.
-
Oil Management:
Drain and filter the oil at the end of each day or shift. Ensure the fryer is cool before draining to prevent oil from solidifying.
-
Temperature Monitoring:
Maintain the thermostat between 200°F (93°C) and 400°F (204°C) for optimal frying conditions.
-
Gas Pressure Check:
Ensure the gas pressure is set at 10” W.C. (2.54 kPa) for propane gas. If incoming pressure exceeds ½ PSI (3.5 kPa), install an additional pressure regulator.
-
Component Inspection:
Inspect the standing pilot light, thermostat, and gas control valve for proper operation.
-
Professional Servicing:
Schedule servicing every 6 months to ensure all components are functioning correctly and to extend the fryer’s lifespan.
