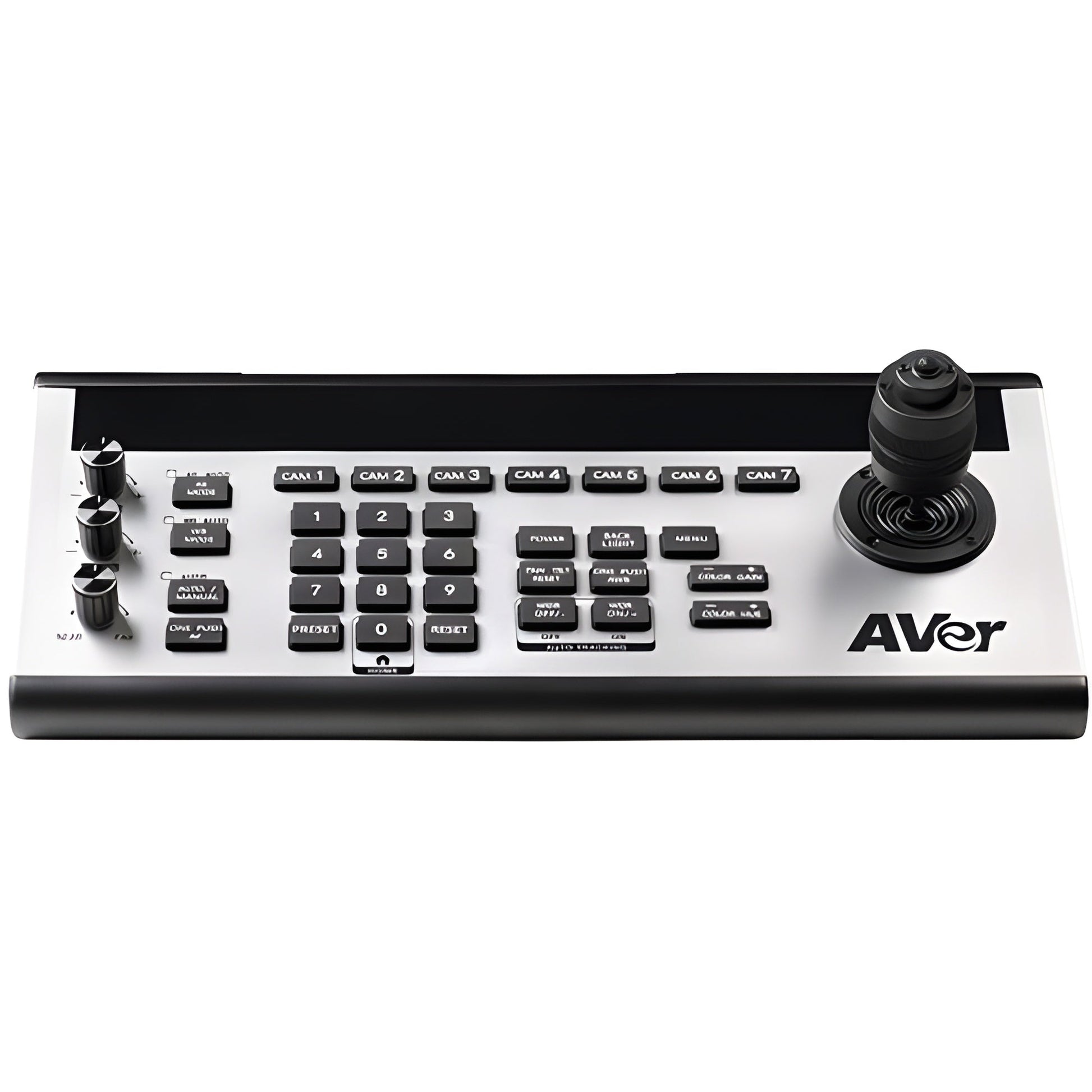

AVer CL01 Professional PTZ camera controller - CL01
Take control of your videoTake control of your productions like a pro with this robust and intuitive solution to manage your video capture and broadcast needs. The CL01 is compatible with all AVer Auto Tracking and PTZ cameras and a variety of other brands. With a simple configuration to manage up to 7 cameras, the CL01 provides the power of a mini studio on your desk.
An all-in-one controller to meet your unique production needs
Features
- Pan/Tilt/Zoom Speed Control
- Operate 7 PTZ Cameras
- 3 Infinite Rotation Knobs
- Multiple Control Interfaces
- VISCA Pelco-D/P Protocols
-

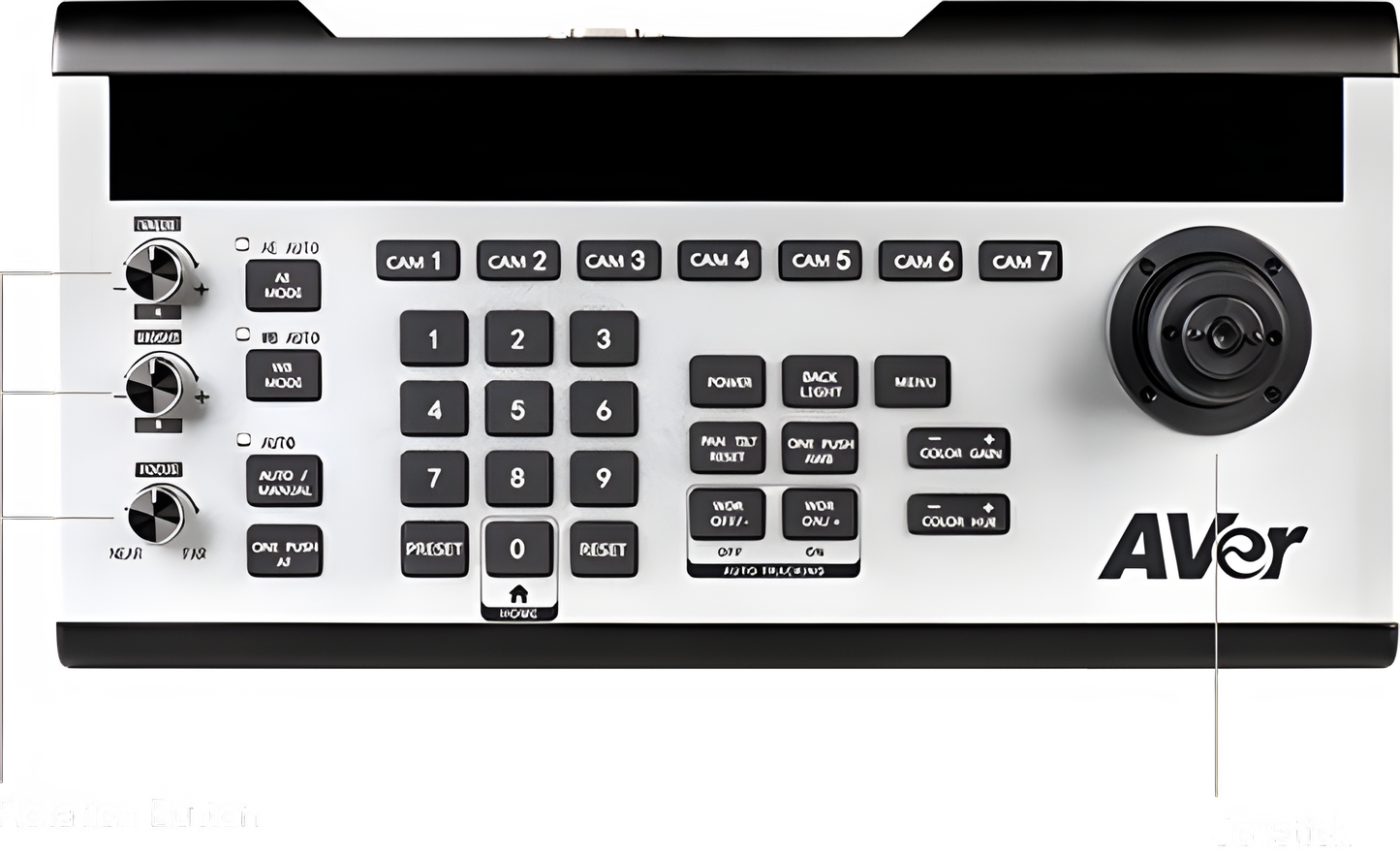

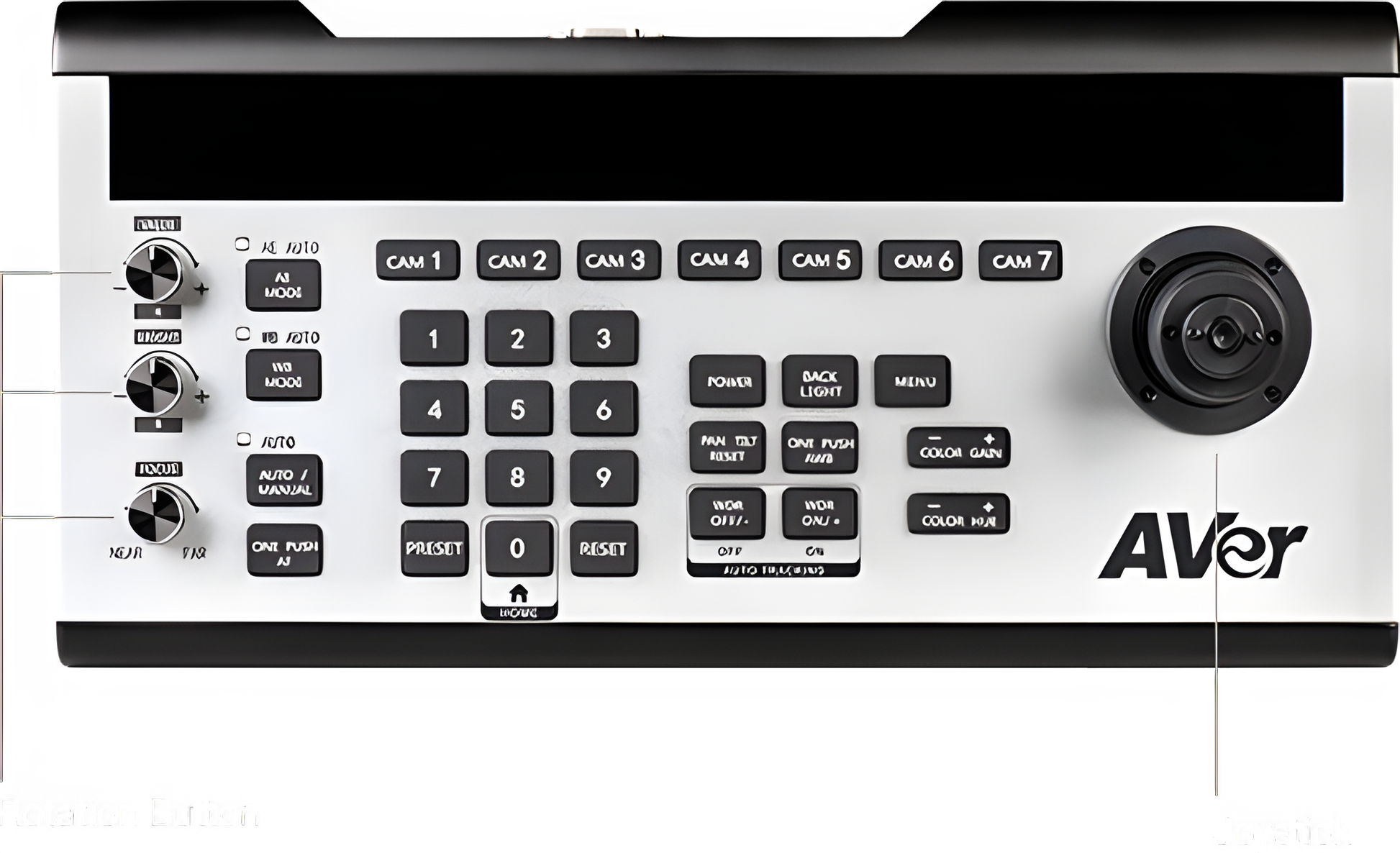

Easy to use joystick for pan/tilt/zoom control
-
Manage multiple cameras to deliver big production experiences
-
Intuitive control buttons with preset functions
-
Adjust brightness, color and focus on the fly
- Simple management for any camera operator
- Smart, light and portable wherever you need it
What our Expect Think
-
Seamless PTZ Control: Effortlessly manage multiple AVer PTZ cameras with precision.
-
Intuitive Joystick Operation: Smooth pan, tilt, and zoom functions for professional-grade control.
-
Preset Functionality: Save and recall camera positions instantly for efficiency.
-
Multi-Camera Support: Controls up to 7 cameras via VISCA over IP, RS-232, or RS-422.
-
Customizable Buttons: Assign frequently used functions for quick access.
-
Compact & Durable Design: Built for reliability in live productions, conferences, and broadcasts.
Q&A
Q: What is the AVer CL01?
A: The AVer CL01 is a professional PTZ camera controller designed for precise and seamless control of multiple PTZ cameras, supporting both AVer and third-party brands.
Q: How many cameras can the CL01 control?
A: It can manage up to 255 PTZ cameras over IP and provides 7 camera shortcut channels for quick access.
Q: What control interfaces does the CL01 support?

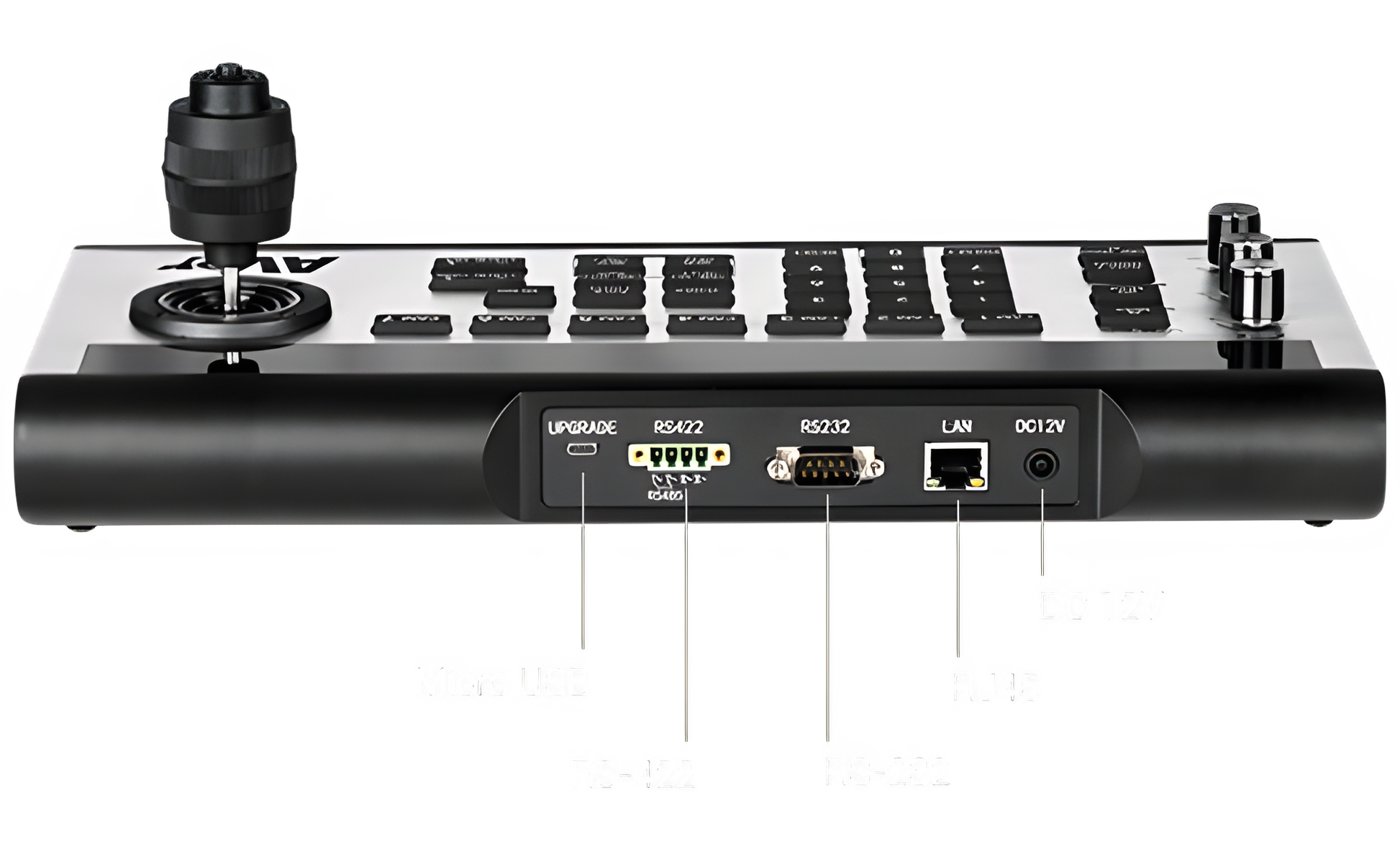

A: It supports RS-485, RS-422, RS-232, IP, and includes a Micro USB port for firmware upgrades.
Q: What protocols are compatible with the CL01?
A: The controller is compatible with VISCA, Sony VISCA, Pelco-D, Pelco-P, UDP, and IP (VISCA over IP) protocols.
Q: What are the physical dimensions and weight of the CL01?
A: The controller measures 173 mm (W) x 99 mm (H) x 350 mm (D) and weighs approximately 2.5 kg.
Q: What are the power requirements for the CL01?
A: It operates on DC 12V/2A or AC 100â240V, consuming up to 24W of power.
Q: What is included in the CL01 package?
A: The package includes the CL01 controller, a power adapter, and a 4-pin RS-485 terminal adapter.
Q: What is the operating temperature range for the CL01?
A: The controller functions optimally within a temperature range of 0°C to 40°C (32°F to 104°F).
Maintenance Tips
-
Keep Firmware Updated â Ensure compatibility and optimal performance.
-
Clean Buttons & Joystick Gently â Use a microfiber cloth; avoid liquid cleaners.
-
Secure Power & Network Cables â Prevent disconnections and interruptions.
-
Store in a Dust-Free Environment â Keep ports and buttons free from debris.
-
Avoid Excessive Force â Use smooth movements to extend joystick lifespan.
-
Ensure Proper Ventilation â Prevent overheating by keeping air vents clear.
-
Check Connectivity Regularly â Verify network and control signal stability.
