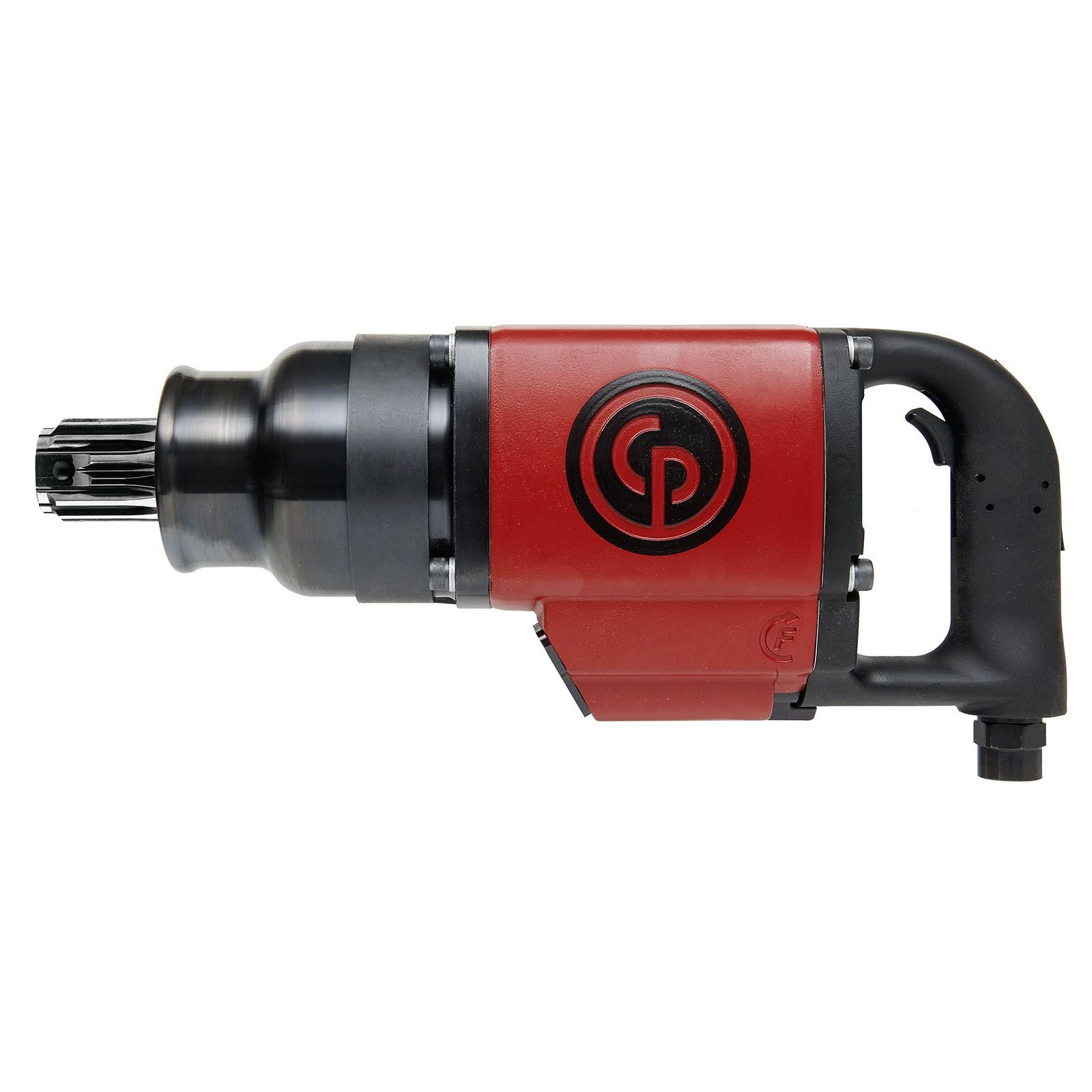

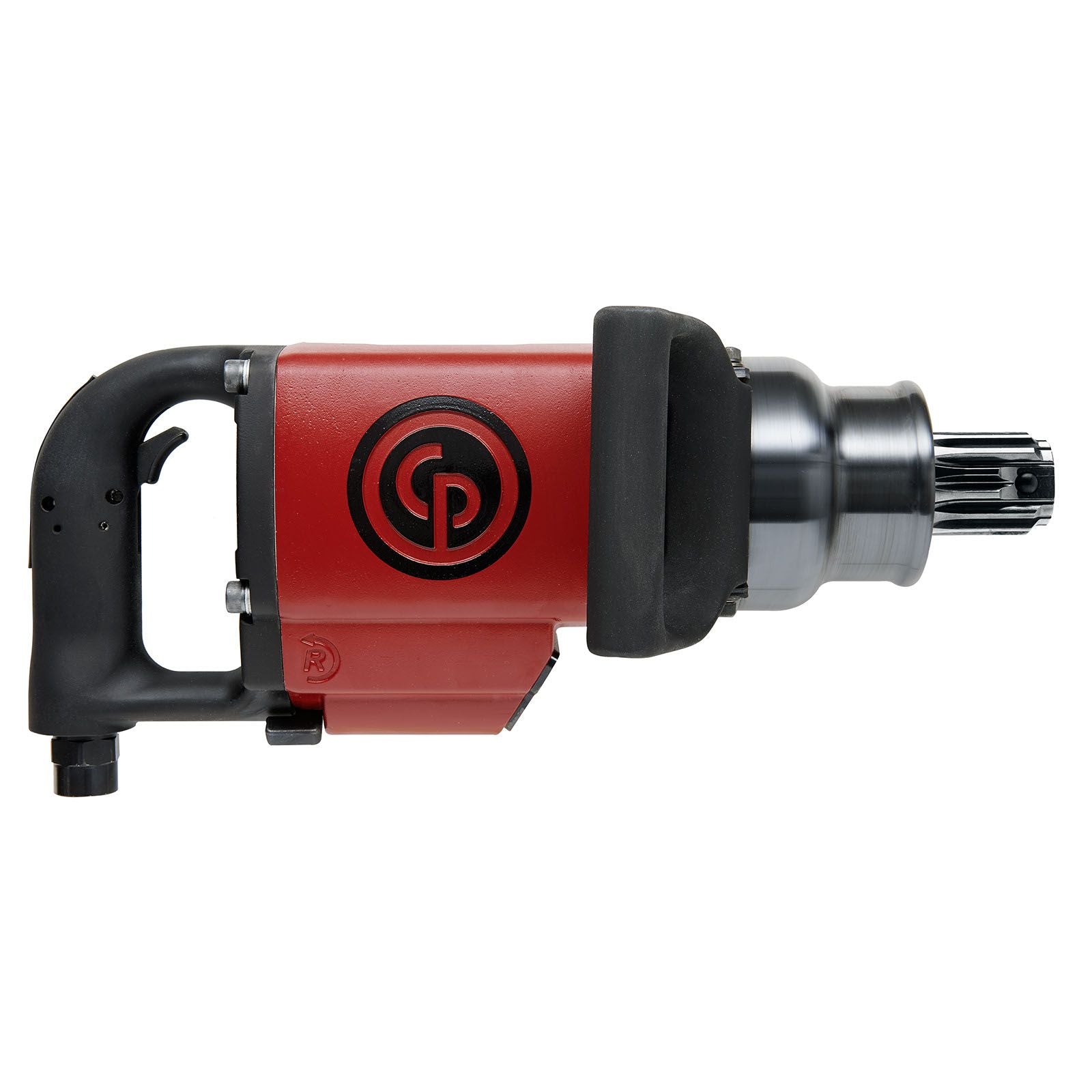

CHICAGO PNEUMATIC #5 Spline D-Handle Pneumatic Impact Wrench - CP6120-D35L

CHICAGO PNEUMATIC #5 Spline D-Handle Pneumatic Impact Wrench - CP6120-D35L

Improve assembly quality with this 1-12"/#5 impact wrench. With a heavy-duty 2-jaw clutch mechanism, an aluminium body, and a steel clutch housing, this tool is designed for comfort and durability. Delivers reverse torque up to 4,880 Nm / 3,600 ft.lb. The CP6120 series is based on 2 models, hole or spline socket retainer.

Specifications

What our Experts Think

• Engineered for super‑industrial fastening and break‑away torque in heavy maintenance and production environments, with up to 3,600 ft·lbs / 4,880 Nm reverse torque.

• #5 spline drive delivers tighter socket contact and better torque transfer compared with standard square drives.

• 2‑jaw clutch mechanism provides smooth, progressive power for both hard and soft joint applications.

• Robust build with steel clutch housing and lightweight aluminum body maximizes durability while reducing fatigue.

• Adjustable side handle and ergonomic D‑handle improve comfort and control in prolonged or heavy‑use tasks.

• 3500 RPM free speed and efficient impact design support faster run‑down and consistent performance in demanding jobs.

Q&A

Q: What is the Chicago Pneumatic CP6120‑D35L?
A: The CP6120‑D35L is a #5 spline D‑handle pneumatic impact wrench from Chicago Pneumatic, designed for robust industrial fastening and heavy‑duty applications.

Q: What applications is this impact wrench intended for?
A: It’s suited for industrial maintenance, construction, fabrication, mining, and heavy equipment service where high torque is required.

Q: What power source does this tool use?
A: It operates on compressed air (pneumatic), making it appropriate for professional and industrial environments.

Q: What drive interface does it use?
A: This model uses a #5 spline drive for compatibility with spline sockets and accessories.

Q: Is this tool suitable for professional use?
A: Yes. It is built for continuous professional and industrial‑grade performance under demanding conditions.

Maintenance Tips

• Daily oiling: Put a few drops of air tool oil in the air inlet before use to lubricate internal parts.

• Clean, dry air supply: Use filtered, moisture‑free compressed air to protect internal components.

• Correct hose size: Choose the recommended air hose diameter for steady airflow and peak performance.

• Inspect regularly: Check hammer mechanism, spline drive, seals, and fasteners for wear; replace worn parts.

• Disconnect before service: Shut off and relieve air pressure before maintenance or cleaning.

• Proper storage: Wipe the tool clean and store in a dry place to prevent corrosion.
