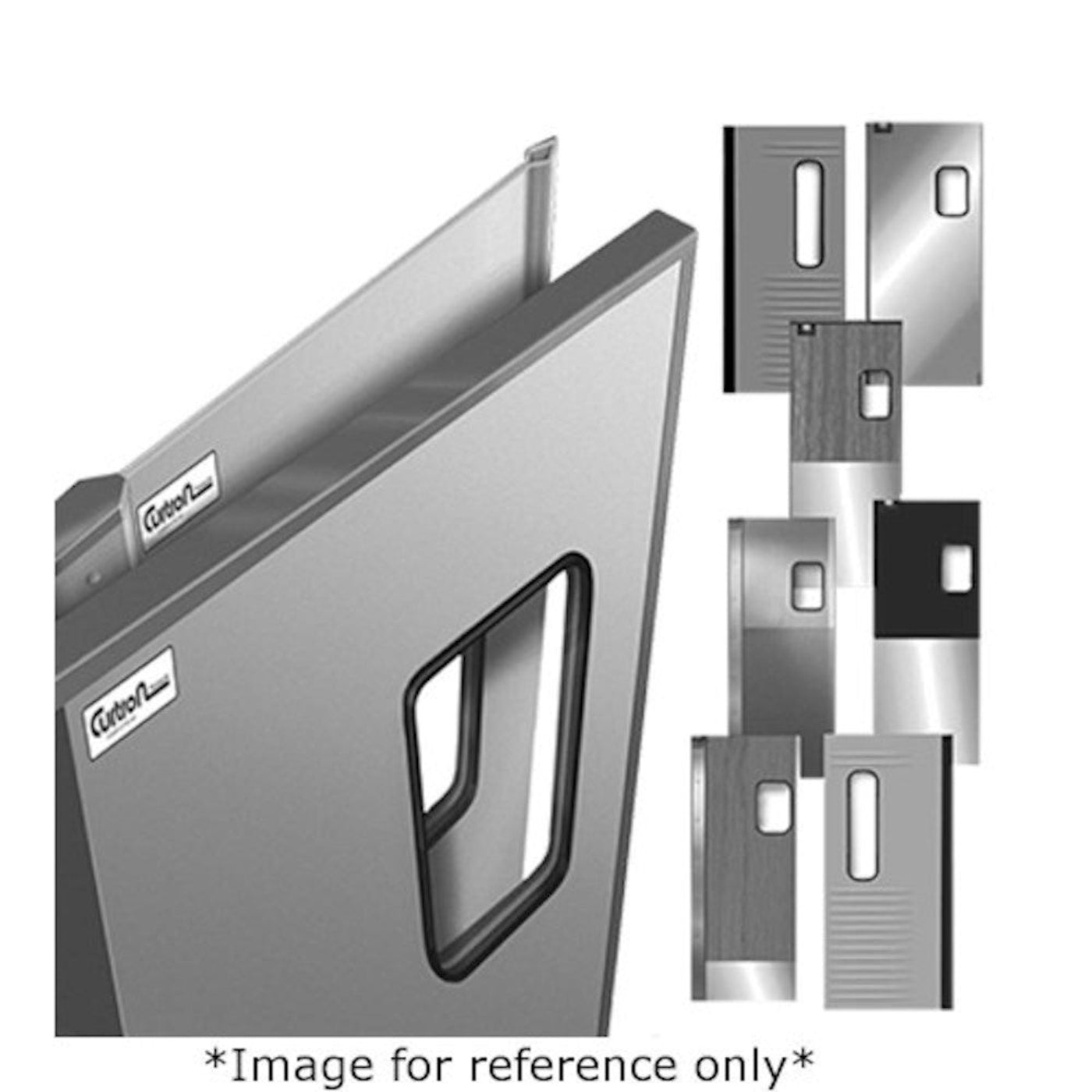

The Curtron SPD-30-SS-GK-DBL-7284 Swing Door is ideal for separating dining areas from kitchen areas. It reduces noise and, thereby, increases customer satisfaction. It has a durable 18 gauge stainless steel exterior and 0.750" exterior grade wood core. It has a full perimeter gasket. The SPD-30-SS-GK-DBL-7284 Swing Door has two 36" x 84" door panels and two 9" x 14" clear windows. It includes a hinged assembly and bottom pin.

Features

• (2) 36" wide x 84" high door panels
• 18 gauge stainless steel exterior
• Full perimeter gasket
• 0.750" exterior grade wood core
• (2) 9" x 14" clear windows
• No kickplate / impact plate
• Hinged assembly and bottom pin

Specifications

• Model: SPD-30-SS-GK-DBL-7284
• Dimensions: 84" H x 72" W
• Approximate Weight: 236 lbs.

What our Experts Think

• Ideal Size (72″ × 84″) — Provides wide access for carts and personnel without requiring oversized framing.

• Robust Construction — Service‑Pro Series 30 design with 18‑gauge stainless steel exterior and 0.750″ wood core ensures durability in high-traffic areas.

• Full‑Perimeter Gasket Seal — Improves noise control and separation between service and traffic zones.

• Visibility to Enhance Safety — Each panel includes a 9″ × 14″ clear window, improving sightlines and reducing collision risk.

• Efficient Two‑Way Flow — Double-swing panels enable smooth movement of staff and carts in both directions, enhancing workflow.

Q&A

Q: Does the door include a frame?
A: No, the standard unit is supplied without a frame; frames must be ordered separately or confirmed with the manufacturer.

Q: Is the door fire‑rated?
A: No, this door is not fire‑rated and is not intended for use where a fire‑rated assembly is required.

Q: What windows are included?
A: Each panel comes with a clear viewing window sized approximately 9" × 14".

Q: What is the panel configuration?
A: The “DBL” designation means it has two swing panels; for the 72" width model, each panel is approximately 36" wide × 84" high.

Q: What should I check on site before installation?
A: Confirm the rough opening is 72" wide by 84" high, ensure clearance for double‐swing operation, and verify the surrounding structure can support the weight (approx. 236 lbs) and hardware.

Q: What surface finish is provided?
A: The “SS” model has an 18‑gauge stainless steel exterior for corrosion resistance and hygiene.

Q: What core material is used in this Series 30 model?
A: It uses a 0.750" exterior grade wood (composite) core designed for medium‑duty use.

Q: Is a kickplate or impact plate included?
A: In this particular specification (SS‑GK‑DBL‑7284) the standard unit does not include a kickplate or impact plate unless specified otherwise.

Maintenance Tips

• Clean regularly: Wipe stainless steel and vinyl panels with mild soap and warm water to remove dirt and grease.

• Inspect hardware monthly: Check hinges, bolts, and mounting plates; tighten or adjust as needed.

• Lubricate moving parts: Apply silicone spray or light oil to hinge pins and pivot points every 3–6 months.

• Check alignment & seals: Ensure doors close evenly for safety, energy efficiency, and hygiene.

• Avoid harsh chemicals: Use non-abrasive cleaners to protect stainless steel and vinyl surfaces.
