EDWARDS Heavy-Duty Gauging Table Kit - ED9-AC0903

EDWARDS Heavy-Duty Gauging Table Kit - ED9-AC0903

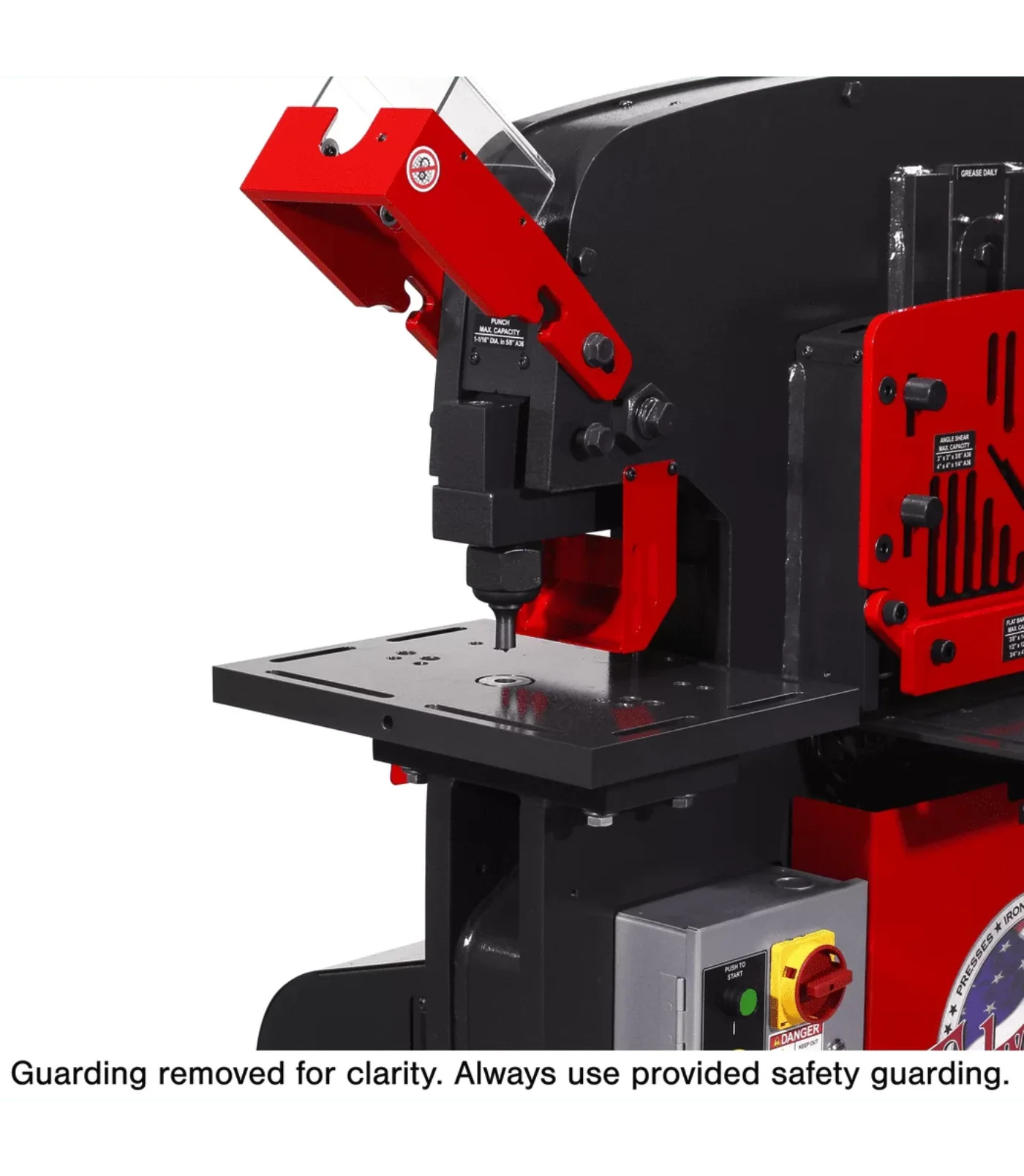

The 1" x 12" x 16" Standard Pedestal Die table to add speed and precision to your Punch Workstation. Compatible with the Edwards 40, 50, 55, 60, 65, 75, and 100 Ton Ironworkers. Gauging table kit includes adjustable fences and handles to quickly and easily guide your material for repeatable punching.

Features

• 1" x 12" x 16" Table adds speed and precision to your punch workstation.
• Adjustable fences and handles quickly and easily guide your material for perfect repeatable actions.
• Gauging table kit replaces Standard Pedestal Die Table on 40, 50, 55, 60, 65 75, and 100 Ton Edwards Ironworkers.

What our Experts Think

• Boosts punching precision and repeatability
  The EDWARDS Heavy‑Duty Gauging Table Kit (ED9‑AC0903) adds a robust 1" × 12" × 16" work surface with adjustable fences, making alignment and repeatable punching far easier — especially on structural materials.
• Designed for industrial ironworker stations
  Engineered to replace the standard pedestal die table on 40T–100T Edwards ironworkers, it integrates seamlessly into existing punching workflows.
• Heavy‑duty, dependable build
  Built with a strong table top and clamps that hold material in place, it’s rugged enough for frequent shop use and helps reduce material movement during operations.
• Guided material handling improves accuracy
  Movable fences and handles quickly position stock for each punch cycle — helping reduce setup time and operator variability.
• Supports larger and repeat jobs
  Ideal for production environments where consistency and throughput matter, this kit helps maintain precision across multiple pieces and batches

Q&A

Q: What is the EDWARDS Heavy‑Duty Gauging Table Kit (ED9‑AC0903)?
A: A reinforced gauging table accessory that enhances punch station precision and workflow efficiency on medium‑to‑large ironworkers.

Q: What size and configuration is the table?
A: It features a 1" × 12" × 16" heavy‑duty table that replaces the standard pedestal die table for improved material support.

Q: Which machines is it compatible with?
A: Compatible with Edwards 40 T to 100 T ironworkers (40, 50, 55, 60, 65, 75, 100 ton models), broadening its applicability across fabrication setups.

Q: How does this kit improve punching accuracy?
A: Adjustable fences and handles guide material consistently to the same punch location, delivering repeatable, precise holes and reducing setup time.

Q: What’s included in the kit?
A: Includes the heavy‑duty table, mounting plate, hardware, and both short and long movable fences for flexible material positioning.

Q: Why upgrade to this kit?
A: It boosts productivity by increasing precision, repeatability, and ease of material control — a must for fabrication shops focused on quality and efficiency.

Q: Who should use this product?
A: Ideal for metal fabricators, weld shops, and industrial workshops with mid‑to‑high‑capacity ironworkers seeking consistent punching results.

Maintenance Tips

• Keep Surface Clean: Remove metal shavings, dust, and oil after each use to preserve precision.
• Inspect Regularly: Check for cracks, warping, or misalignment, especially after heavy-duty operations.
• Lubricate Adjustable Parts: Apply light oil to fences, handles, and moving guides for smooth, accurate positioning.
• Tighten Hardware: Periodically secure bolts, clamps, and mounting components to maintain stability.
• Protect from Corrosion: Store in a dry area and apply anti-rust coating if exposed to moisture.
• Verify Alignment: Recheck fences and gauges to ensure consistent, repeatable measurements.
