EDWARDS Heavy-Duty Gauging Table Kit For Oversize Punch Assembly 100 Ton Deluxe Ironworkers - ED9-AC0906

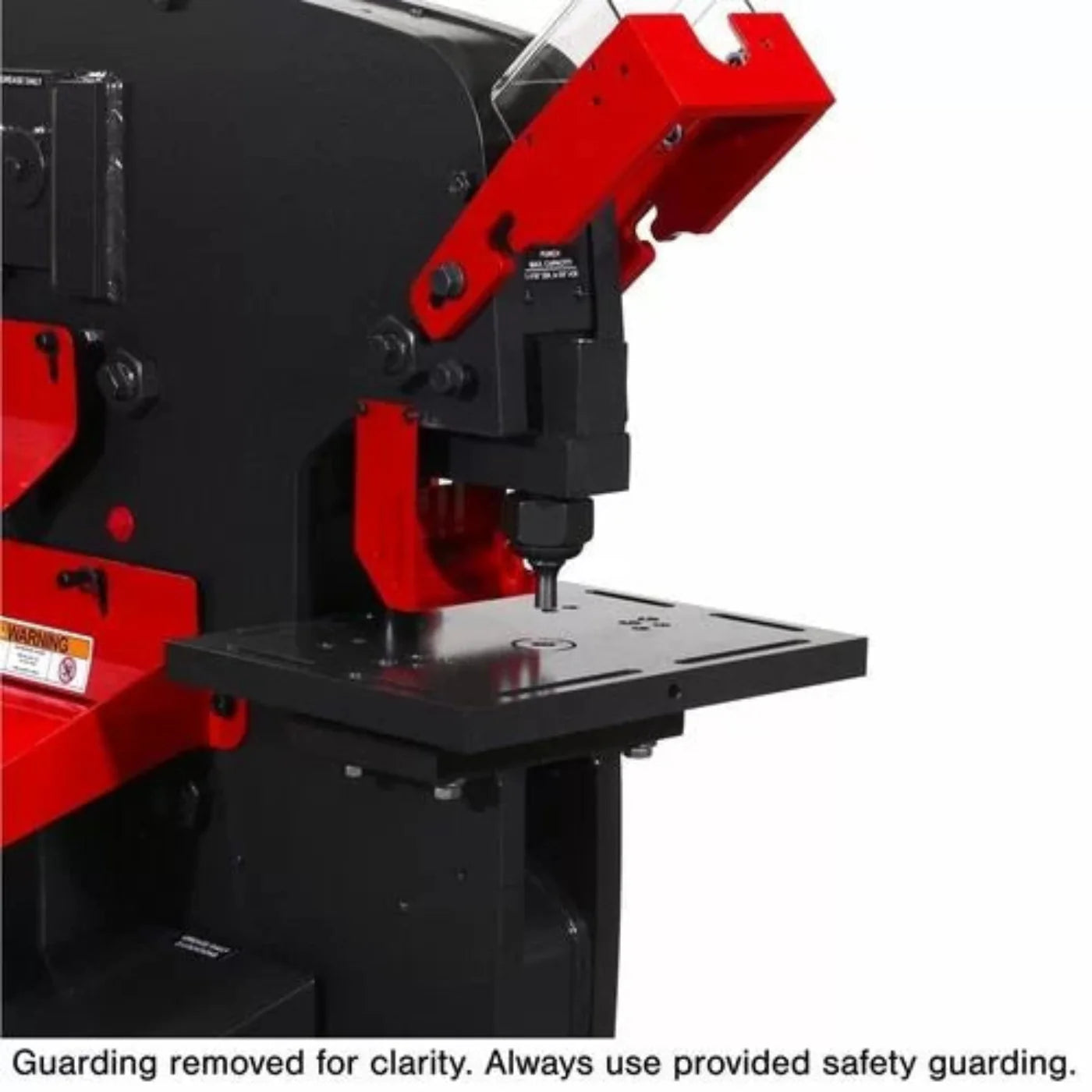

The 1" x 12" x 16" table replaces your installed Die table to add speed and precision to your Punch Workstation. Compatible with the Edwards 100 Ton Deluxe Ironworker. Includes adjustable fences and handles to quickly and easily guide your material for perfect repeatable actions.
Features
- 1" x 12" x 16" Table adds speed and precision to your punch workstation.
- Adjustable fences and handles quickly and easily guide your material for perfect repeatable actions.
- Replaces installed Die Table on 100 Ton Deluxe and 120 Ton Edwards Ironworkers.
- Induction hardened for increased strength.
- Tooth matched at the weld to eliminate blade ticking.
What our Experts Think
- Enhances punching accuracy and consistencyâideal for repeatable, high-precision hole placement
- Heavy-duty gauging table design improves workflow speed and production efficiency
- Features adjustable fences and handles for precise material positioning and reduced operator error
- Built with industrial-grade, induction-hardened construction for long-lasting durability
-
Seamless integrationâreplaces standard die table and fits 100 Ton Deluxe ironworkers
- Optimized for oversize punch applications and heavy material handling
- Provides a stable, controlled work surface for safer and more accurate operations
- Best suited for fabrication shops and high-volume punching tasks
Q&A
Q1: What is the EDWARDS ED9-AC0906 Gauging Table Kit used for?
A: It provides a stable, precision-aligned work surface for accurate positioning of materials during punching operations on ironworkers.
Q2: Which machines is this kit compatible with?
A: It is designed for EDWARDS 100 Ton Deluxe and 120 Ton Ironworkers, and also supports multiple tonnage models (40â110 ton, 2014+).
Q3: What are the key dimensions of the table?
A: The table measures 1" x 12" x 16", offering a compact yet durable work surface for punching tasks.
Q4: How does this kit improve accuracy?
A: It includes adjustable fences and handles that guide material into consistent positions, ensuring repeatable and precise hole punching.
Q5: Can it replace an existing component?
A: Yes, it replaces the standard die table on compatible ironworkers to enhance speed and precision.
Q6: Is it suitable for heavy-duty industrial use?
A: Absolutelyâits induction-hardened construction increases strength and durability for demanding fabrication environments.
Q7: What comes included in the kit?
A: The package includes the heavy-duty table, mounting hardware, and movable fences (short and long) for flexible material positioning.
Q8: Does it support repeatable production work?
A: Yes, the gauging system eliminates guesswork and ensures consistent, repeatable punching resultsâideal for production workflows.
Q9: What industries benefit from this accessory?
A: It is ideal for metal fabrication, structural steel work, and industrial manufacturing requiring precision punching.
Maintenance Tips
-
Keep Surface Clean & Debris-Free: Regularly remove metal chips and dust to maintain precision and prevent misalignment during punching operations.
-
Lubricate Adjustable Components: Lightly oil fences, handles, and moving hardware to ensure smooth positioning and repeatable accuracy.
-
Inspect Fences & Fasteners: Check adjustable fences and mounting bolts for tightnessâloose components reduce accuracy and repeatability.
-
Check Table Alignment: Ensure the table remains properly aligned with the punch station for consistent hole placement and precision work.
-
Monitor Surface Wear: Inspect the induction-hardened table surface for wear or scoring to maintain long-term durability and accuracy.
-
Prevent Corrosion: Store in a dry environment and apply rust protection when not in use to preserve the heavy-duty steel construction.
-
Verify Installation Fit: Periodically confirm secure installation on compatible 100-ton or 120-ton ironworkers to avoid vibration or shifting.
