EDWARDS Oversize Punch Assembly For 40-100 Ton Ironworkers - ED9-AC1024

EDWARDS Oversize Punch Assembly For 40-100 Ton Ironworkers - ED9-AC1024

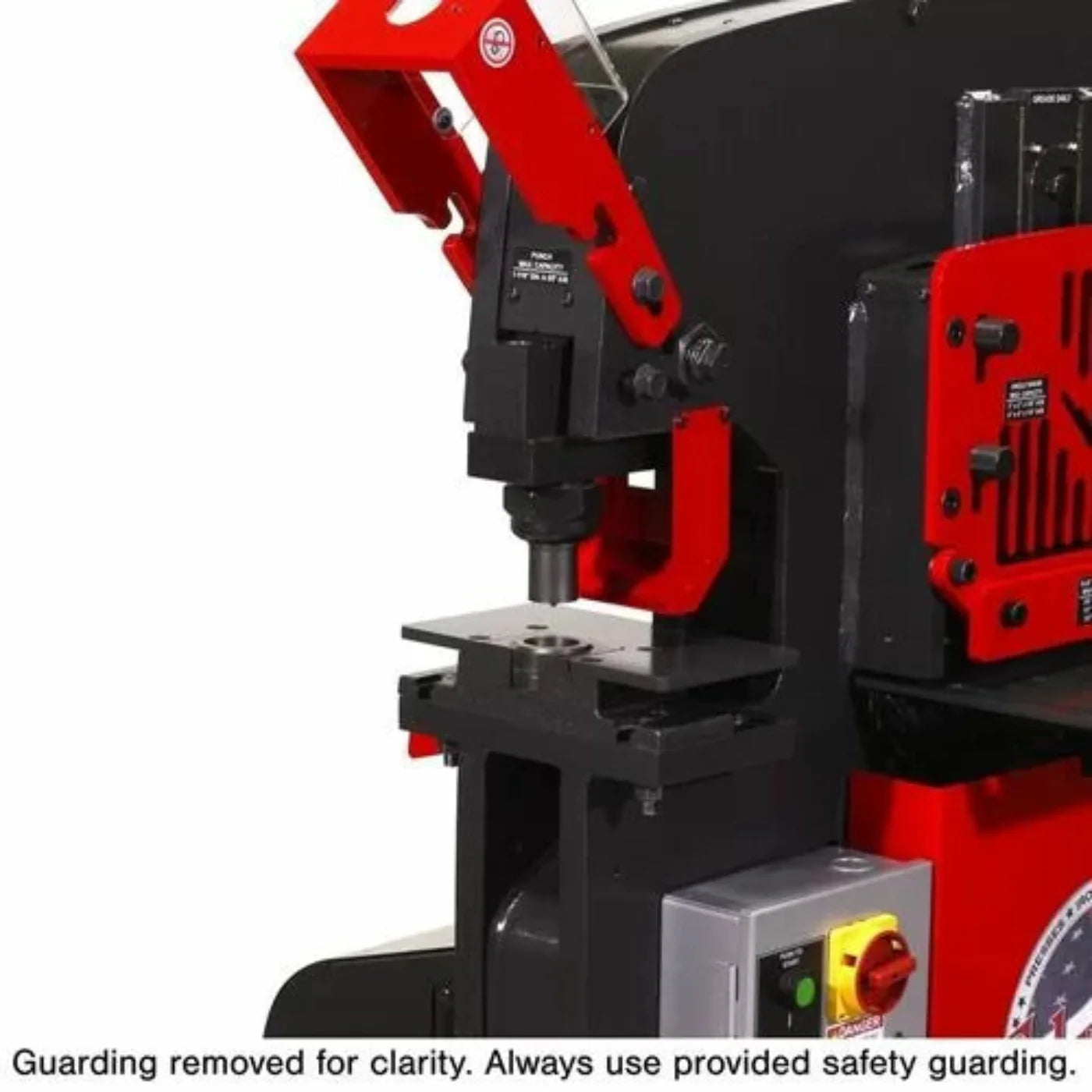

The Oversize Punch Assembly accommodates punch & die sets in various shapes and sizes from 1" up to 1-9/16". Replaces Standard Punch Assembly or can be used as a secondary Punch Workstation.

Features

• Fits Edwards 40-100 Ton and Elite Ironworkers.
• Replaces Standard Punch Assembly or can be used as a secondary Punch Workstation.
• Requires Oversize Punch & Die sets (contact Edwards for pricing and availability).
• Accommodates punch & die sets in various shapes and sizes from 1" up to 1-9/16".

What our Experts Think

• Expands your ironworker’s punching range
  The EDWARDS Oversize Punch Assembly for 40‑100 Ton Ironworkers (ED9‑AC1024) lets you handle oversized punch & die sets from 1″ up to 1‑9⁄16″, significantly broadening hole‑making capability compared with standard punch stations.
• Fits a wide range of ironworkers
  Designed to work with 40 T through 100 T and Elite series Edwards ironworkers, this assembly is a versatile upgrade for production shops with multiple machines.
• Use as main or secondary workstation
  You can replace the standard punch assembly or install it as a secondary punching station, enabling faster job changeovers and less downtime.
• Ideal for structural and heavy plate work
  Supports larger diameter holes and shapes often needed in structural steel fabrication, architectural projects, and heavy material applications.
• Durable, industrial‑grade construction
  Built to withstand repeated cycles in busy fabrication environments and maintain alignment for consistent results.
• Requires oversize tooling
  To unlock its full potential, pair with oversize punch & die sets appropriate for your application (sold separately).

Q&A

Maintenance Tips

• Clean After Each Use: Remove metal shavings, dust, and oil to maintain sharp punch edges and accurate oversize holes.
• Inspect for Wear: Check punch and die for chips, cracks, or deformation; replace or sharpen as needed.
• Lubricate Moving Parts: Apply light oil to guides and moving components to reduce friction and prevent corrosion.
• Verify Alignment: Ensure punch and die are properly seated to avoid uneven wear or tool damage.
• Use Within Rated Capacity: Operate only within the 40–100 ton range to prevent breakage or overstress.
• Secure Hardware: Tighten bolts, clamps, and mounting components to maintain stability.
• Protect from Rust: Store in a dry environment and lightly oil steel surfaces to prevent corrosion.
