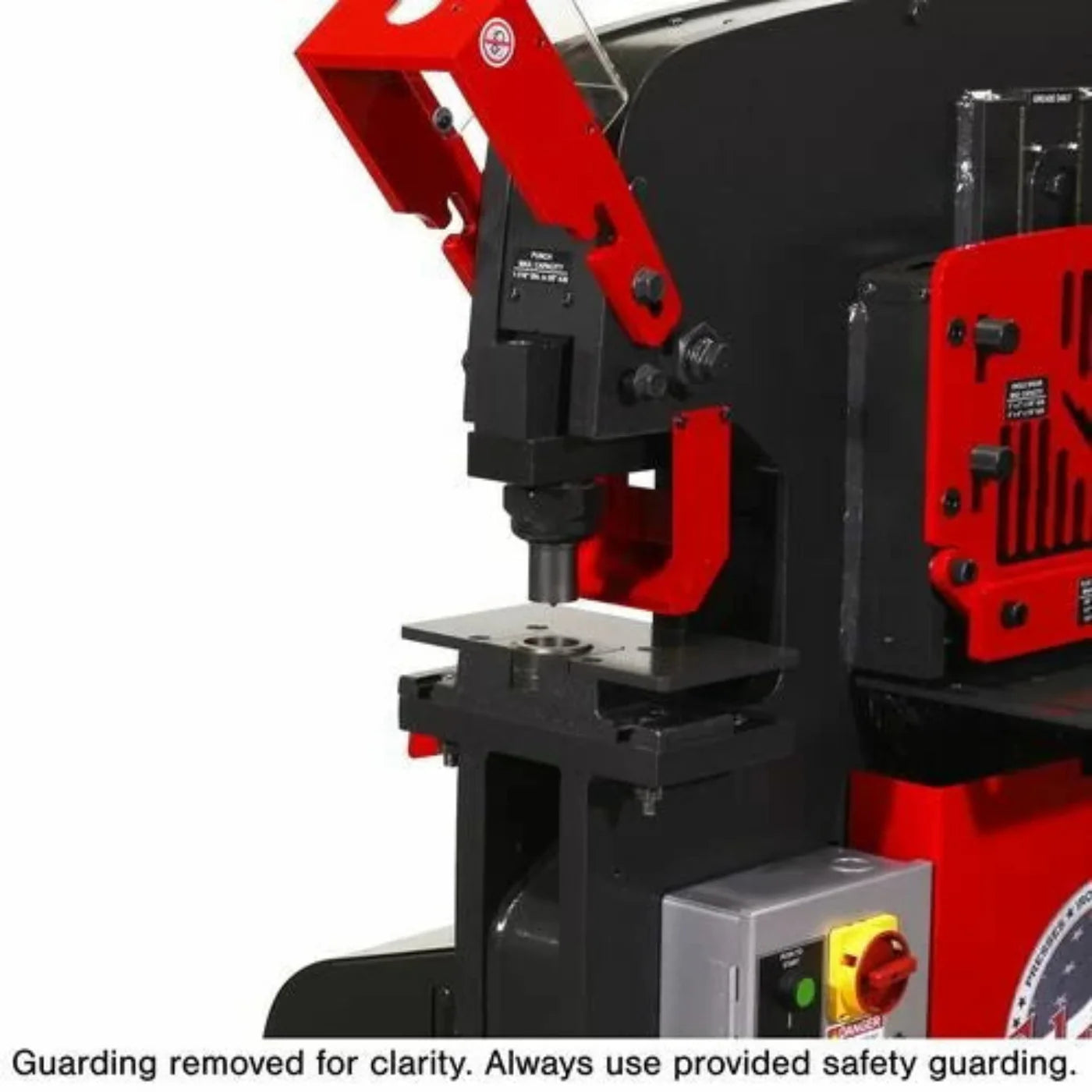

EDWARDS Oversize Punch Assembly For 40 Ton Ironworkers (2013 & Older) - ED9-AC1024-S1
The Oversize Punch Assembly accommodates punch & die sets in various shapes and sizes from 1" up to 1-9/16". Replaces Standard Punch Assembly or can be used as a secondary Punch Workstation.
Features
- Fits Edwards 40 Ton Ironworkers.
- Fits Edwards 40 Ton Ironworkers (2013 and prior).
- Replaces Standard Punch Assembly or can be used as a secondary Punch Workstation.
- Requires Oversize Punch & Die sets (contact Edwards for pricing and availability).
- The Oversize Punch Assembly accommodates punch & die sets in various shapes and sizes from 1" up to 1-9/16".
What our Experts Think
-
Designed for oversized punching on legacy ironworkers
The EDWARDS Oversize Punch Assembly For 40 Ton Ironworkers (2013 & Older) – ED9‑AC1024‑S1 expands the capability of older 40 ton units by accommodating larger punch & die shapes from 1″ up to 1‑9/16″ — far beyond standard punch capacity.
-
Versatile upgrade or secondary workstation
It can replace the standard punch assembly or serve as a secondary punching station, giving shops flexibility to switch between standard and oversize operations without changing machines.
-
Ideal for heavier, structural applications
Supports larger holes and more complex shapes used in structural fabrication, architectural steelwork, and custom jobs where standard punches fall short.
-
Rugged, precision‑made for heavy use
Built to withstand frequent cycling and heavy shop conditions, ensuring lasting performance and reliable results in demanding fabrication environments.
-
Direct retrofit for older Edwards models
Specifically engineered to bolt onto 2013 and older Edwards 40 ton ironworkers, offering a cost‑effective capability boost without buying a new machine.
-
Great foundation for larger tooling setups
Works with a wide range of oversize punch & die sets (sold separately), letting you build out a comprehensive tooling suite for big‑hole punching.
Q&A
**Q: What is the EDWARDS Oversize Punch Assembly (ED9‑AC1024‑S1)?
A: A heavy‑duty oversize punch assembly that expands the punching capacity of your Edwards 40 ton ironworker (2013 & older models). It replaces the standard punch station or adds a secondary punching workstation.
Q: What hole sizes can it accommodate?
A: It accepts oversize punch & die sets in various shapes and sizes from 1″ up to 1‑9/16″, allowing larger hole and slot punching.
Q: Which machines is it compatible with?
A: Designed specifically for Edwards 40 ton ironworkers manufactured in 2013 and prior, ensuring proper fit and performance on older models.
Q: Does the assembly include punch & die tooling?
A: No — punches and dies are sold separately; contact Edwards or an authorized distributor for options that suit your application.
Q: Why upgrade to this oversize assembly?
A: It increases versatility and productivity by enabling larger punching tasks without needing a larger machine or secondary equipment.
Q: Who should use this product?
A: Ideal for metal fabricators and industrial workshops with older 40 ton ironworkers that require expanded punching capability and precision for larger holes.
Maintenance Tips
-
Clean After Use: Remove metal shavings, dust, and oil to maintain sharp punch edges and accurate oversize holes.
-
Inspect for Wear: Check punch and die for chips, cracks, or deformation; replace or sharpen as needed.
-
Lubricate Moving Parts: Apply light oil to guides and moving components to reduce friction and prevent corrosion.
-
Verify Alignment: Ensure punch and die are properly seated in the ironworker to avoid uneven wear or damage.
-
Operate Within Capacity: Use only within the 40-ton rating to prevent breakage or overstress.
-
Secure Hardware: Tighten bolts, clamps, and mounting components to maintain stability.
-
Protect from Rust: Store in a dry environment and lightly oil steel surfaces to prevent corrosion.
