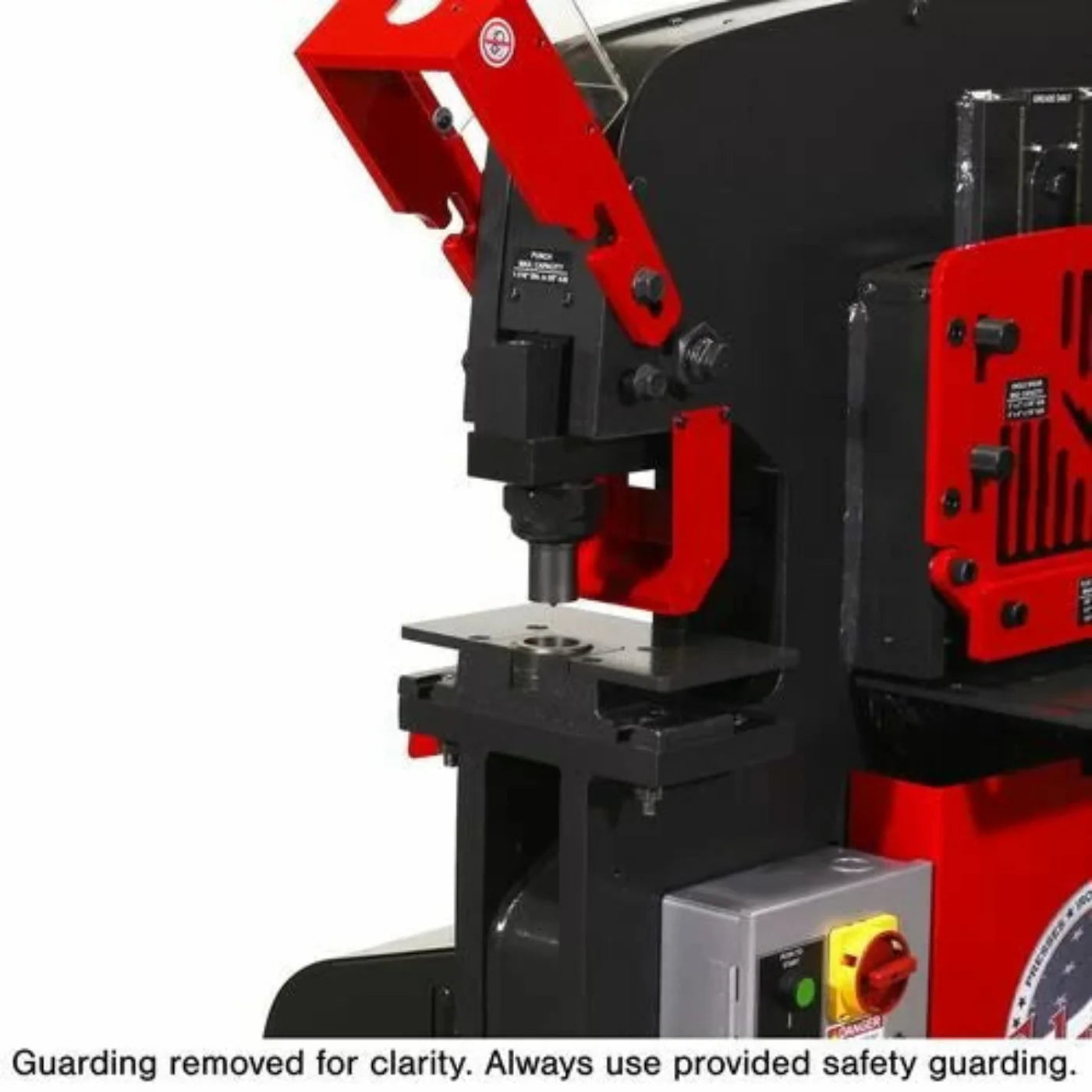

The Oversize Punch Assembly accommodates punch & die sets in various shapes and sizes from 1" up to 1-9/16". Replaces Standard Punch Assembly or can be used as a secondary Punch Workstation.

Features

• Fits Edwards 50, 55, and 60 Ton Ironworkers (2013 and prior).
• Replaces Standard Punch Assembly or can be used as a secondary Punch Workstation.
• Requires Oversize Punch & Die sets (contact Edwards for pricing and availability).
• The Oversize Punch Assembly accommodates punch & die sets in various shapes and sizes from 1" up to 1-9/16".

What our Experts Think

• Heavy‑Duty Oversize Punch Upgrade — expands the punching range on your ironworker to handle larger punches & dies (1″–1‑9⁄16″) for heavier fabrication tasks.
• Direct Fit for Older 50 T–60 T Models — engineered specifically for 50 Ton, 55 Ton, and 60 Ton Edwards Ironworkers (2013 & older), so it replaces the standard punch setup with minimal hassle.
• Secondary Workstation Option — can be installed as a backup punch station to improve workflow and reduce changeovers.
• Requires Oversize Punch & Die Sets — compatible tooling (sold separately) lets you tailor punch shapes and sizes to your material and job needs.
• Industrial‑Grade Build — rugged construction stands up to frequent shop use and demanding punching applications.
• Ideal for Larger Hole Punching — perfect for shops that need extra punching capacity without buying a new machine.

Q&A

Q1: What is the ED9‑AC1024‑S2?
A: A heavy‑duty oversize punch assembly that expands the punching capacity of older Edwards 50 T, 55 T, and 60 T ironworker machines by allowing larger punch & die tooling.

Q2: Which ironworker models is it made for?
A: Specifically designed to fit Edwards 50 Ton, 55 Ton, and 60 Ton ironworkers manufactured in 2013 or earlier.

Q3: What punching sizes does it support?
A: Accommodates **oversize punch & die sets in shapes and sizes from 1″ up to ~1‑9/16″, enabling larger hole diameters than standard punch stations.

Q4: Does it replace the existing punch station?
A: Yes — it replaces the standard punch assembly or can be added as a secondary punch workstation for more versatile use.

Q5: Does this kit include punch & die tooling?
A: No — oversize punch & die sets are required separately and must be selected based on hole size needs.

Q6: What applications is it suited for?
A: Ideal for large‑hole punching in heavy sheet, structural plate, and robust fabrication work where standard ironworker punching isn’t sufficient.

Q7: Is it rugged enough for industrial shops?
A: Yes — built with heavy construction to withstand demanding metalworking environments.

Q8: What is the physical weight of the assembly?
A: Weighs approximately 27–30 lbs, making it manageable to install or replace.

Q9: How does it improve workflow?
A: Enables larger hole punching without secondary machines, reducing setup time and increasing versatility in fabrication tasks.

Q10: What’s the main advantage of this product?
A: Expands the working range of older ironworkers, letting them handle bigger hole and die requirements without investing in new equipment.

Maintenance Tips

• Clean After Every Use: Remove metal chips and debris from the punch and die area to prevent buildup and ensure smooth oversize punching.
• Lubricate Contact Surfaces: Apply a light coat of machine oil to the punch stem, guides, and die surfaces to reduce friction and extend tool life.
• Inspect for Wear & Damage: Frequently check punches, dies, and holders for dulling, chipping, or deformation; replace worn tooling promptly for clean, accurate holes.
• Verify Alignment: After installation or tooling changes, ensure the punch lines up squarely with the die to minimize uneven wear and stress on components.
• Tighten Fasteners: Periodically check and secure all bolts and mounting hardware to maintain stability during heavy oversize punching operations.
• Prevent Corrosion: Store the assembly in a dry environment and apply rust inhibitor on exposed steel surfaces when the tool is idle.
