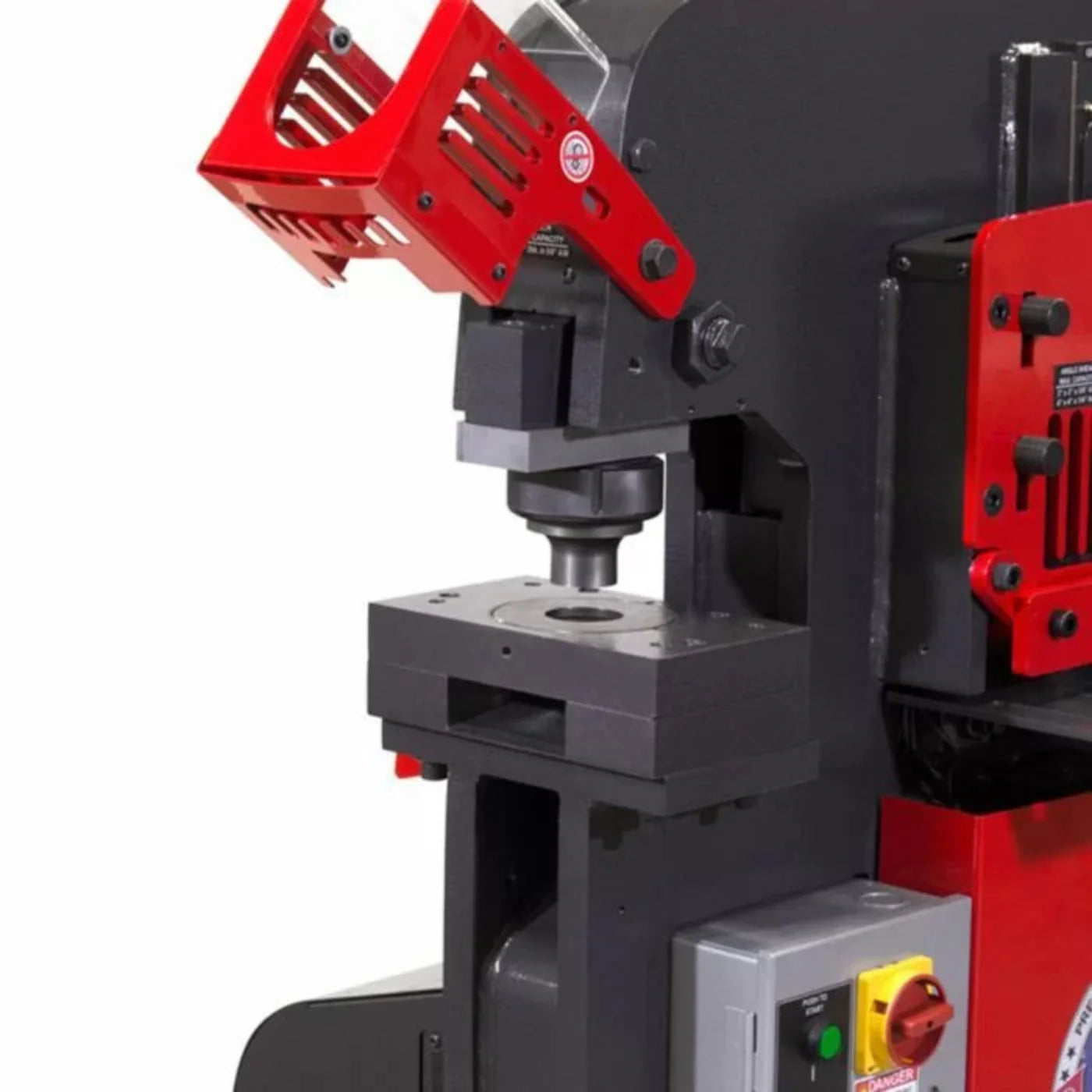

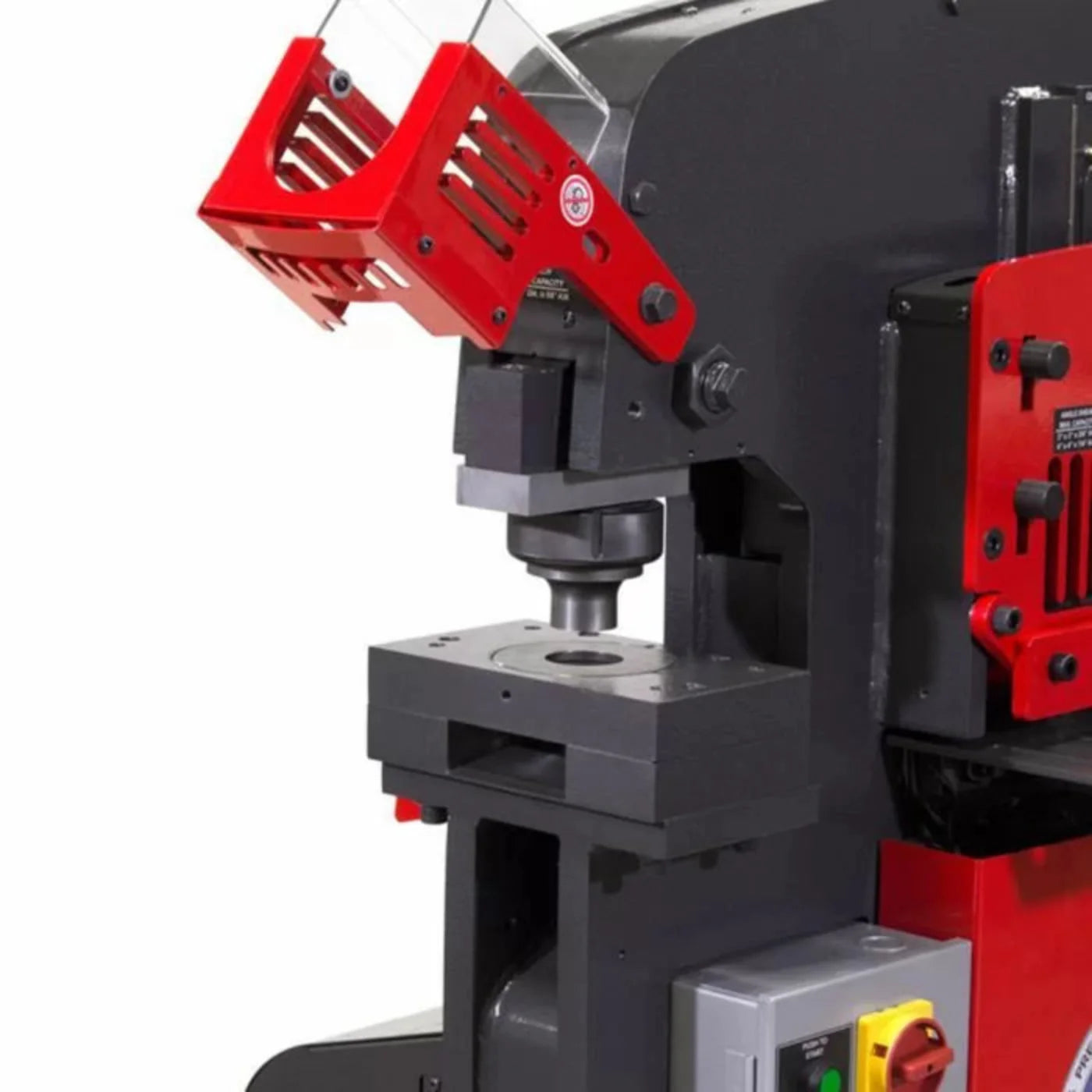

EDWARDS 241 Punch Assembly For 65 Ton Ironworkers (2013 & Older) - ED9-AC1055-S3

EDWARDS 241 Punch Assembly For 65 Ton Ironworkers (2013 & Older) - ED9-AC1055-S3

The 241 Punch Assembly accommodates punch & die sets in various shapes and sizes from 1" up to 4". Punch large holes and slots in anything from sheet metal to steel plate.

Features

• Punch large holes and slots in anything from heavy sheet metal to steel beams.
• Replaces the installed Punch Assembly on the 65 Ton Ironworkers (2013 & Prior).
• Requires 241 Punch & Die sets (contact Edwards for pricing and availability).
• 241 punch assembly accommodates punch and die sets in various shapes and sizes from 1" up to 4".

What our Experts Think

• Expanded punching capability for legacy 65 ton machines
  The EDWARDS 241 Punch Assembly (ED9‑AC1055‑S3) lets you punch larger holes and slots (1″–4″) in heavy sheet, plate, and structural steel — a major upgrade over standard punch stations on older ironworkers.
• Ideal retrofit for 2013 & earlier models
  Designed specifically to replace the factory punch assembly on 65 ton ironworkers (2013 & older), making it perfect for shops maintaining legacy equipment without sacrificing capability.
• Versatile hole & slot punching
  Accommodates a broad range of 241‑type punch and die sets (sold separately), so you can handle diverse jobs from simple holes to oblong slots with fewer tooling changes.
• Rugged, shop‑ready engineering
  Precision‑machined, hardened construction handles heavy production use and delivers consistent, clean results run after run.
• Smooth workflow & reduced downtime
  Efficient material flow and robust design help reduce setup complexity, letting operators focus on throughput and accuracy

Q&A

Maintenance Tips

• Clean After Use: Remove metal shavings, dust, and oil to maintain sharp punch edges and accurate holes.
• Inspect for Wear: Check punch and die for chips, cracks, or dullness; replace or sharpen as needed.
• Lubricate Moving Parts: Apply light oil to guides and moving components to reduce friction and prevent corrosion.
• Verify Alignment: Ensure punch and die are properly seated in the ironworker to avoid uneven wear or damage.
• Use Within Rated Capacity: Operate only within the 65-ton rating to prevent overloading or breakage.
• Tighten Mounting Hardware: Secure bolts and clamps to maintain stability and consistent punching.
• Protect from Rust: Store in a dry environment and lightly oil steel surfaces to prevent corrosion.
