EDWARDS 241 Punch Assembly For 100 Ton Deluxe Ironworkers (2013 & Older) - ED9-AC1055-S5

EDWARDS 241 Punch Assembly For 100 Ton Deluxe Ironworkers (2013 & Older) - ED9-AC1055-S5

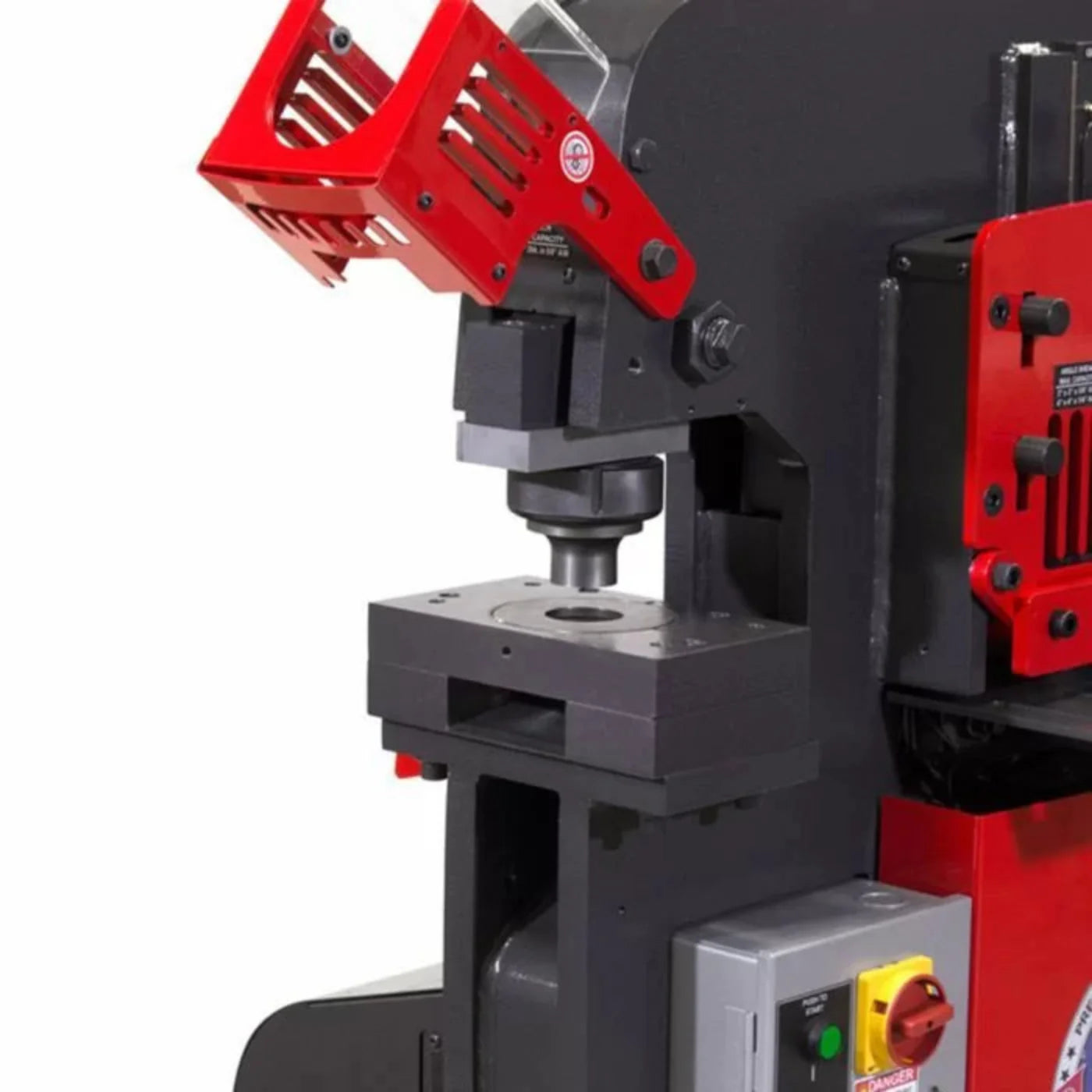

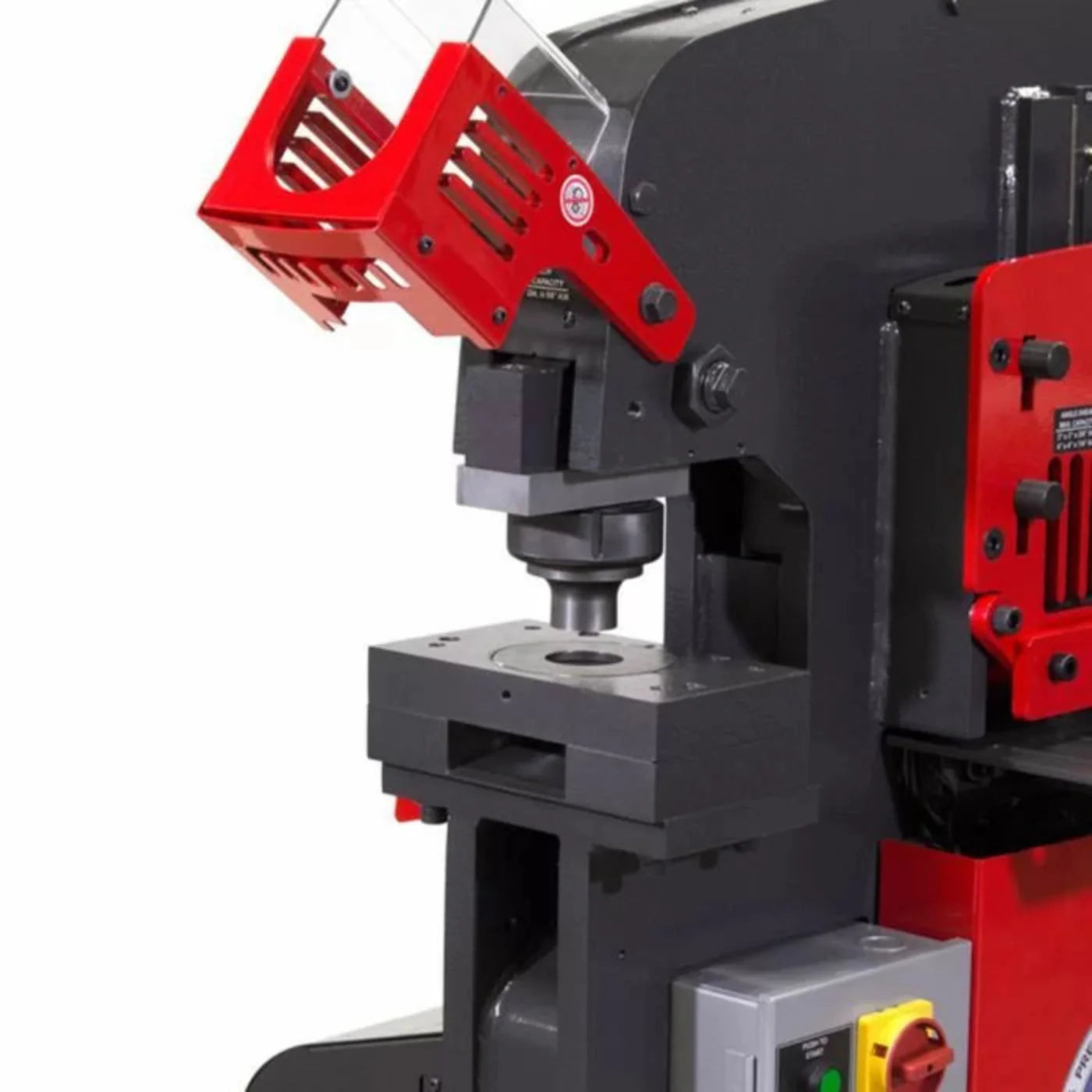

The 241 Punch Assembly accommodates punch & die sets in various shapes and sizes from 1" up to 4". Punch large holes and slots in anything from sheet metal to steel plate.

Features

• Punch large holes and slots in anything from heavy sheet metal to steel beams.
• Replaces the installed Punch Assembly on the 100 Ton Deluxe Ironworkers.
• Replaces the installed Punch Assembly on the 100 Ton Deluxe Ironworkers (2013 & Prior).
• Requires 241 Punch & Die sets (contact Edwards for pricing and availability).
• 241 punch assembly accommodates punch and die sets in various shapes and sizes from 1" up to 4".

What our Experts Think

• Precision alignment for repeat punching
  The EDWARDS Gauging Table Kit (July 2017 & Older) – ED9‑AC0902 adds a 3/8″ thick, 12″ × 16″ work surface that helps guide material accurately — ideal for repeatable punching tasks on ironworkers.
• Smooth material handling with adjustable fences
  Adjustable fences and handles let operators quickly position and clamp stock, reducing setup time and improving consistency across batches.
• Broad compatibility with earlier models
  Works with Edwards 40, 50, 55, 60, 65, 75, and 100 ton ironworkers (2017 & older) and bolts to both standard and oversize pedestal die tables, extending utility on legacy equipment.
• Heavy‑duty, shop‑ready design
  Sturdy construction withstands regular use in fabrication environments and helps keep material from shifting during punching cycles.
• Boosts productivity without complex tooling
  By simplifying alignment and repeat positioning, this kit helps reduce rework and increases throughput on punched parts.

Q&A

Maintenance Tips

• Clean After Each Use: Remove metal shavings, dust, and oil to maintain sharp punch edges and accurate holes.
• Inspect for Wear: Check punch and die for chips, cracks, or dullness; replace or sharpen as needed.
• Lubricate Moving Parts: Apply light machine oil to guides and moving components to reduce friction and prevent corrosion.
• Verify Alignment: Ensure punch and die are correctly seated in the ironworker to avoid uneven wear or tool damage.
• Use Within Rated Capacity: Operate only within the 100-ton rating to prevent overloading or breakage.
• Tighten Mounting Hardware: Secure bolts and clamps to maintain stability and consistent punching.
• Protect from Rust: Store in a dry environment and lightly oil steel surfaces to prevent corrosion.
