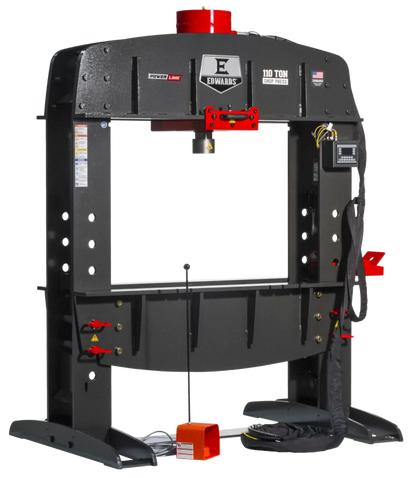

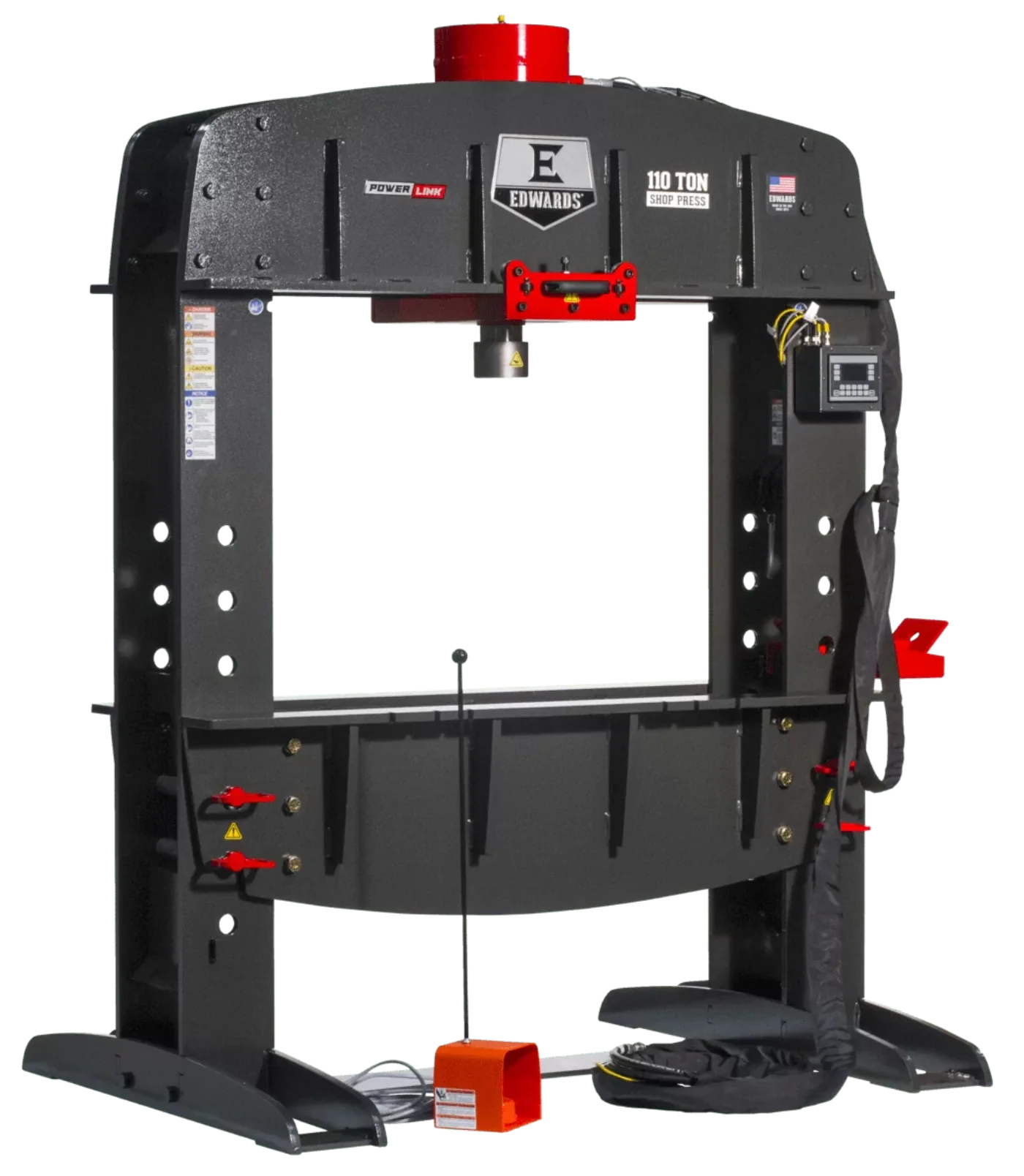

EDWARDS 110 Ton Shop Press w/ PLC & Portable Power Unit 1 Phase, 230V - ED9-HAT9060

EDWARDS 110 Ton Shop Press w/ PLC & Portable Power Unit 1 Phase, 230V - ED9-HAT9060

Our most powerful Shop Press, this 110 Ton Shop Press includes a Programmable Logic Control (PLC) to maximize your efficiency with shorter cycle times - over a 50% time savings. With the greatest capacity this Shop Press is able to accept all of our standard tooling along with custom tooling in its large work table area, the 110 Ton can press bearings, bend metal or straighten your parts. The rolling cylinder, open-sided design, and electric foot pedal make this machine simple to use. This Shop Press package includes a Portable Power Unit and is ready to PLUG IN & POWER UP.

Features

• 20' quick-connect hoses for simple "plug & play" operation.
• Accepts a variety of standard and custom tooling.
• Electric foot pedal with integrated jog control.
• Hydraulic-assist adjustable work table heights to maximize operator safety includes lift chains and bracket.
• Magnetic PLC control box mounts anywhere on the shop press for user performance and comfort.
• Open-sided design allows longer material to pass through the frame.
• Programmable Logic Control (PLC) allows operators to create repeatable actions, improving efficiency.
• Requires an Edwards Ironworker with PowerLink System or a Portable Power Unit to operate (included).
• Rolling cylinder provides maximum adaptability.

Specifications

What our Experts Think

• 110 Ton Capacity with PLC Precision — delivers consistent, programmable press cycles for repeatable results in fabrication, assembly, and straightening jobs
• Included Portable 1‑Phase 230 V Power Unit — eliminates the need for special electrical infrastructure while still driving heavy‑duty hydraulic performance
• Industrial‑Grade Durability — robust steel frame and quality hydraulics ensure stable, reliable operation under frequent use
• Enhanced Productivity with PLC Control — repeat cycles and fine control reduce setup time and operator variability
• Smooth, Controlled Pressing — precise hydraulic regulation minimizes part distortion and improves quality outcomes
• Versatile Worktable & Tooling Options — supports a wide range of dies, fixtures, and shop tasks
• User‑Friendly & Safer Operation — intuitive PLC interface and built‑in safety logic help protect operators during heavy pressing
• Ideal For: Fabrication shops, maintenance departments, and professionals needing high‑force hydraulic pressing on standard 230 V power

Q&A

Q5: What features improve usability?
A: It includes 20′ quick‑connect hoses, electric foot/jog control, hydraulic‑assist adjustable work table height, and an open‑sided frame for handling long workpieces.

Q6: Does it require additional equipment to run?
A: No — the included portable power unit supplies the hydraulic power, so it’s ready to plug in and operate without needing a separate PowerLink system.

Q7: What tooling can it use?
A: Accepts a wide range of standard and custom press tooling, expanding its versatility for various metalworking tasks.

Q8: How does the PLC help productivity?
A: The PLC allows exact repeatable actions, adjustable stroke, and pressure settings, improving precision and efficiency.

Q9: Is it suitable for heavy industrial environments?
A: Yes — built with a heavy‑duty steel frame and engineered for demanding fabrication environments.

Q10: What tasks benefit most from this press?
A: Heavy part pressing, bearing installation, metal forming, straightening components, and repetitive production jobs in metal fabrication.

Maintenance Tips

• Hydraulic Fluid & Lines: Regularly check and top up hydraulic oil; inspect hoses, seals, and quick‑connect fittings for leaks, cracks, or wear to maintain full 110‑ton performance.
• Lubrication: Grease ram guides, pivot points, and moving linkages to reduce friction and extend component life.
• PLC & Controls: Keep the PLC control box and wiring clean and dry; test jog controls and cycle functions to ensure reliable automation and repeatability.
• Electrical Safety: Verify 230 V single‑phase connections, grounding, and emergency stop systems are intact and functioning.
• Frame & Fasteners: Inspect the press frame, work table, bolts, and mounting hardware for tightness and signs of stress or damage.
• Clean Work Area: Remove metal chips, dust, and debris from the press and portable power unit to protect hydraulic and electrical systems.
• Periodic Testing: Check ram alignment and pressure response to maintain precision pressing, bending, and forming.
• Protect From Corrosion: Store in a dry environment and apply light rust inhibitor on exposed steel surfaces when idle.
