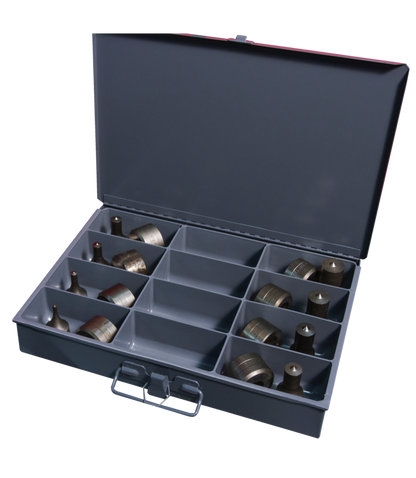

EDWARDS Punch & Die Starter Set - ED9-PD1000
Our convenient Punch & Die Starter Set is intended to cover the most common popular bolts sizes allowing you to add different sizes and shapes as your projects require.
Features
- Compatible with standard Pedestal Die Table.
- Includes 8 standard round punch & die sets selected to accommodate the most commonly used bolts.

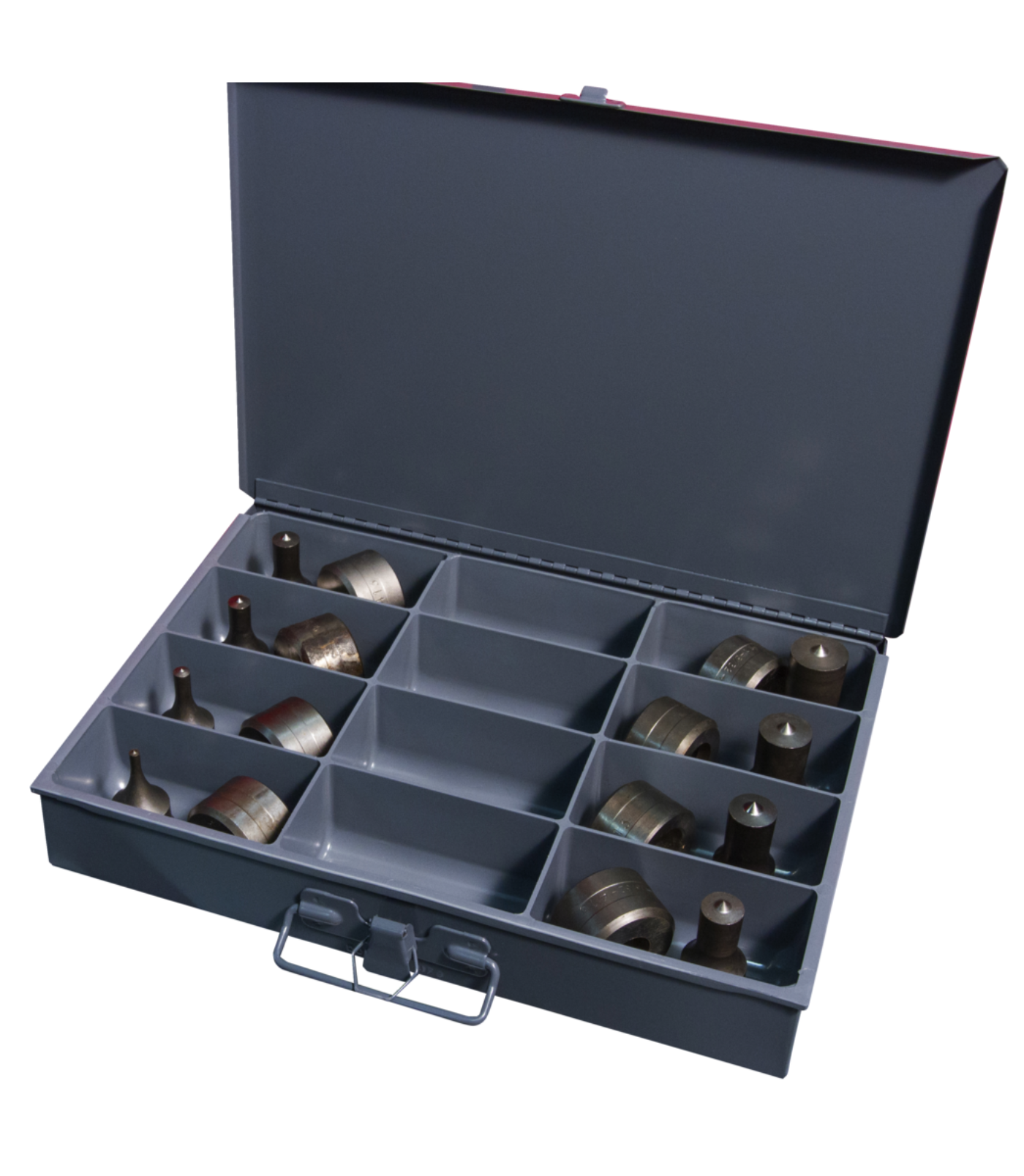

- Keep organized with our convenient storage case.
- Made of durable tool steel for long life.
- Note: Punch diameter must meet or exceed the thickness of your material.
- Sized in 1/8" increments from 3/16" to 1-1/16" with 1/32" clearance.
What our Experts Think
-
Essential Starter Kit: Includes 8 round punch & die sets covering the most common bolt sizes—perfect for getting started without buying individual components.
-
Wide Size Coverage: Ranges from 3/16" to 1-1/16" in 1/8" increments, offering excellent versatility for everyday fabrication and punching tasks.
-
Consistent, Clean Punching: Engineered with 1/32" clearance, ensuring accurate holes with reduced material deformation.
-
Heavy-Duty Tool Steel: Built from durable tool steel for long-lasting performance under repeated industrial use.
-
Optimized for Edwards Ironworkers: Fully compatible with standard pedestal die tables, ensuring seamless integration into existing setups.
-
Organized & Job-Ready: Comes with a dedicated storage case, keeping all punch & die sizes accessible and protected on the shop floor.
-
Scalable System: Designed as a foundation set—easily expandable with additional shapes and sizes as your production needs grow
Q&A
Q: What is the EDWARDS Punch & Die Starter Set used for?
A: It’s designed for punching precise holes in metal, covering the most common bolt sizes for fabrication and industrial applications.
Q: What does this starter set include?
A: The kit includes 8 round punch and die sets with sizes ranging from 3/16" to 1-1/16", plus a storage case for organization.
Q: What materials can it handle?
A: Suitable for punching mild steel, aluminum, and similar metals when used with compatible ironworkers.
Q: What makes this set versatile?
A: Sizes are provided in 1/8" increments with 1/32" clearance, allowing flexibility for multiple hole sizes and applications.
Q: Is it compatible with all ironworkers?
A: It’s designed for use with Edwards ironworkers and standard pedestal die tables.
Q: What material is the punch & die made from?
A: Manufactured from durable tool steel for long-lasting performance and precision.
Q: Why choose the EDWARDS PD1000 starter set?
A: It provides a complete, ready-to-use solution for common punching tasks, reducing setup time and improving workshop efficiency.
Maintenance Tips
-
Keep Punches & Dies Clean – Remove metal chips and slug buildup after each use to prevent misalignment and surface damage.
-
Apply Light Lubrication – Use cutting oil on punches and dies to reduce friction, heat, and premature wear during operation.
-
Inspect for Wear & Cracks – Regularly check edges for dulling or chipping to maintain accurate hole sizes and clean finishes.
-
Match Punch Size to Material Thickness – Always ensure punch diameter meets or exceeds material thickness to avoid tool damage.
-
Maintain Proper Clearance – Verify correct die clearance (typically 1/32") to ensure smooth punching and reduce stress on tooling.
-
Store in Protective Case – Keep all 8 punch & die sets organized in the storage box to prevent corrosion and loss.
-
Secure Setup & Alignment – Ensure compatibility and proper mounting on pedestal die tables for consistent, repeatable results.
-
Avoid Overloading Capacity – Follow tonnage guidelines and avoid exceeding material limits to prevent deformation or breakage.
