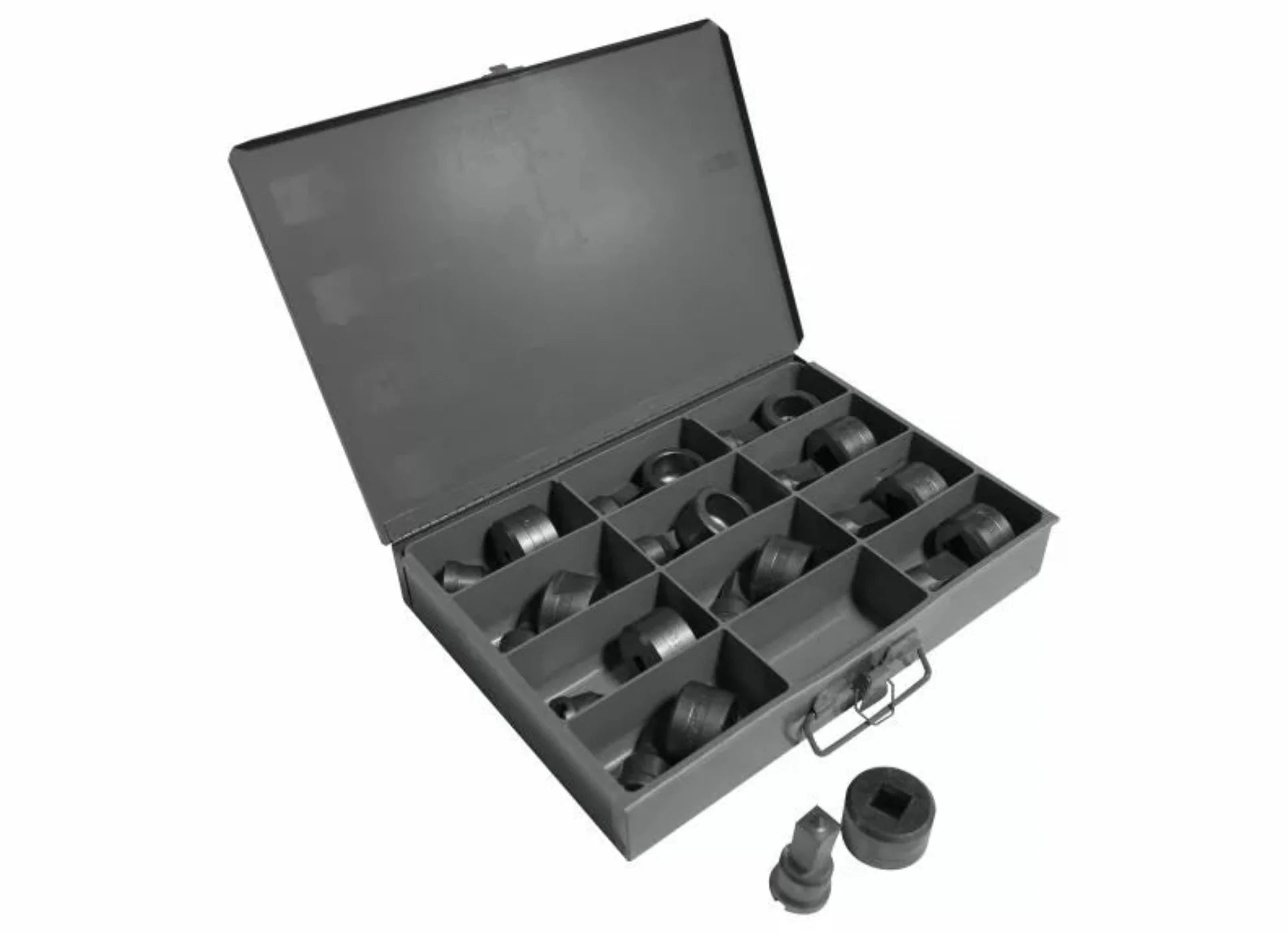

EDWARDS 12 PC. Square Punch & Die Set w/ Storage Case - ED9-PD1260
- 12 Piece Set.
- Storage Case Provided.
What our Experts Think
-
Comprehensive square punching solution
The EDWARDS 12 PC Square Punch & Die Set w/ Storage Case (ED9‑PD1260) gives fabricators a complete range of square hole sizes in one organized kit — ideal for structural, architectural, and fabrication work where square holes are required.
-
Broad size coverage for versatility
Includes a selection of commonly used square punch and die sizes, reducing the need to source individual pieces and enabling efficient handling of varied jobs.
-
Precision‑machined for clean results
Hardened tool steel construction and tight tolerances deliver sharp, accurate square holes with minimal burr and deformation — essential for professional‑grade assemblies.
-
Durable and shop‑ready
Built to withstand repeated heavy use in industrial environments, this set stands up to demanding punching cycles while maintaining performance.
-
Convenient storage and organization
Comes with a storage case that keeps all 12 pieces neatly arranged and protected, simplifying tool management and reducing downtime.
-
Seamless integration with EDWARDS ironworkers
Designed to work with standard punch holders and tables, enabling quick installation and reliable operation on compatible machines.
Q&A
**Q: What is the EDWARDS 12 PC. Square Punch & Die Set (ED9‑PD1260)?
A: A complete 12‑piece square punch & die set with a convenient storage case, designed for producing square holes in metalworking tasks. It’s compatible with standard pedestal die tables on ironworkers and presses.
Q: What square hole sizes are included?
A: The kit includes punch & die sets to produce square holes in the following sizes: 1/4", 5/16", 3/8", 7/16", 1/2", 17/32", 9/32", 5/8", 11/16", 3/4", 25/32", and 13/16".
Q: What materials and thicknesses can it work with?
A: Designed to punch square holes in steel and other metals; ensure the punch diameter is equal to or greater than the material thickness for proper performance.
Q: What’s included with this punch & die set?
A: Includes 12 square punch & die pairs plus a storage case to keep tooling organized and protected when not in use.
Q: What makes this set durable?
A: Each punch and die is made from high‑strength tool steel, engineered for long life under frequent use.
Q: Who is this product ideal for?
A: Ideal for metal fabricators, machine shops, and industrial workshops that frequently punch square holes and need a wide range of sizes in one organized kit.
Q: Why choose the ED9‑PD1260 set?
A: Offers a comprehensive range of popular square hole sizes in a single set with a storage case, enhancing productivity and tool management in fabrication operations.
Maintenance Tips
-
Clean After Use: Remove metal shavings, dust, and oil to maintain sharp cutting edges.
-
Inspect for Damage: Check punches and dies for chips, cracks, or wear; replace or sharpen as needed.
-
Lubricate Before Operation: Apply light cutting oil to reduce friction, improve punch life, and ensure clean cuts.
-
Proper Seating: Ensure punches and dies are correctly aligned in the press to prevent uneven wear or damage.
-
Store Safely: Keep in the provided case in a dry environment to prevent rust and corrosion.
-
Use Within Material Capacity: Match punch size to material thickness to avoid breakage.
