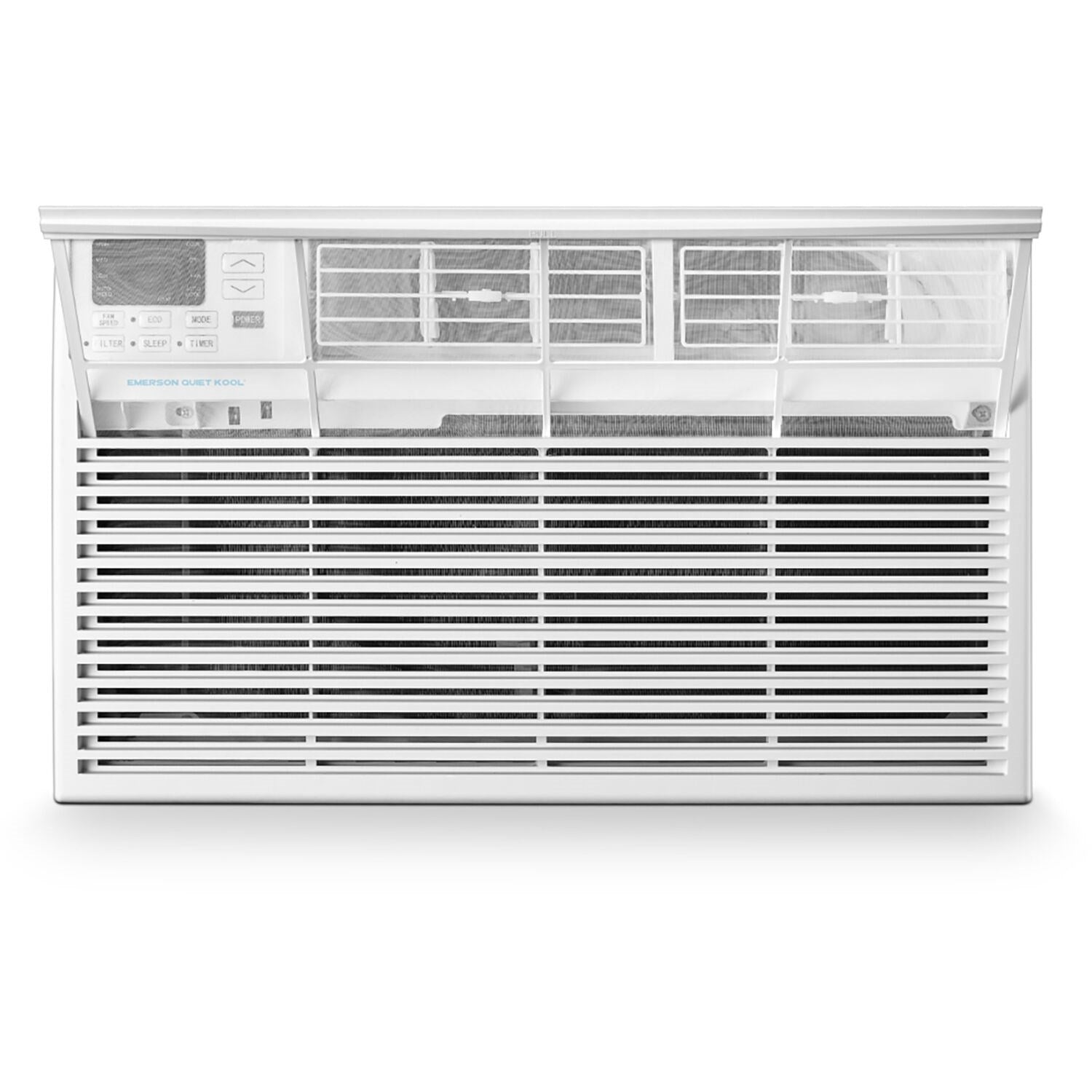

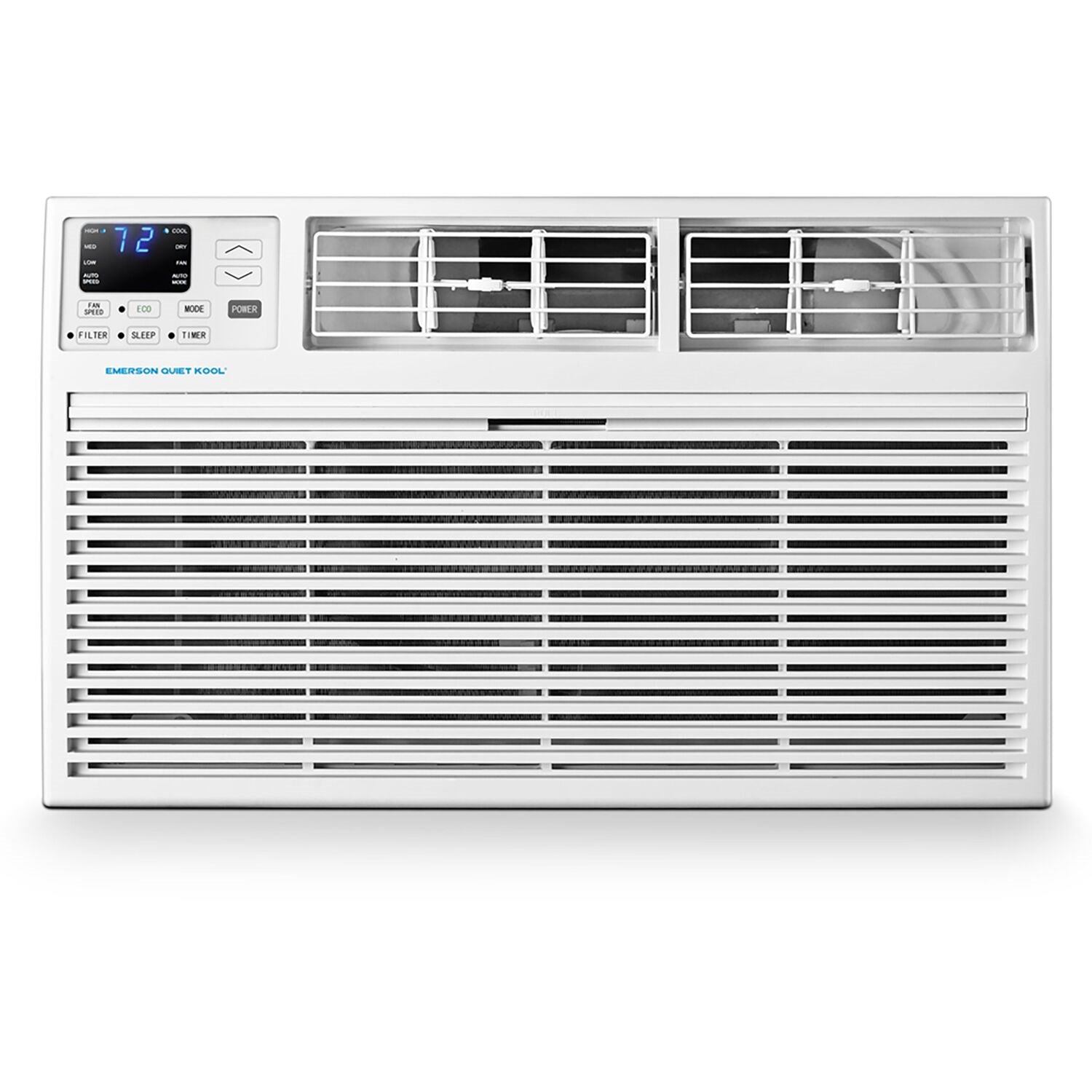

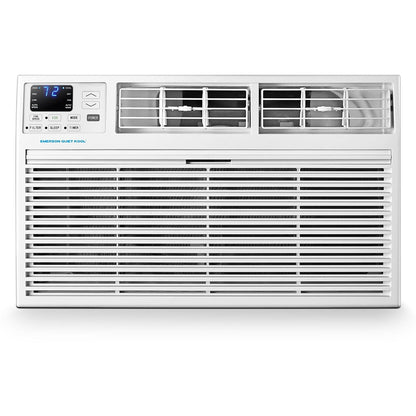

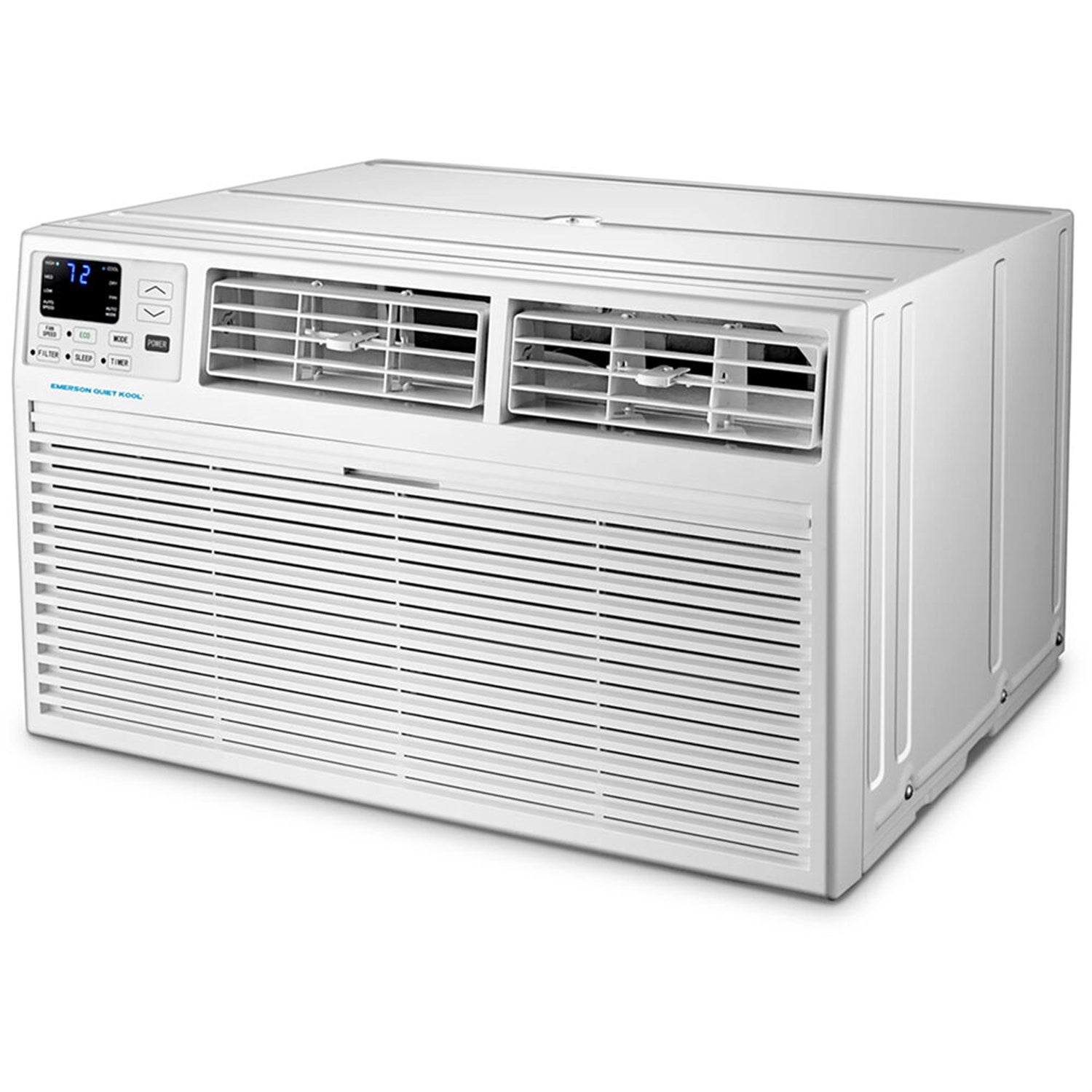

Emerson Quiet - 14,000 BTU TTW Air Conditioner, 230V | EATC14RD2T
Description

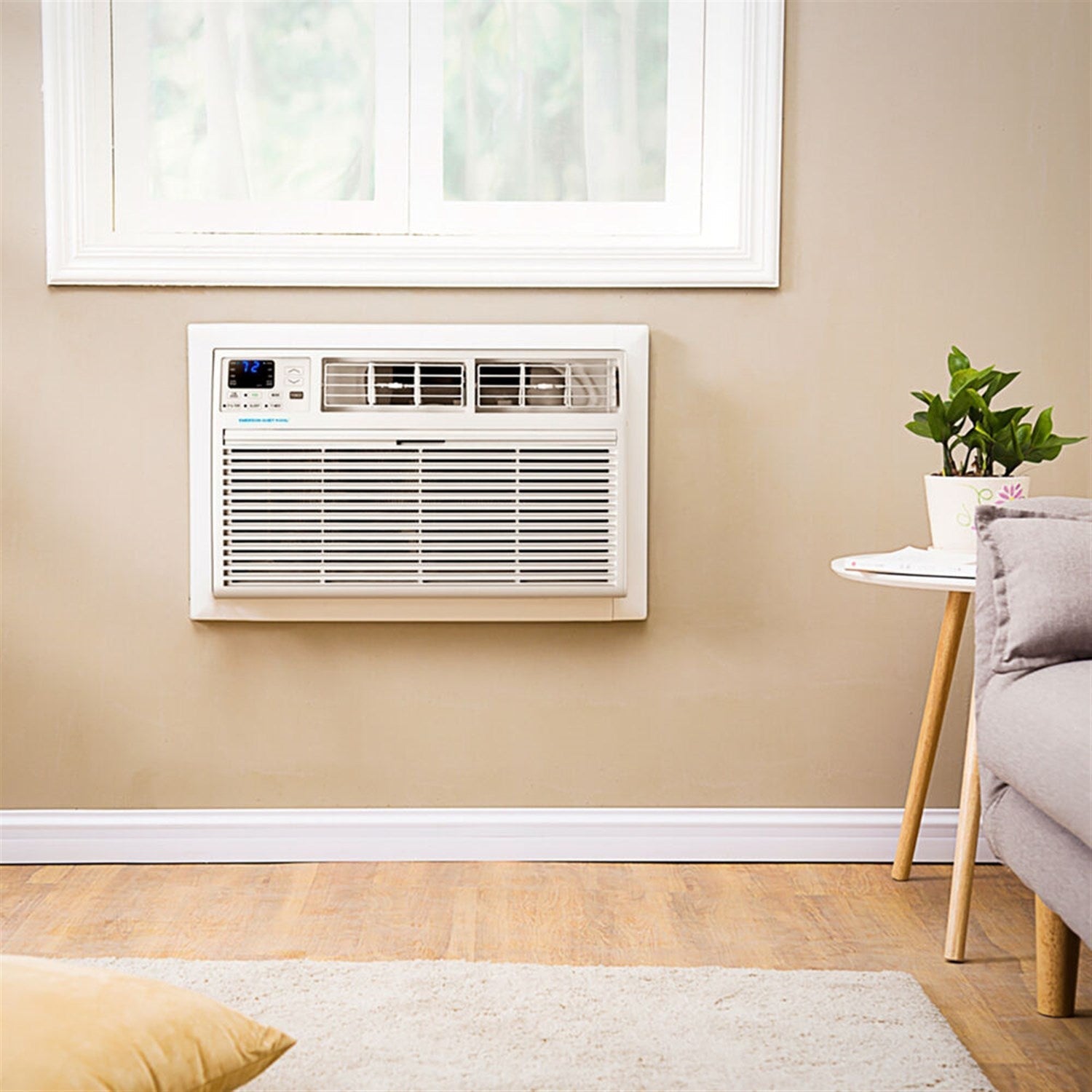

Designed to a cool room up to 700 square feet, the Emerson Quiet Kool 230-volt 14,000 BTU through-the-wall air conditioner is the perfect cooling solution for your home or office. This model is designed for through-the-wall installation and is not designed for standard window installation. It will fit most existing wall sleeves (including our competitors) and includes a decorative interior trim kit. This unit also requires a special 230-Volt/20-Amp electrical outlet and will not operate with a standard 115V household electrical outlet. Convenient features include a remote control, 24-hour on/off timer, and sleep mode. For peace of mind, you get our 1-2-5 years warranty: 1 year labor, 2 years parts and 5 years compressor. Emerson Quiet Kool air conditioners are a great way to beat the heat and stay comfortable.
Features
- EXCLUSIVE 1-2-5 WARRANTY: Your Emerson Quiet Kool Wi-fi enabled air conditioner comes with an industry-exclusive 1-2-5 warranty that covers 1 year of labor, 2 years of parts, and 5 years on the compressor. Buy and use with confidence.
- QUIET COOLING FOR LARGE ROOMS: This 14,000 BTU through the wall air conditioner efficiently cools up to 700 sq. ft while saving you money thanks to its Energy Star rating. At 57dB, this unit is among the quietest in the industry, making it ideal for large sized rooms. (Product is not suitable for window installation)
- SPLIT AIR EXHAUST VENTS: Two air exhaust vents (instead of one) combine with three fan speeds to give you 8-way flexibility to direct the flow of cold air where you want it when you want it.
- PROGRAMMABLE TIMER AND SLEEP MODE: Integrated 24-hour timer can be set via on-board controls, remote control, phone/tablet app, or voice controls. Intelligent sleep mode takes it one step further by slowly adjusting the temperature and fan speed to keep you comfortable overnight while saving you energy and money.

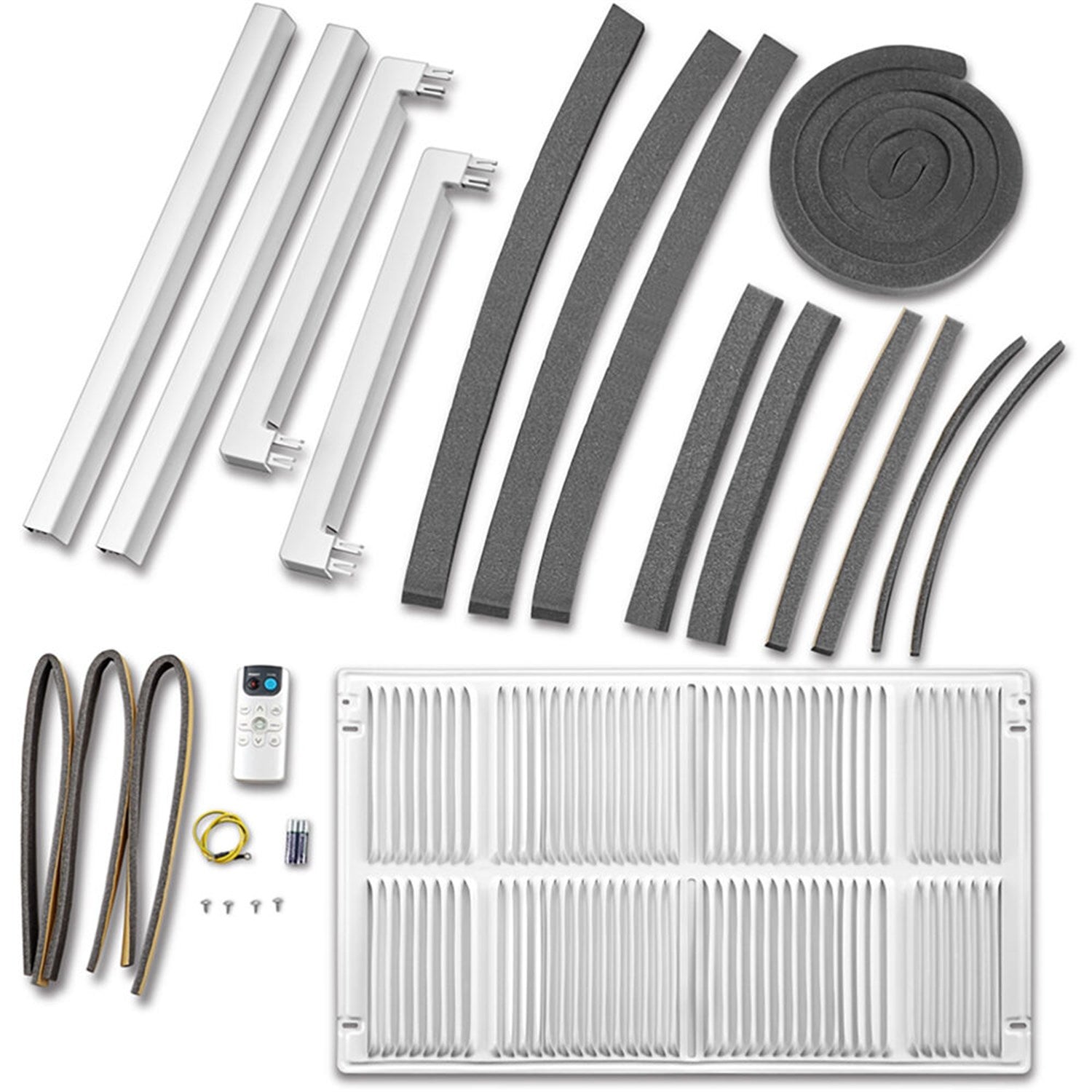

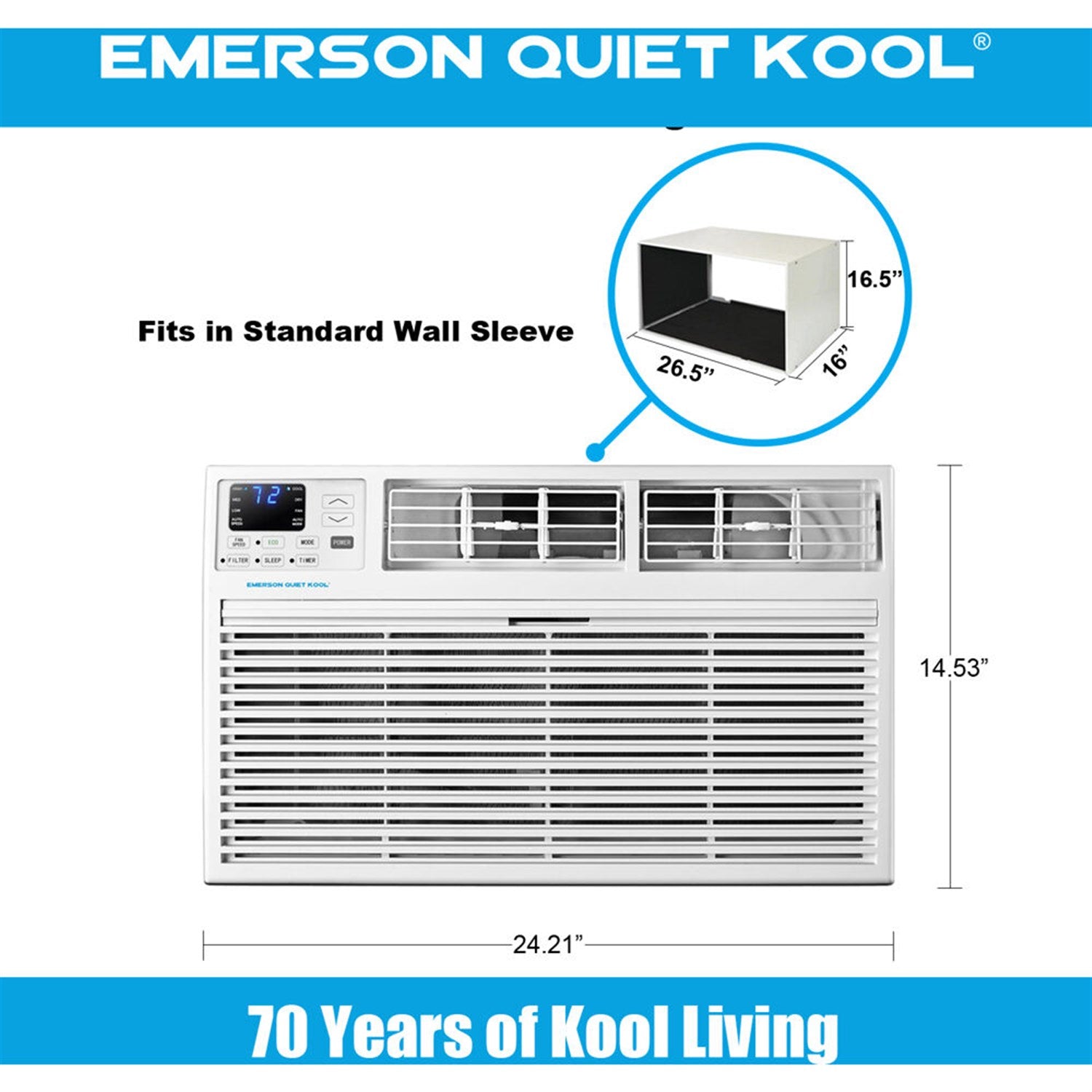

- SMART-FIT SIZING: With dimensions of 20.3â D x 24.2â W x 14.5â H, this Emerson Quiet Kool through the wall air conditioner was designed with Smart-Fit dimensions, meaning it will fit any 24.5â to 27â wall sleeve you have. Included foam insulation with help you retro-fit your sleeve to this new design. Donât have a sleeve? Remember to check the dimensions prior to purchasing.
- Excess moisture removal up to 3.8 pints per hour for a more comfortable environment
- Washable and reusable easy-access filter with check filter indicator, reduces room odors and other airborne particles
- After a power outage, Auto Restart resumes operating at its previous settings when power is restored

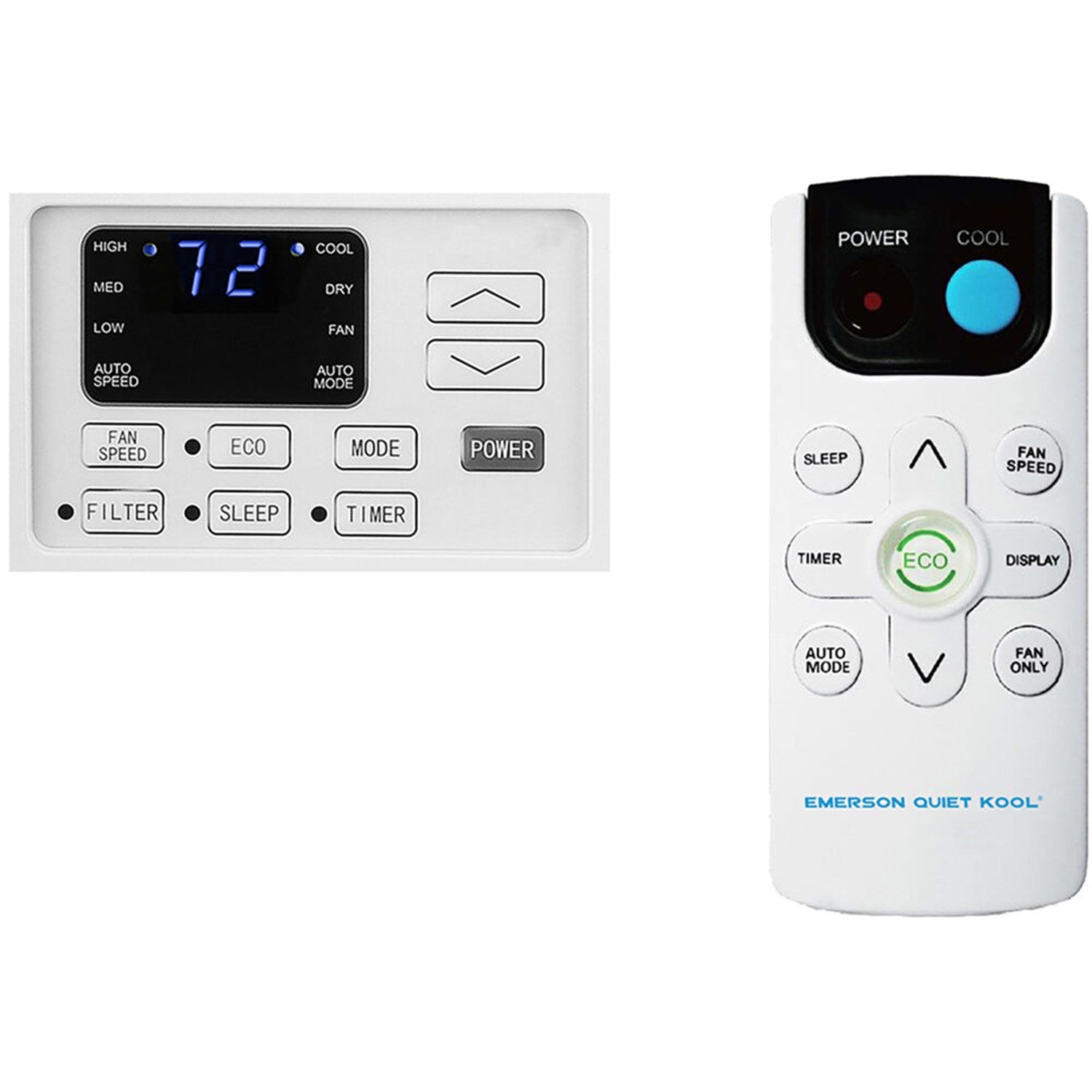

- Remote control for convenient operation from anywhere in the room

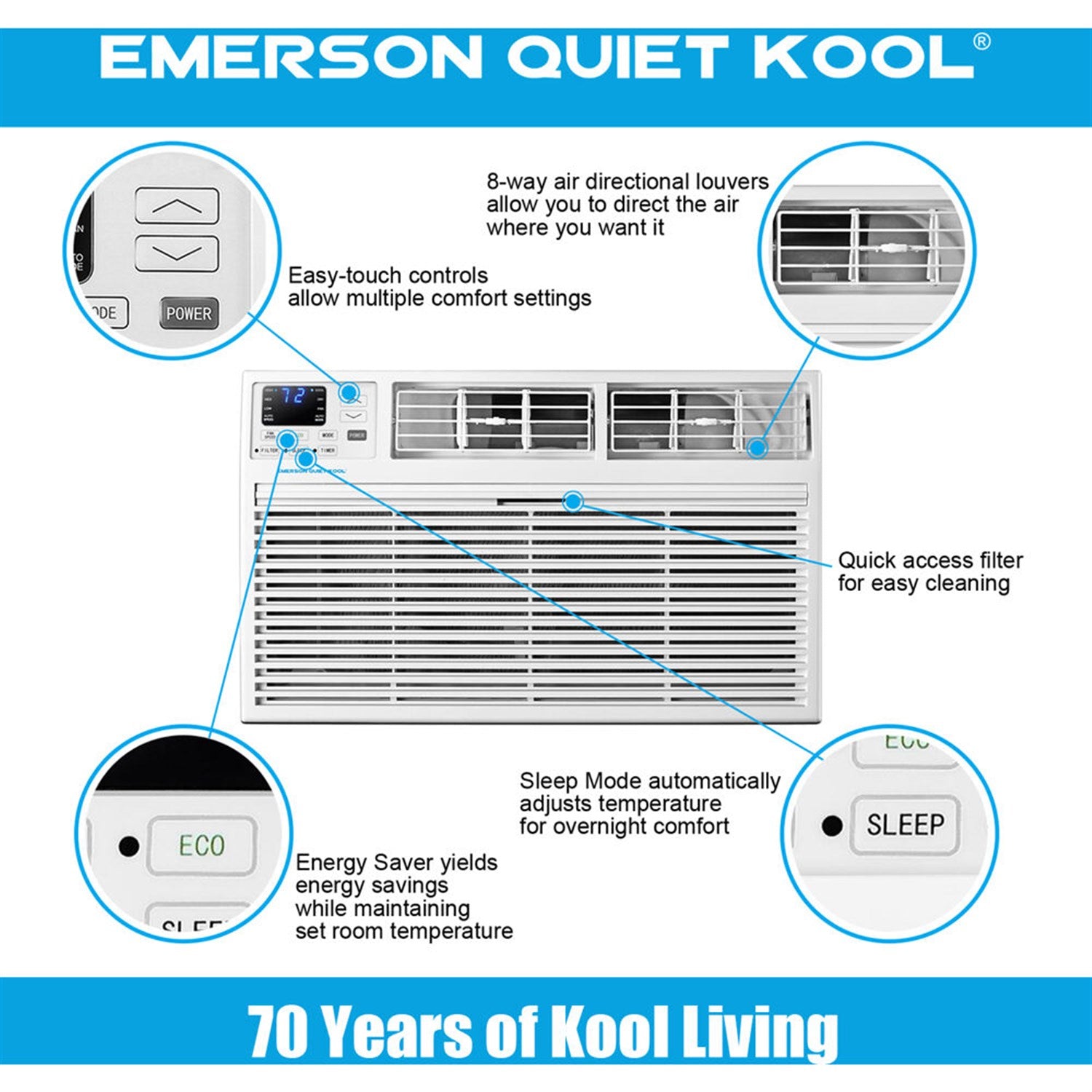

- Large blue LED display on unit with 3 speed choices and electronic temperature control
- 24-hour timer allows you to preset the time to turn on or off the machine
- 8-way airflow louvers allow you to direct the air where you want it
- ECO function yields energy savings while maintaining set room temperature
- Sleep function automatically adjusts temperature for overnight comfort

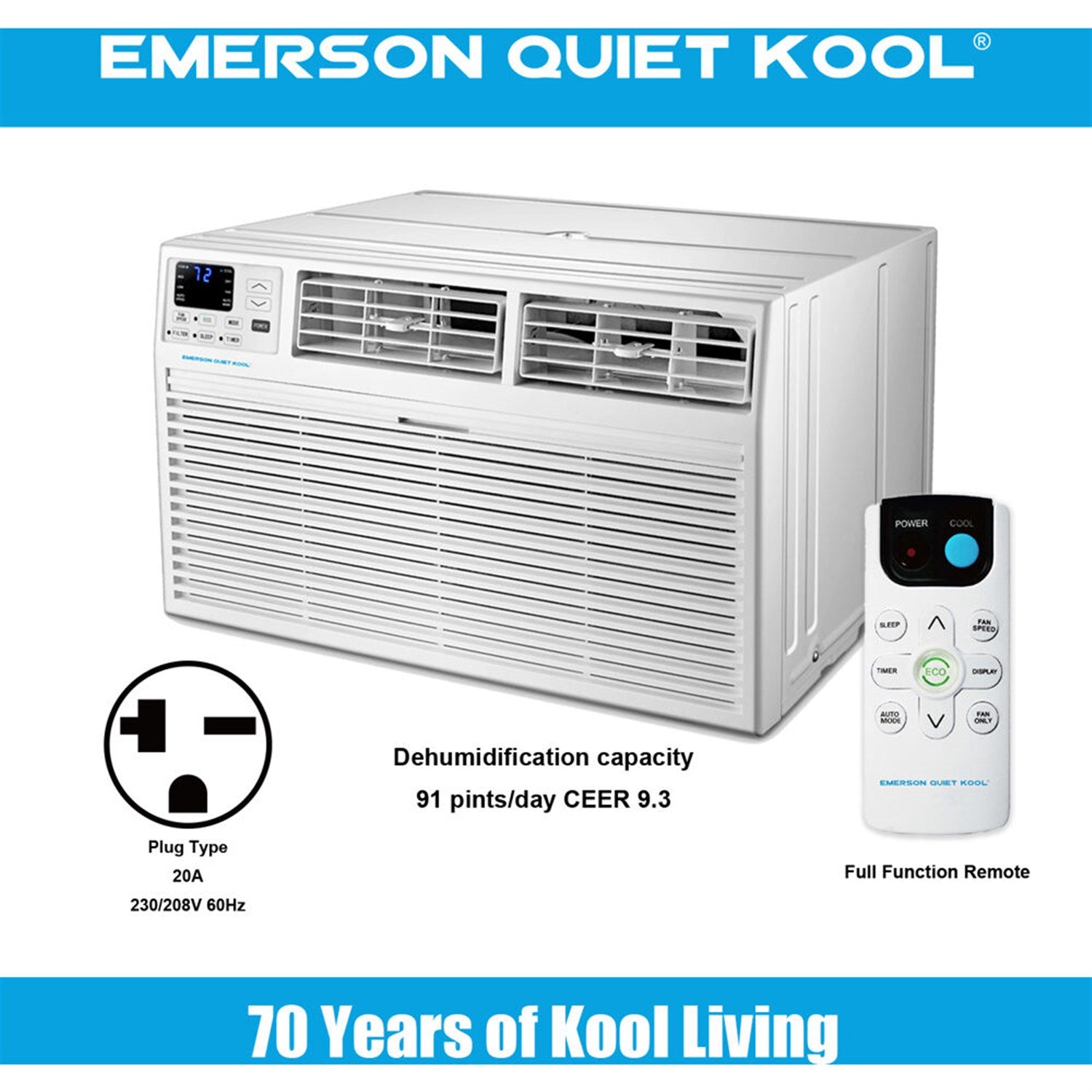

- 5.9 ft. long power cord with NEMA 6-15P LCDI plug
Specifications
| Air Conditioner Features: Sleep Setting "Sleep Mode",Timer |
| Air Conditioner Product Type: Through the Wall Unit |
| Air direction/circulation: 8-way |
| Amperage (amps): 6.9 |
| Appliance Category: A/Cs and Fans |
| BTU Cooling Rating (ASHRAE): 14000 BTU |
| BTU Cooling Rating (DOE SACC): 14000 BTU |
| Color Family: White |
| Combined Energy Efficiency Ratio (CEER): 0 |
| Commercial/Residential: Residential |
| Control Type: Remote Control |
| Controls: Digital |

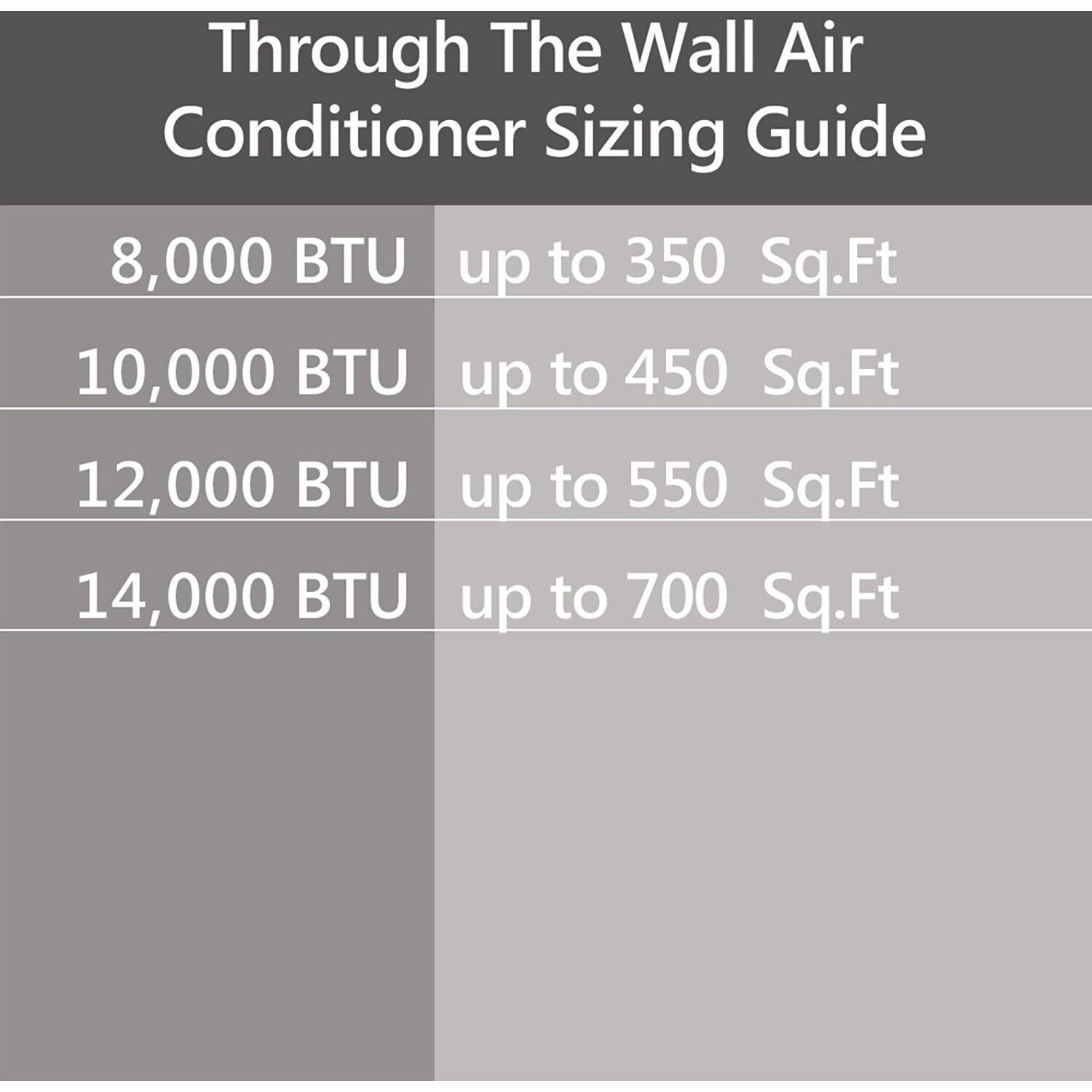

| Cooling Area (Sq. Ft.): 700 |
| Decibel (Sound) Rating: 61 dBA |
| Decibel Rating: 61 dBA |
| Energy Efficiency Ratio (EER): 9.4 |
| Filter Type: Washable |
| Heater Included: Without Heater |
| Included: Remote Control |
| Number of cool settings: 3 |
| Number of Fan Speeds: 3 |
| Pack Size: 1 |
| Product Weight (lb.): 76.10 lb |
| Returnable: 90-Day |
| Voltage (volts): 230 |
| Wattage (watts): 1500 |
Dimensions & Weight
-
Cut-Out Depth (in.): 20.300
-
Cut-Out Height (in.):Â 14.500 in
-
Cut-Out Width (in.):Â 24.200 in
-
Product Depth (in.):Â 20.300 in
-
Product Height (in.):Â 14.500 in
-
Product Width (in.):Â 24.200 in
What Our Experts Think
-
14,000 BTU through-the-wall air conditioner cools medium to large rooms effectively.
-
Quiet operation makes it suitable for bedrooms, living spaces, and offices.
-
Durable design built for reliable daily performance.
-
Multiple modes (Cool, Fan, Dry, Auto) for customizable comfort.
Q&A
-
Q: What power requirements does it need?
A: 230 V dedicated power supply required.
-
Q: Can I control it remotely?
A: No Wi-Fi on this model â standard control panel and remote.
-
Q: Is it noisy?
A: Designed for quiet operation.
-
Q: What size space can it handle?
A: Ideal for rooms up to medium-large size (~600 sq ft).
Maintenance Tips
-
Clean or rinse the washable filter regularly to maintain airflow.
-
Wipe exterior with a soft cloth and mild cleaner.
-
Check wall sleeve and seals annually to prevent drafts.
-
Schedule yearly professional servicing to ensure peak performance.
