Epson ELPLW06 Wide-Throw #2 Zoom Lens V12H004W06 - V12H004W06

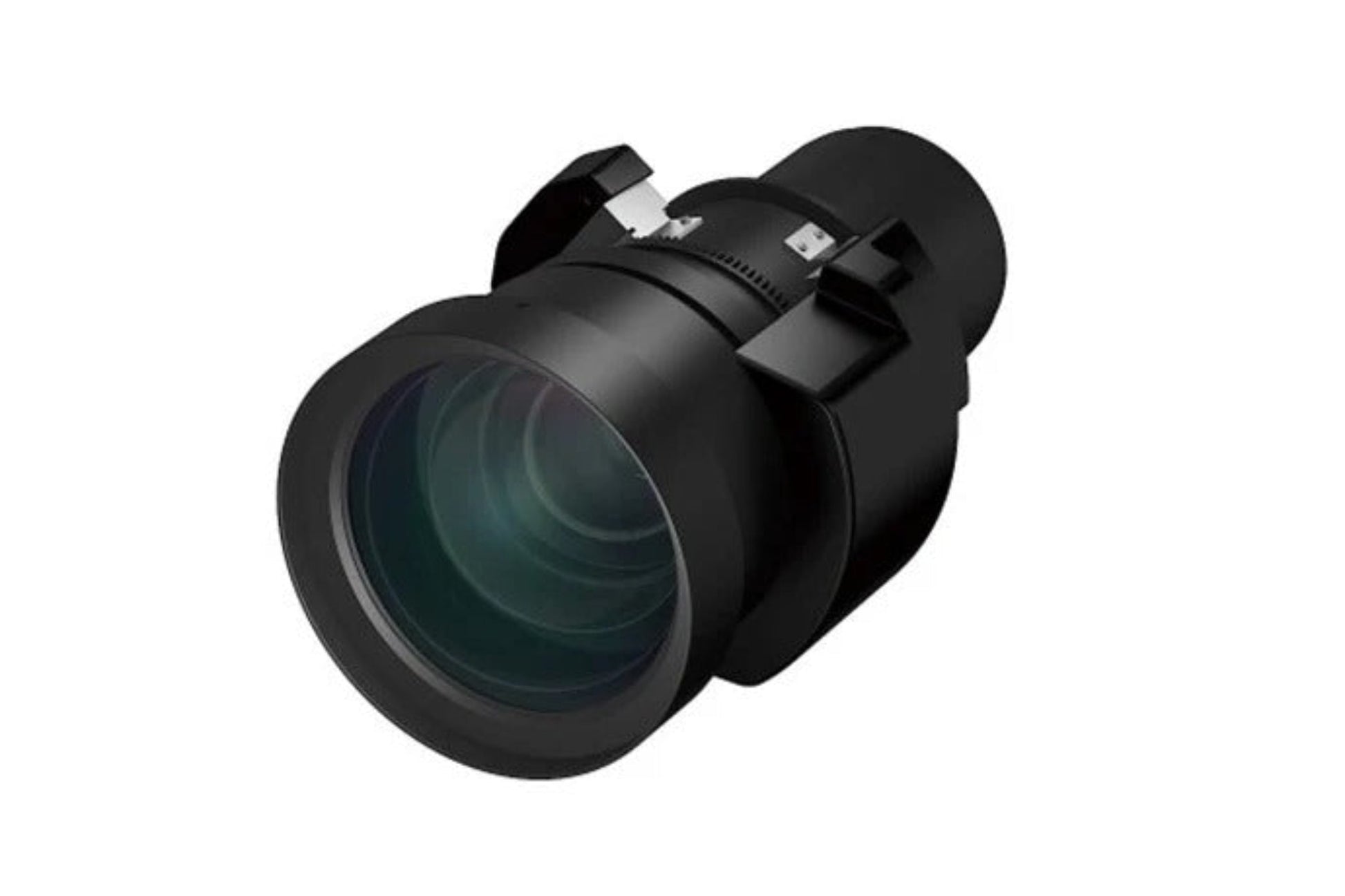

Epson's Wide Zoom Lens (ELPLW06) is an interchangeable lens that works with PowerLite Pro G7XXX and Pro LXXX Projectors (excludes the Pro L25000 Projector).
What our Experts Think
-
Designed for Large-Format Projection:
Delivers high-quality images on very large screens (50″–1,000″), ideal for big venues and events.
-
Wide Throw Flexibility:
Throw ratio ranges approximately from 1.62 to 2.22, offering strong placement flexibility for projectors.
-
Motorized Zoom for Precision:
1.0–1.4× zoom allows fine-tuning of image size without moving the projector—perfect for professional installations.
-
High-Quality Optics:
Focal length 27.3 mm–37 mm with f/1.8–2.3 maintains sharpness and brightness across the full zoom range.
-
Robust Lens-Shift Capabilities:
Vertical shift ±60–67% and horizontal ±18–30% simplify alignment in offset or complex setups.
-
Durable Build:
Weighs around 6.5 lbs (2.95 kg), ensuring stability and long-term reliability in commercial and large-venue applications.
Q&A
Q: What is the Epson ELPLW06 Wide-Throw #2 Zoom Lens (V12H004W06)?
A: A professional, interchangeable wide-angle zoom lens for Epson Pro series projectors, designed for large-venue 3LCD installations.
Q: What is the throw ratio?
A: For ≤8,500 lm models: 1.62–2.22:1; for 9,000–20,000 lm models: 1.19–1.62:1; for some 4K EB‑PQ series: 1.15–1.57:1.
Q: What is the zoom range?
A: 1.0× to 1.4× optical zoom.
Q: What are the focal length and aperture?
A: Focal length from 27.3 mm to 37 mm; aperture f/1.8–f/2.3.
Q: What screen sizes can it support?
A: Projection image sizes from approximately 50″ up to 1,000″ diagonal.
Q: Does it support lens shift?
A: Yes — vertical and horizontal lens shift varies by projector series:
-
≤8,500 lm: ±67% vertical, ±30% horizontal
-
9,000–20,000 lm: ±60% vertical, ±18% horizontal
-
4K EB‑PQ series: ±58% vertical, ±16% horizontal
Q: What is the weight of the lens?
A: About 6.5 lb (2.95 kg).
Q: Which projectors is it compatible with?
A: Epson Pro L and Pro G7000-series projectors up to 15,000 lumens, and some higher-brightness models.
Q: Why choose this lens?
A: Provides wide-angle projection with zoom and generous lens shift, ideal for large venues, events, and flexible installation setups.
Maintenance Tips
-
Clean the lens carefully: Use a microfiber cloth to remove dust and smudges; avoid direct liquid cleaners.
-
Use a lens cap: Protect the lens from dust and scratches when not in use.
-
Handle with care: Support the lens with both hands during installation or removal to avoid misalignment.
-
Store in stable conditions: Keep in a dry, temperature-controlled environment to preserve optical performance.
-
Check secure mounting: Periodically ensure the lens is properly seated for consistent image quality.
