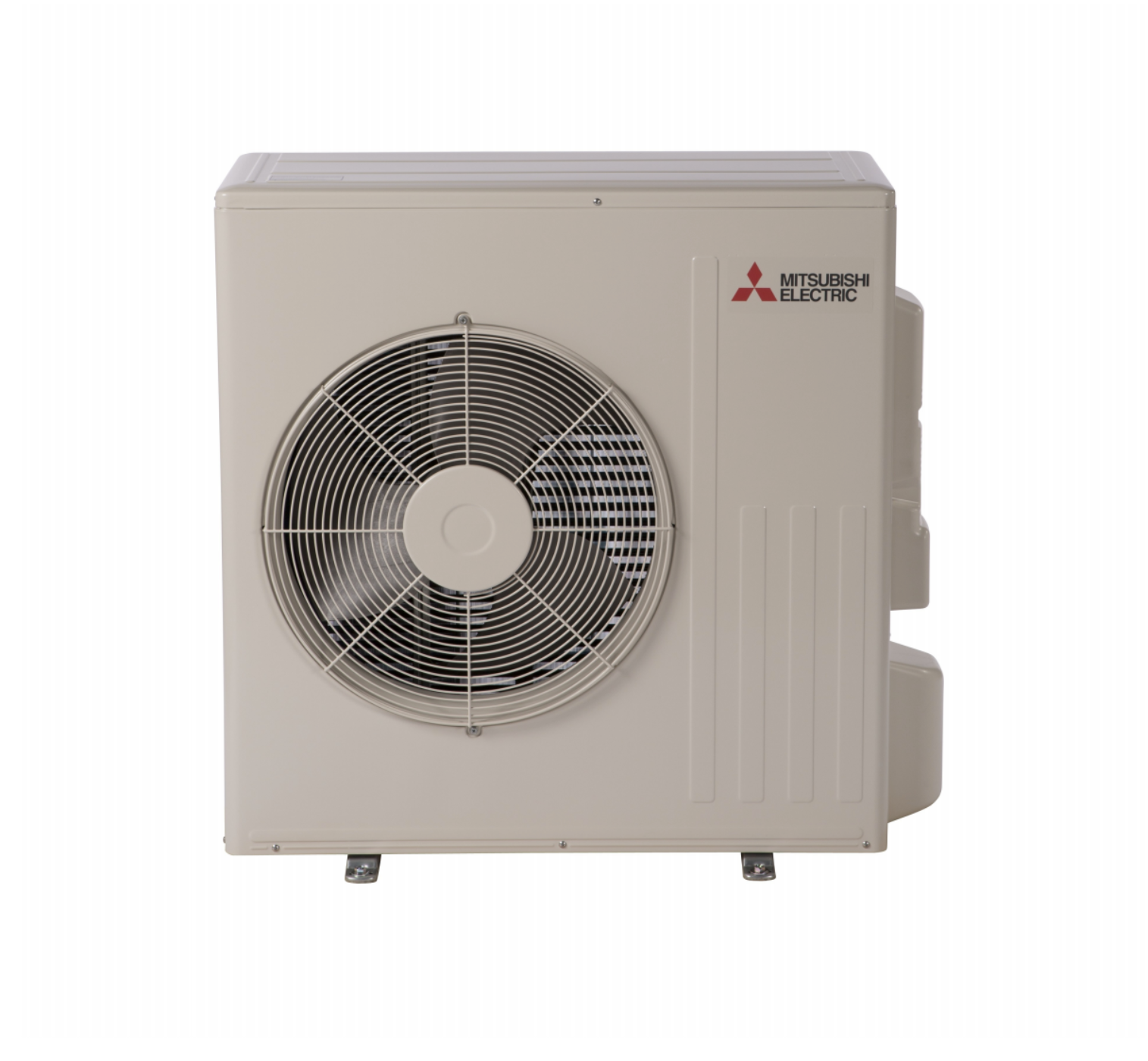

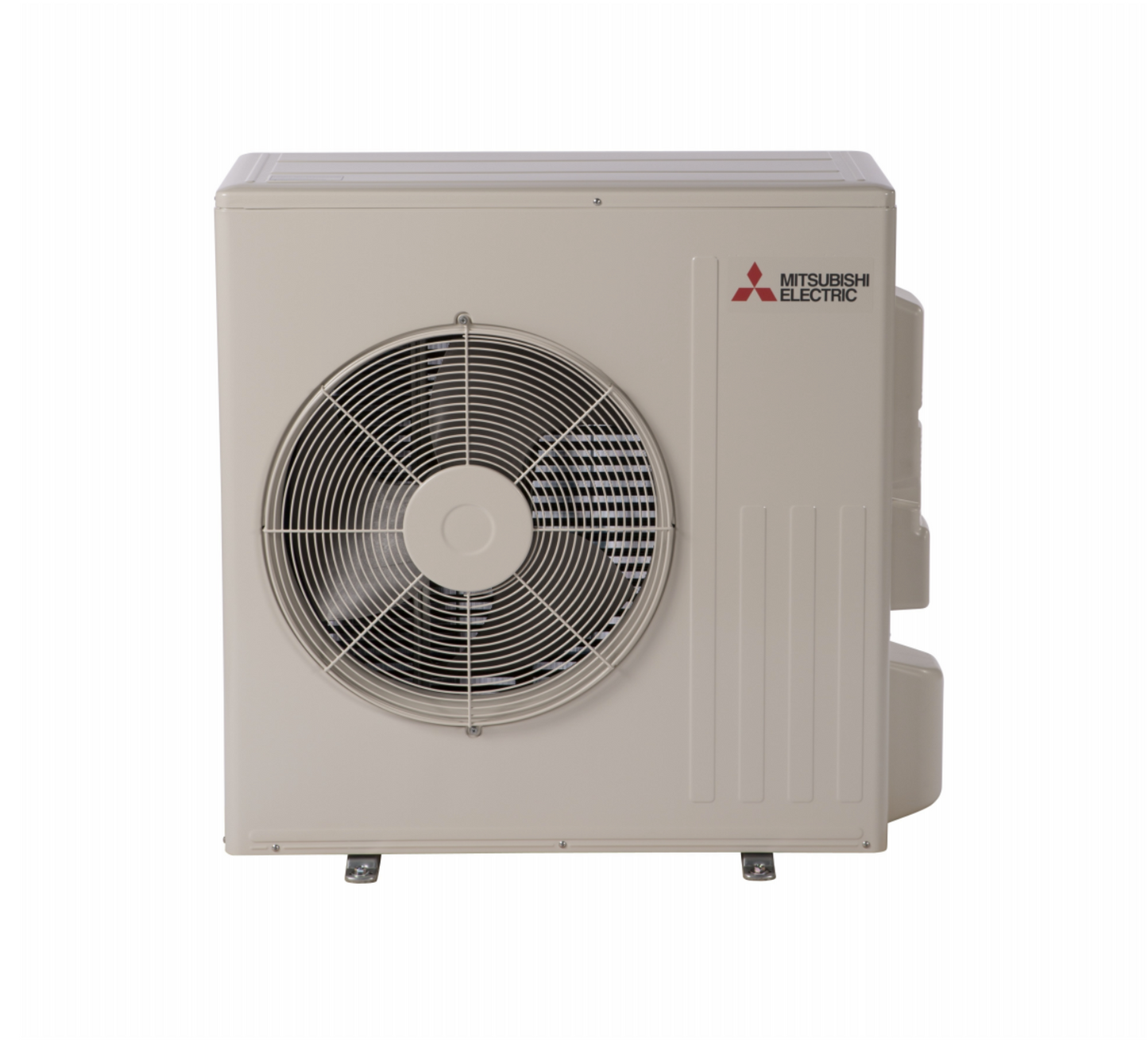

The Mitsubishi 20,000 BTU dual multi-zone outdoor heat pump (MXZ-2C20NA) is an extremely efficient heating and cooling option that can handle two zones.

Mitsubishi's current 20,000 BTU outdoor heat pump model is the MXZ-2C20NA3-U1. This specific outdoor unit allows you to connect a wide variety of indoor units that can range up to 15,000 BTU. The MXZ-2C20NA is part of Mitsubishi's M-Series, catering to residential applications.

Features

1. 1. Line Set - When hooking up indoor units to the MXZ-5C42NA, you'll need refrigerant lines. There can be three different combinations for this outdoor unit: 1/4" & 3/8" for 6,000-12,000 BTU units, 1/4" & 1/2' for 15,000-18,000 BTU units, and 3/8" & 5/8" for 24,000 BTU units. Our line-sets kits come in different lengths; however, you can cut the copper pipes to fit your application.
   1. Disconnect Box & Electrical Whip Kit - The disconnect & whip kit comes in each installation kit. It provides a safe and simple way to connect your outdoor condenser to your homes' electrical panel
   2. Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser. It's included with multi-zone systems orders.
   3. Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condensing unit off of the ground and attached to your home. It's included with multi-zone systems orders.
   4. Port Adapters  (Optional) - Port adapters are sometimes necessary when connecting multiple indoor units to an outdoor unit. See installation manual to see when these items are necessary.



• Unit Type 1.66-Ton Inverter Condenser
• Product Line M-Series
• Operating Mode Cooling & Heating
• Low Ambient Heat: NO
• Number of Zones 2
• Unit Capacity 20,000 BTU

Includes

• Outdoor Unit MXZ-2C20NA3-U1

• Cooling Capacity up to 20,000 BTU
• Heating Capacity up to 25,500 BTU
• SEER2 Up to 20.0
• EER2 Up to 12.7
• HSPF2 Up to 10.0
• Heating Minimum Temp 5 F
• Cooling Minimum Temp 14 F
• Room Cooling/Heating Capacity up to 850 sq ft
• Noise Level: Cooling: 50 dB(A)
• Noise Level: Heating - 54 dB(A)
• Size W: 33 1/16"
• Size: H: 27 11/16"

• Size: D: 13"
• Weight: 126 lbs
• Pre-Charged: 5 lbs 15 oz
• Electrical: 20 AMP

What our Experts Think

• Reliable 2‑Zone Heat Pump Outdoor Unit: The Mitsubishi MXZ‑2C20NA 20,000 BTU 2‑Zone Heat Pump delivers balanced cooling and heating performance for multiple rooms from a single outdoor condenser — ideal for homes or small offices seeking flexible climate control across two zones.

• Multi‑Room Comfort from One Unit: Designed to connect with up to 2 indoor units, it lets you individually control temperature settings in each space without separate outdoor units, reducing equipment footprint and installation complexity.

• Efficient Inverter‑Driven Performance: The variable‑speed inverter compressor adapts output to real‑time demand, improving energy efficiency and reducing temperature swings compared with traditional systems.

• Quiet and Durable Outdoor Operation: Engineered for low noise levels during operation and equipped with features like intelligent power management for reduced loss and stable performance.

• Energy‑Smart Core: ENERGY STAR® efficiency helps lower utility costs through smarter cooling/heating cycles while maintaining comfort.

• Wide Operating Range: Built to support performance across typical seasonal extremes, providing comfort in both summer and winter (actual connected capacities vary by indoor unit types).

• Durability and Protection: Standard safety and protection features, such as thermal lockout/restart and high‑pressure protection, improve long‑term reliability.

• Expert Verdict: A versatile choice for homes needing dual‑zone HVAC control with efficient year‑round cooling and heating, offering quieter operation, flexible zoning, and energy‑saving benefits from a single outdoor heat pump unit.

Q&A

Q: What type of HVAC unit is the Mitsubishi MXZ‑2C20NA?
A: It’s a multi‑zone heat pump outdoor condenser that supports up to 2 indoor units for ductless mini‑split systems, providing both cooling and heating.

Q: What is the nominal capacity of this unit?
A: The outdoor unit has a 20,000 BTU nominal cooling capacity and delivers strong heating capacity suitable for medium‑sized spaces when paired with indoor units.

Q: What refrigerant does it use?
A: This model uses R‑410A refrigerant, a widely used option in existing mini‑split installations.

Q: How many zones can it support?
A: It supports two independent zones (two indoor units) for flexible room‑by‑room cooling and heating.

Q: What kind of efficiency and performance features does it have?
A: The unit incorporates a variable‑speed inverter compressor, operates quietly, and can achieve up to ~20 SEER2 and ~10 HSPF2 efficiency ratings, helping reduce energy use.

Q: Does it have Energy Star certification?
A: Yes — this model is Energy Star certified for efficient performance and lower operating costs.

Q: What are typical operating conditions?
A: It operates in both cooling and heating modes across a wide range of ambient temperatures and restarts automatically after power outages.

Q: What indoor unit capacities can it pair with?
A: Compatible with a combination of indoor units that total up to roughly 24,000 BTU combined capacity (e.g., two 12 k BTU units).

Q: What are its electrical and installation specs?
A: The outdoor unit runs on 208/230 V single‑phase power (60 Hz) with standard refrigerant line connections, and it includes built‑in protective features like pressure switches.

Maintenance Tips

• Keep Outdoor Unit Clean & Clear: Remove leaves, debris, snow, and vegetation around the outdoor unit to maintain proper airflow and efficient heat exchange. Blocked airflow reduces performance and increases energy use.

• Clean the Condenser Surface: Use a soft dry cloth or lightly damp cloth to wipe the outdoor condenser’s surface; avoid harsh chemicals and direct water spray to prevent electrical issues.

• Inspect Air Inlets & Outlets: Before use, ensure outdoor air inlets and outlets are free of blockages to keep airflow unobstructed and system pressure balanced.

• Check Drainage: Verify that condensate drain paths are unobstructed to avoid water buildup and potential corrosion or leaks.

• Secure Electrical Connections: Periodically verify that electrical connections and circuit breaker components show no signs of wear or looseness to prevent performance issues or hazards.

• Use Correct Refrigerant: Only use and service the system with the specified R410A refrigerant; improper refrigerants can damage the system and pose safety risks.

• Annual Professional Service: Have a certified HVAC technician inspect refrigerant levels, coils, electrical components, and safe operation at least once a year.

• Monitor Performance: If cooling/heating output weakens or unusual noises occur, contact a technician promptly — early diagnosis prevents larger repairs.
