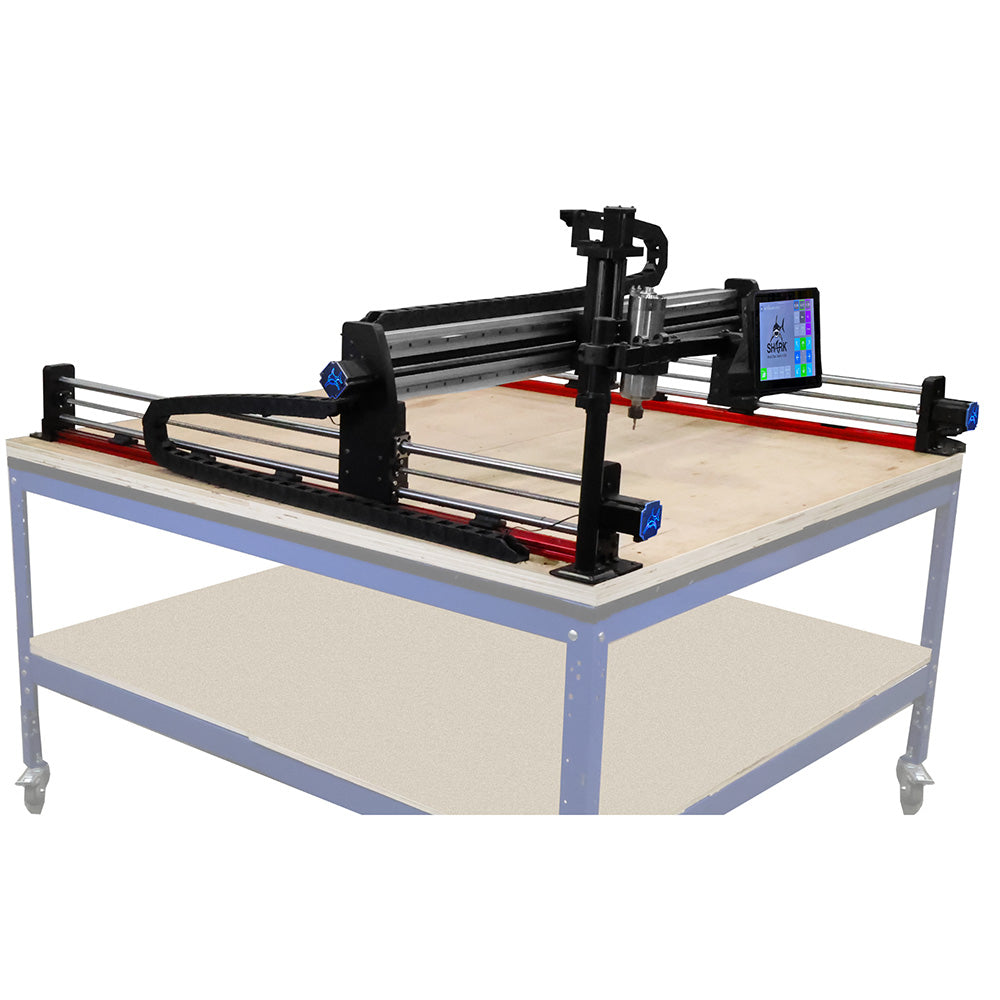

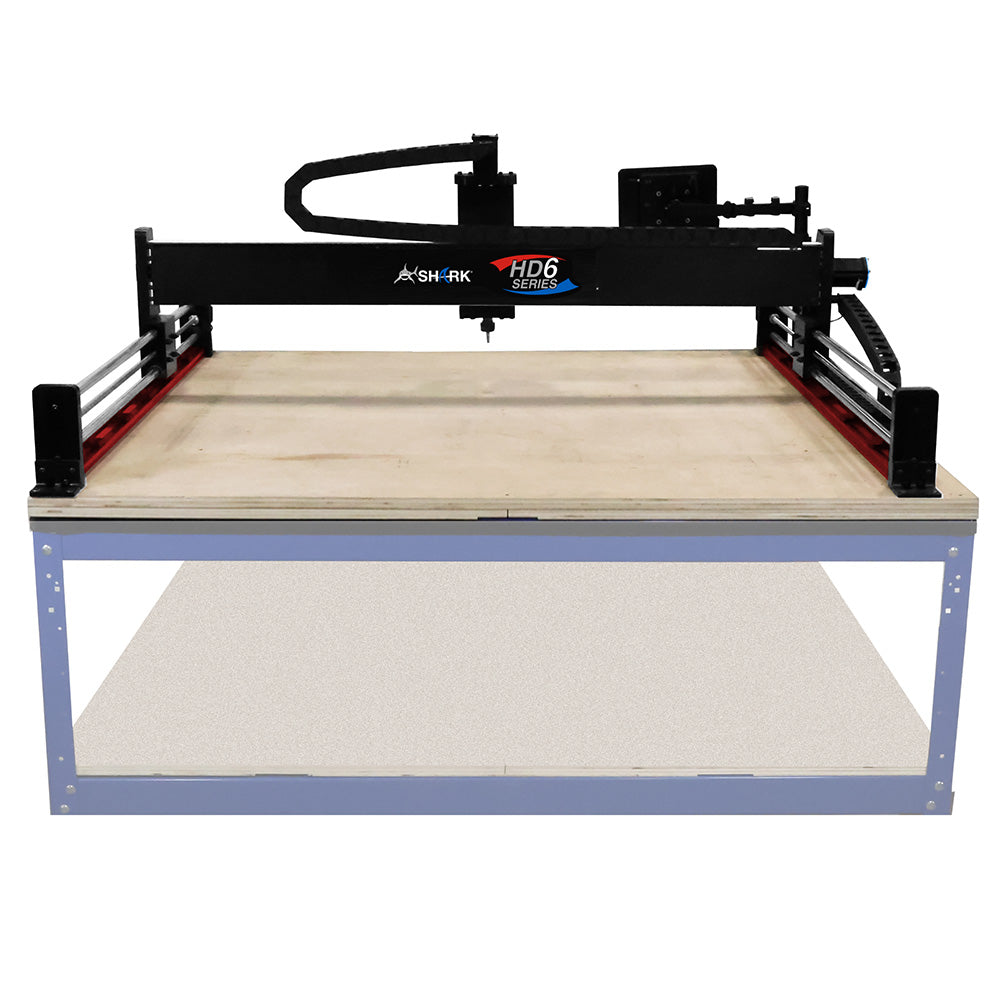

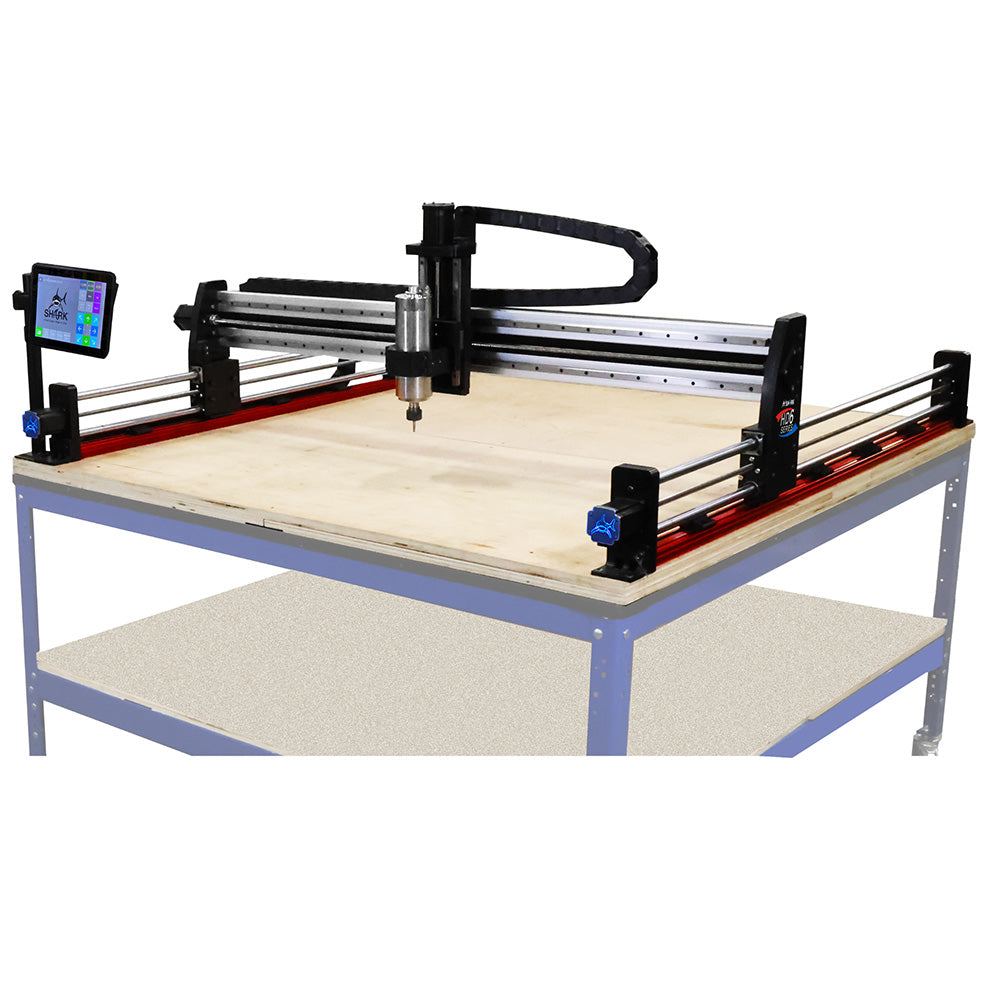

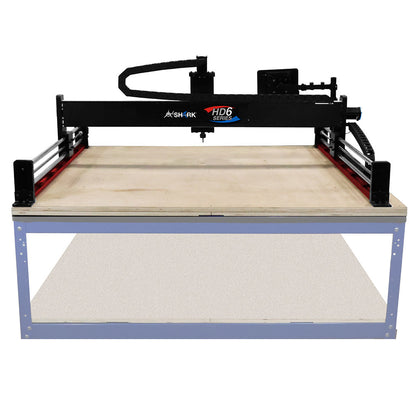

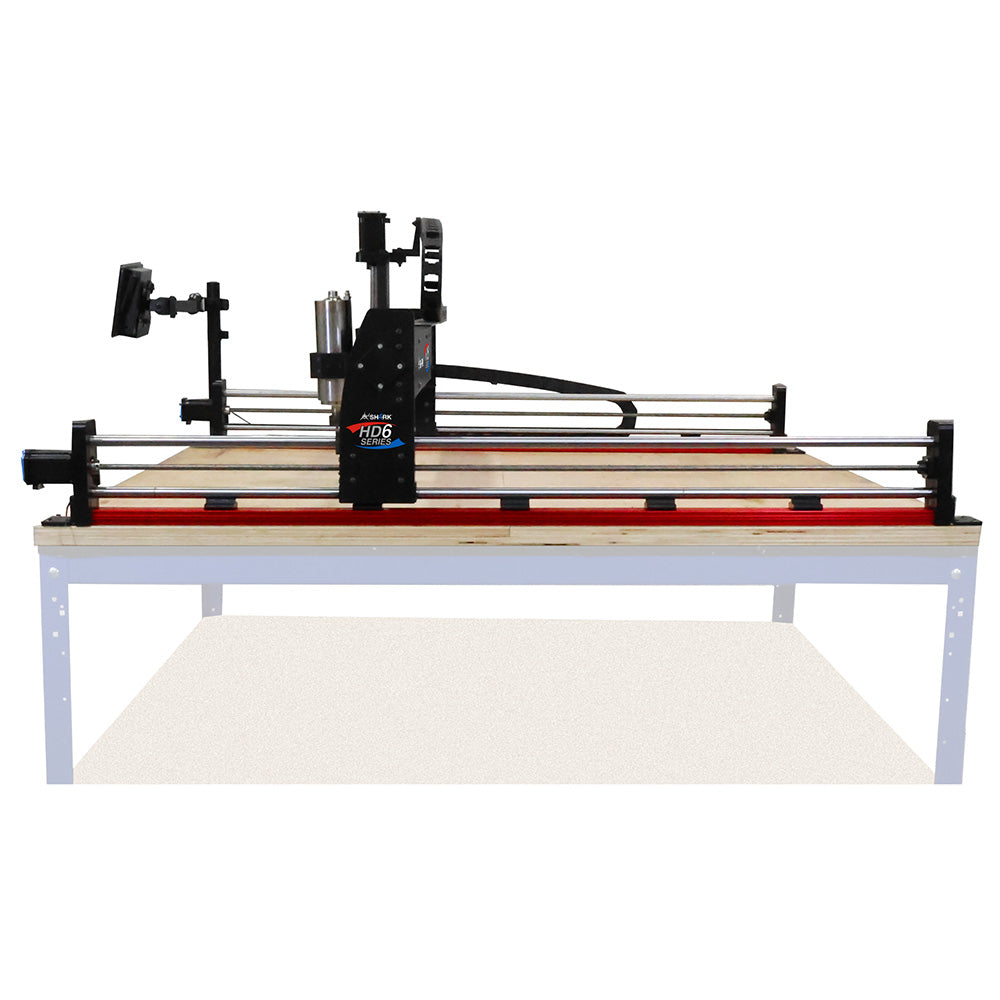

The Shark HD644 is built like a tank. Built with industrial-grade components including a reinforced aluminum/steel gantry, linear rails, fully closed loop motors, and anti-backlash lead screws, the Shark HD644 PRO is designed to perform. The Shark HD644 PRO package comes with a 3HP water-cooled spindle, 1/4" and 1/2" collets, and a 10.1" touchscreen pendant controller.
An expanded cutting area of 50" x 50" x 7" on the HD644 allows you to tackle large and complex projects with ease. The updated linear gantry design and lead screws provides superior accuracy and reliability, as well as higher speeds. The upgraded 36V controller electronics delivers increased power to the motor, enabling speeds up to 1,000 IPM!
The aluminum cradle is designed for any spindle motor with an 80mm barrel diameter. The included 3HP water-cooled spindle features digital control and comes with both a 1/2" and 1/4" collet. The HD644 has a true closed-loop, encoded motor system for superior torque, speed, and precision—accurate to +/-0.001".
The Shark HD644 works best with Vectric VCarve Pro software (sold separately), but it's also compatible with Aspire, Fusion 360, Cam Master, and more. Proudly made in the USA and carries a 2-year warranty.
Note: CNC does not come with table or wooden table top. Minimum table size is 64" length x 64" width. We recommend using a 68" x 68" table top with 1-1/2" depth (2 layers of 3/4" plywood).
[TABS]
Features
-
Expanded Cutting Area: 50” x 50” x 7” for tackling larger, more complex projects with ease.
-
Aluminum Spindle Cradle: Designed for any spindle motor with 80mm barrel diameter.
-
Powerful 3hp water Cooled Spindle: Includes digital control and 1/2″ & 1/4″ collets.
-
10.1" Android Pendant upgrade: Large screen, onboard memory, full CNC control at your fingertips.
-
Closed Loop / Encoded Motors: Offering increased speeds, and additional power and accuracy.
-
All-New Gantry Design: Engineered for superior accuracy and long-term reliability.
-
Upgraded Lead Screws: Precision components that allow for higher cutting speeds.
-
Precision-Ground, Vibration-Dampening Couplers: Ensures smoother operation and improved cut quality.
-
Larger Drag Chain: Accommodates both cables and spindle hoses for a cleaner, more organized workspace.
-
Redesigned Aluminum X-Box: Improved access for tramming and maintenance.
-
Upgraded 36V Controller Electronics: Delivers increased power to the motors, enabling speeds up to 1000 IPM with the true closed loop system, included on this Pro package.
- Made in the USA
- USA-based technical support
- 2-Year Warranty
Includes
- Virtual Zero Unlimited software
- Ready2Control software
- 3HP water-cooled spindle kit
- Collets, 1/4" and 1/2"
- 10.1" touchscreen pendant controller
- Full closed loop motor system
- Circular touch plate
- 90° carbide V-bit for sign carving
- (2) Hold down clamps
