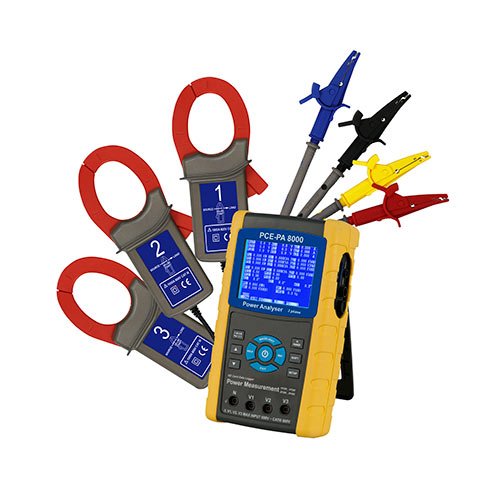

PCE PA 8000 Clamp Meter
Highlights:
- Real time measurement
- Data logging with the SD card
- Integrated timer and calendar to record data
- Active, apparent, and reactive power
The PCE PA 8000 Clamp Meter is designed to measure and record power in both single-phase and three-phase circuits, making it ideal for extended measurements. It saves measurement data in xls format on the included SD card, allowing for easy analysis on a computer. The sample rate for measurements can be adjusted between 2 and 7200 seconds. In addition to measuring power, the PCE-PA 8000 can also determine power factor and phase angle. Its clamps accommodate cables with a diameter of up to 50 mm / 2.0 in. With its 3.7 in / 94 mm display, the PCE-PA 8000 Clamp Meter provides a clear view of current, voltage, and power, making it the perfect tool for use in power supply networks.
Key Features:
- Analysis of a network of 3 phases / 4 conductors, 3 phases / 3 conductors, 1 phase / 2 conductors, 1 phase / 3 conductors
- Measures effective real value of current and voltage
- Measures active, apparent, and reactive power
- Power Factor (PF), phase angle (F)
- Measures voltage up to 600 V
- Measures current up to 1200 A
- It meets the IEC 1010 and CAT III 600 V standards
- Integrated timer and calendar to record data
- Measured values are recorded in the included SD card
- Data is stored in Excel format for further study
- Data can be transferred to a PC through data cable

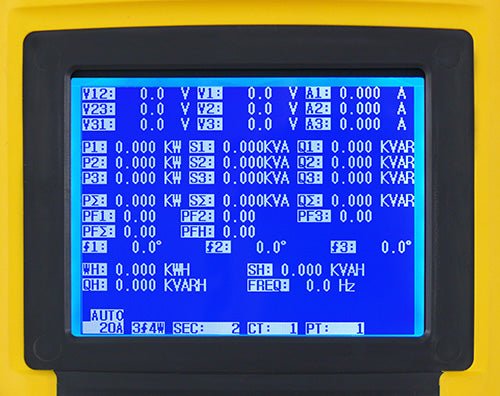

- Large 3.7 in / 94 mm LCD display
Specifications:
- Display: 3.7 in / 94.0 mm LCD (320 x 240 pixels) with LED backlight
- Electrical properties: AC V, AC A, active power, apparent power, power factor, phase angle, mains frequency
- Voltage ranges: 10 V ... 600 V AC, automatic range selection
- Security / Standards: IEC1010CAT III 600V
- AC V input resistance: 10 MO
- Operation frequency of current clamps: 40 Hz ... 1 kHz
- Tested operation frequency of current clamps: 45 Hz ... 65 Hz
- Overload protection: AC V / 720 V rms
- AC A: 1300 A with current clips
- Memory: SD card up to 16 GB
- Measurement display rate: 1 second
- Data logger: SD
- Measurement sample rate: 2 seconds... 7200 seconds
- Data output: USB or RS-232, depending on the connection cable
- Operating temperature: 0º C ... 50º C / 32° F ... 122° F
- Operating humidity: < 80 % H.r.
- Power: 8 x 1.5 V AA batteries / mains component
- Input current:
- Meter: 300 mA DC
- Clamp: 34 mA DC
- Max. diameter: 50 mm / 1.9 in
- Weight
- Meter: 948 g / 33.4 oz (with batteries)
- Clamp: 467 g / 16.4 oz (with cable)
- Dimensions:
- Meter: 225 mm x 125 mm x 64 mm / 8.8 in x 4.9 in x 2.5 in
- Clamp: 210 mm x 64 mm x 33 mm / 8.2 in x 2.5 in x 1.2 in
- Jaw: 86 mm / 3.3 in (exterior)
What’s Included:
- 1 x PCE-PA 8000 Clamp Meter

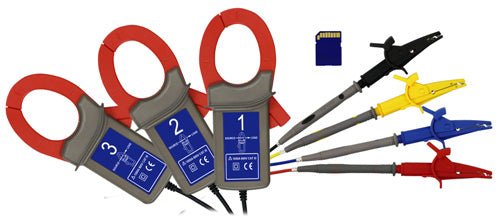

- 3 x Current clamps
- 4 x Test cables
- 4 x Alligator clips
- 1 x 2 GB SD card
- 1 x 9 V DC mains component
- 8 x Batteries 1.5 V AA

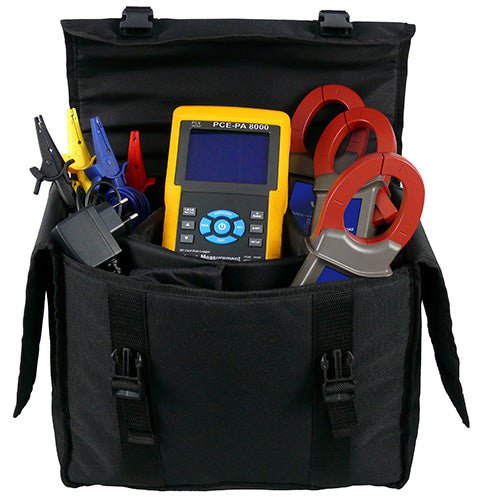

- 1 x Carrying case
PCE-PA 8000 User Manual
PCE-PA 8000 Data Sheet
Need more info? Please contact us or go to the PCE Resource Center.
