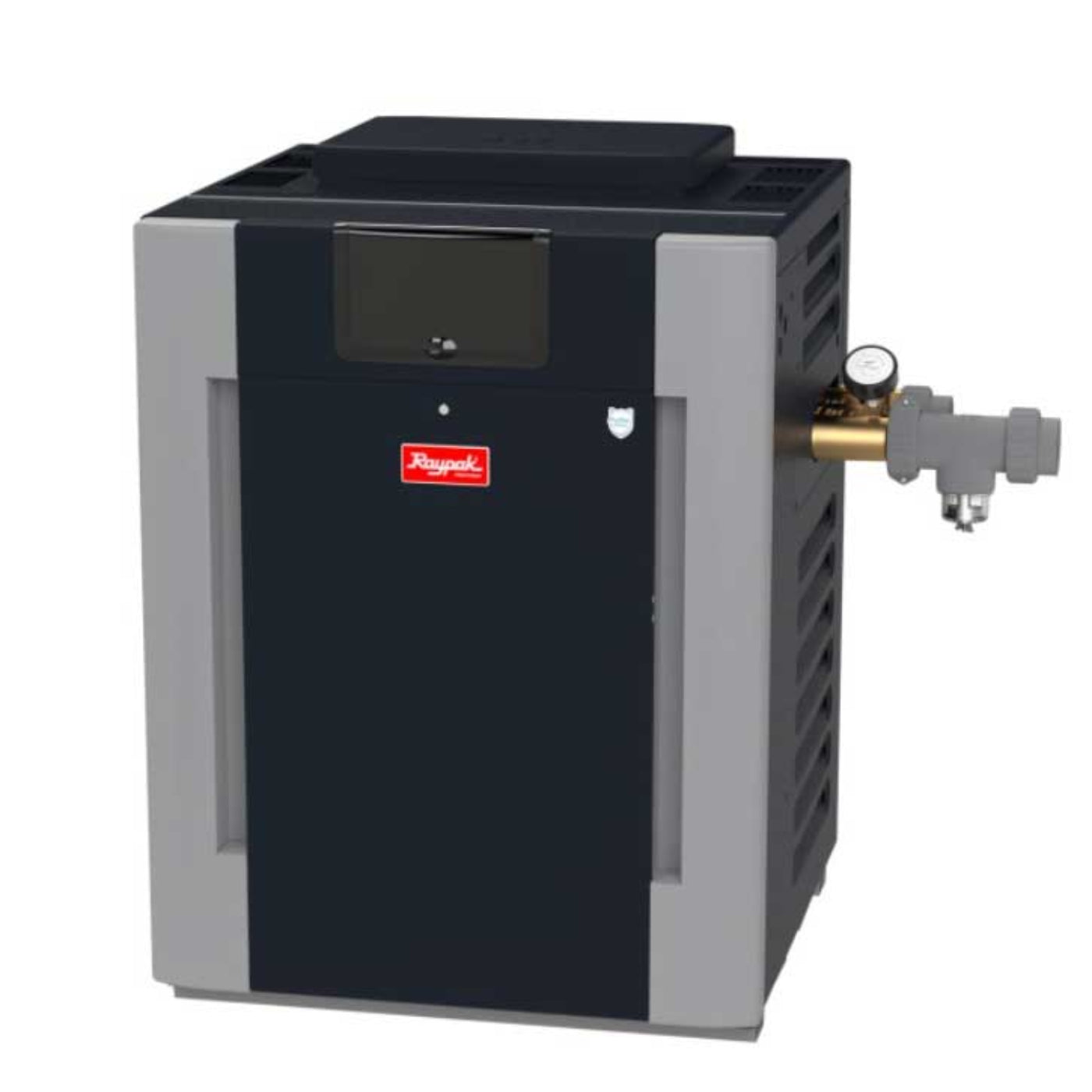

Raypak 267A Low NOx Digital Natural Gas ASME Heater with Bronze Headers - 017706
The Raypak 267A ASME Low NOx Pool Heater (Model 017706) is built for performance and durability in both commercial and high-end residential settings. With its bronze headers and 260,000 BTU heating capacity, it offers exceptional corrosion resistance and robust heat transfer. The low-NOx design makes it compliant in environmentally regulated areas such as California and Texas. Designed with a sleek digital control system, this unit ensures accurate temperature regulation and simplified maintenance.
Features
-
Low NOx Emissions: Environmentally responsible design meets air quality standards in all low-NOx regions.
-
260K BTU Output: Delivers fast and consistent heating for larger residential or light commercial pools.
-
Bronze Headers: Heavy-duty cast bronze headers provide superior durability and long-term reliability.
-
Digital Control Panel: Easy-to-use LED display with self-diagnostics and temperature precision control.
- Commercial and semi-commercial pools and spas
- Residential installations requiring ASME and Low NOx compliance
- Ideal for saltwater, chlorinated, or high-use pools
Specifications
| Model Number |
017706 |
| Manufacturer / Series |
Raypak Digital ASME (260A Series) |
| BTU Output |
260,000 BTU |
| Fuel Type |
Natural Gas |
| ASME Certified |
Yes (commercial-grade compliant) |
| Emissions |
Low NOx Certified |
| Heat Exchanger |
Copper fin-tube |
| Header Material |
Bronze (corrosion-resistant) |
| Ignition System |
Electronic spark-to-pilot |
| Control System |
Digital electronic with onboard diagnostics |
| Cabinet Material |
Galvanized steel with polyester coating (weather-resistant) |
| Water Connections |
2” NPT |
| Voltage |
120 / 240 V (field convertible) |
| Application |
Pools & Spas (Residential / Commercial) |
| Weight |
~230–235 lbs |
| Special Features |
ProTek Shield, Unitherm Governor, corrosion-resistant design, high-wind performance |
Included
- Raypak 267A Low NOx ASME Pool Heater (Model 017706)
- Owner’s manual and installation instructions
- Connection unions for plumbing
What our Experts Think
-
Low NOx Performance: Meets stringent emissions standards while delivering dependable heating.
-
Digital Precision: Intuitive electronic controls offer accurate temperature management and simple operation.
-
Durable Construction: Bronze headers enhance corrosion resistance and extend service life.
-
Efficient & Reliable: Designed for consistent, efficient heat delivery in a range of pool sizes.
-
Pro‑Recommended: Pool and HVAC technicians value its ease of installation, maintainability, and long‑term performance.
Q&A
Q: What is the Raypak 017706?
A: A 267A Low NOx digital natural gas pool heater with bronze headers, ASME-certified for safe and efficient operation.
Q: Which pools is it suitable for?
A: Designed for medium to large residential or commercial pools requiring energy-efficient, low-emission heating.
Q: What are the benefits of Low NOx technology?
A: Reduces nitrogen oxide emissions for environmentally friendly operation while maintaining high heating performance.
Q: Why choose bronze headers?
A: Provides superior corrosion resistance, durability, and efficient heat transfer for long-lasting performance.
Q: Is professional installation recommended?
A: Yes, to ensure safety, optimal performance, and compliance with ASME standards.
Maintenance Tips
- Flush the heater annually to remove scale and sediment buildup.
- Maintain balanced water chemistry to protect bronze headers and internal components.
- Inspect and clean burners, ignition system, and heat exchanger regularly.
- Check gas connections and fittings for leaks and proper sealing.
- Keep the surrounding area clear of debris for proper airflow.
- Schedule professional servicing each season to ensure safety and efficiency.
