- Machine configuration

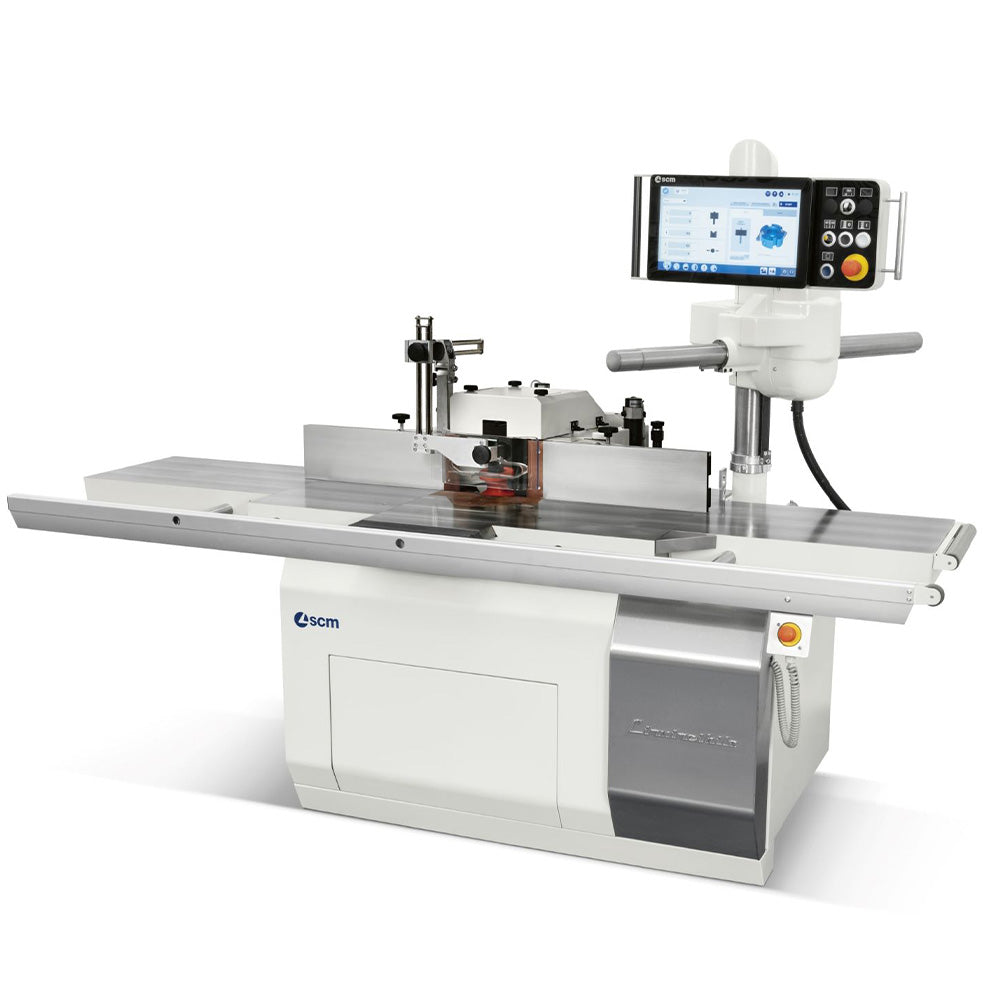

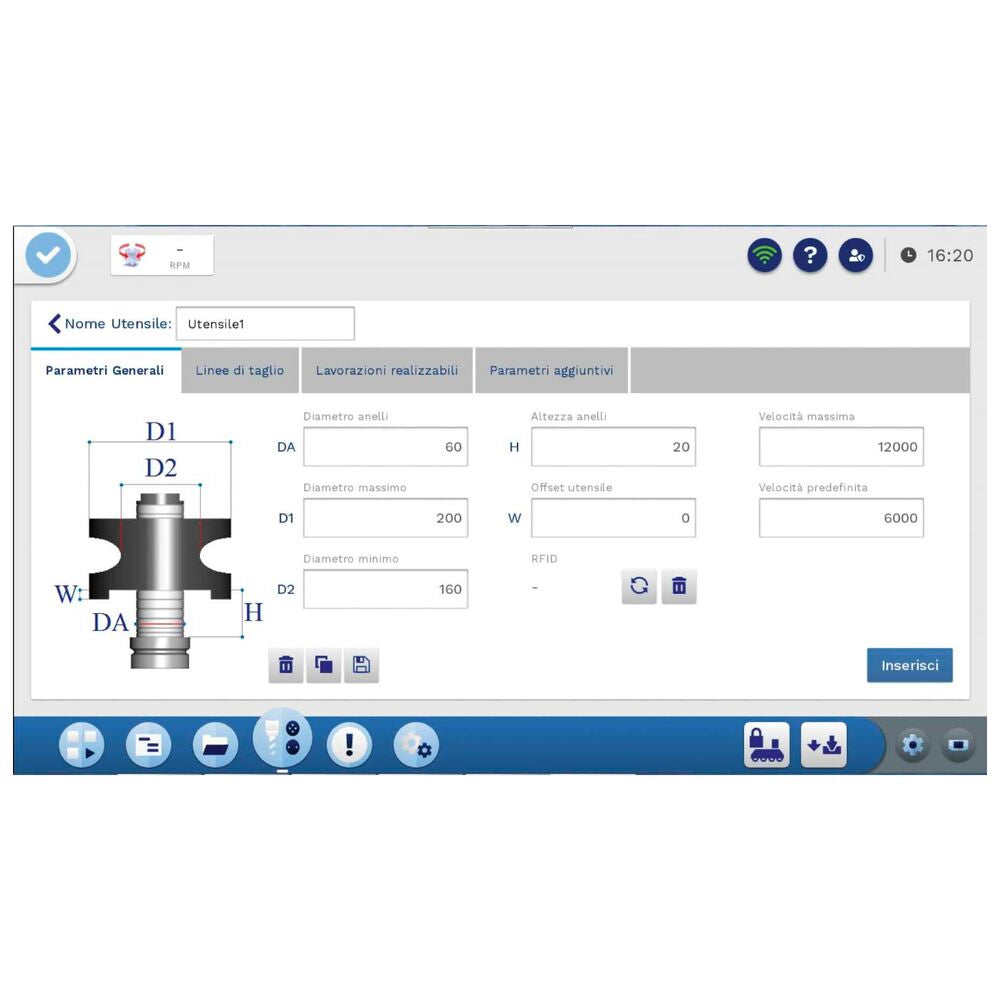

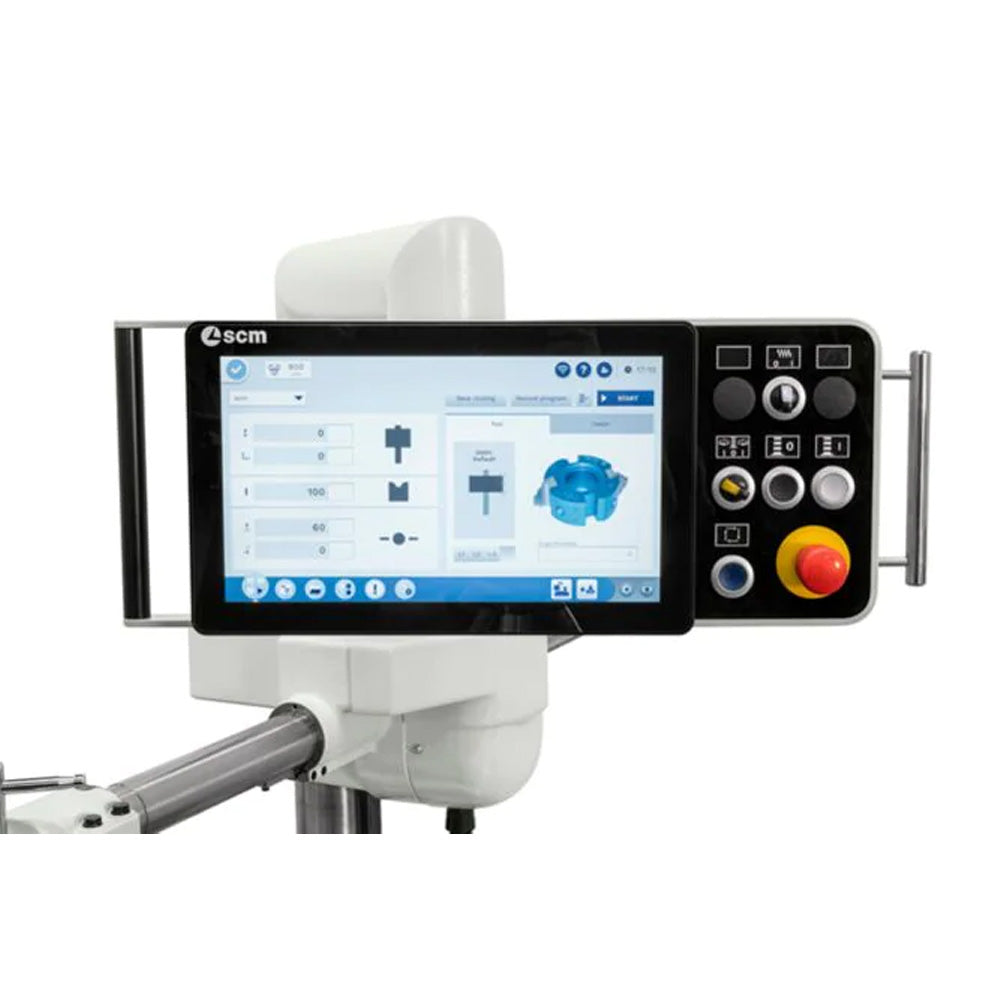

The L’invincibile TF 5 combines old world quality with new age technology. It comes standard with the "Eye-S," a 15" touch-screen control panel that gives you full control of up to 4 working axes: spindle height, shaft rotating speed, "FAST" table, and whole fence assembly. The Eye-S also has storage capacity for up to 1,000 programs and 1,000 tools.

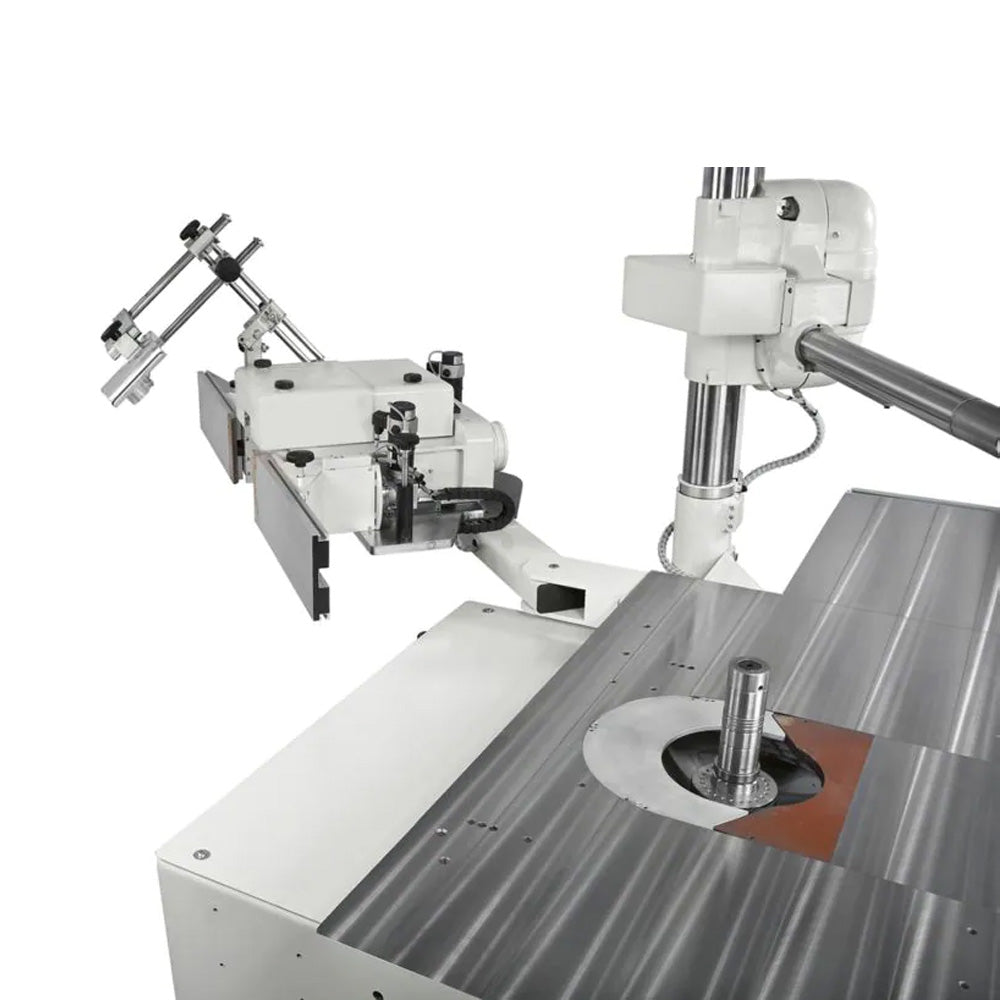

The "FLEX" fence can retract and be re-positioned on the worktable in one simple movement. It can also be moved away from the worktable if needed. Includes aluminum profiling fence with connecting bars.

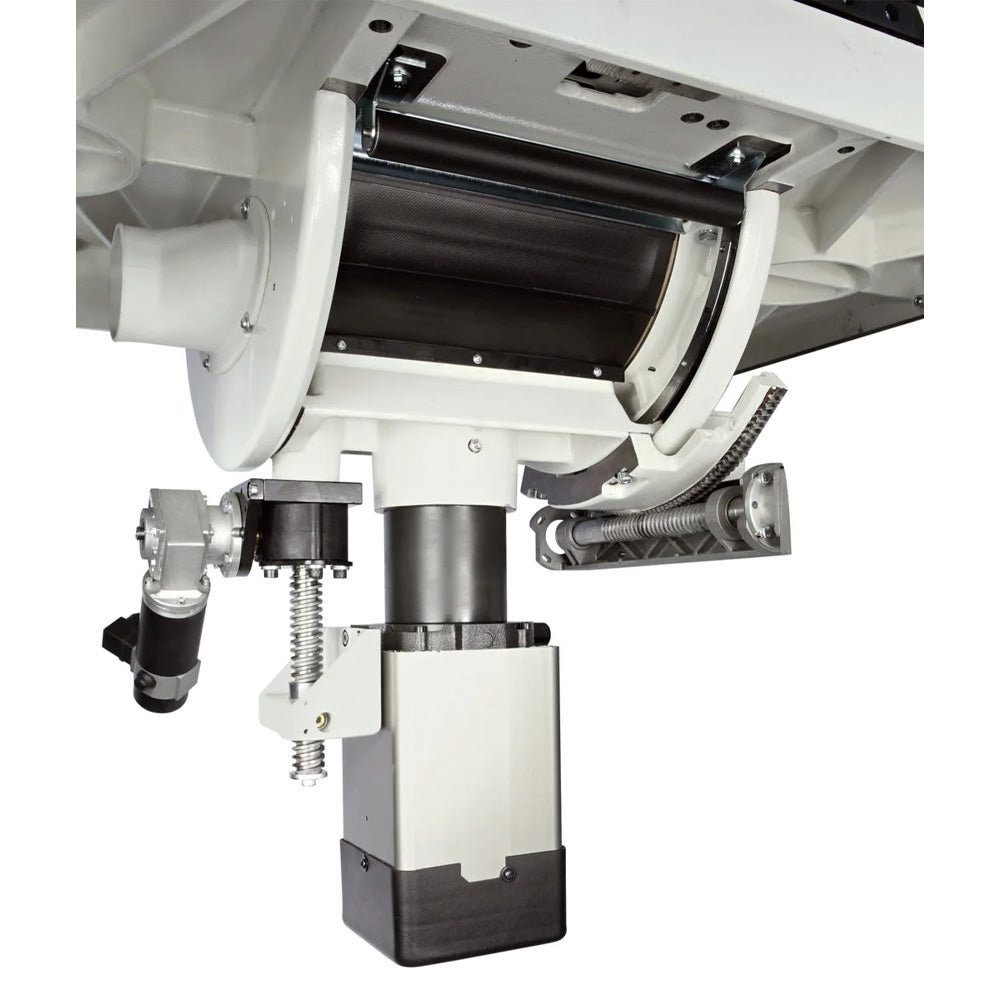

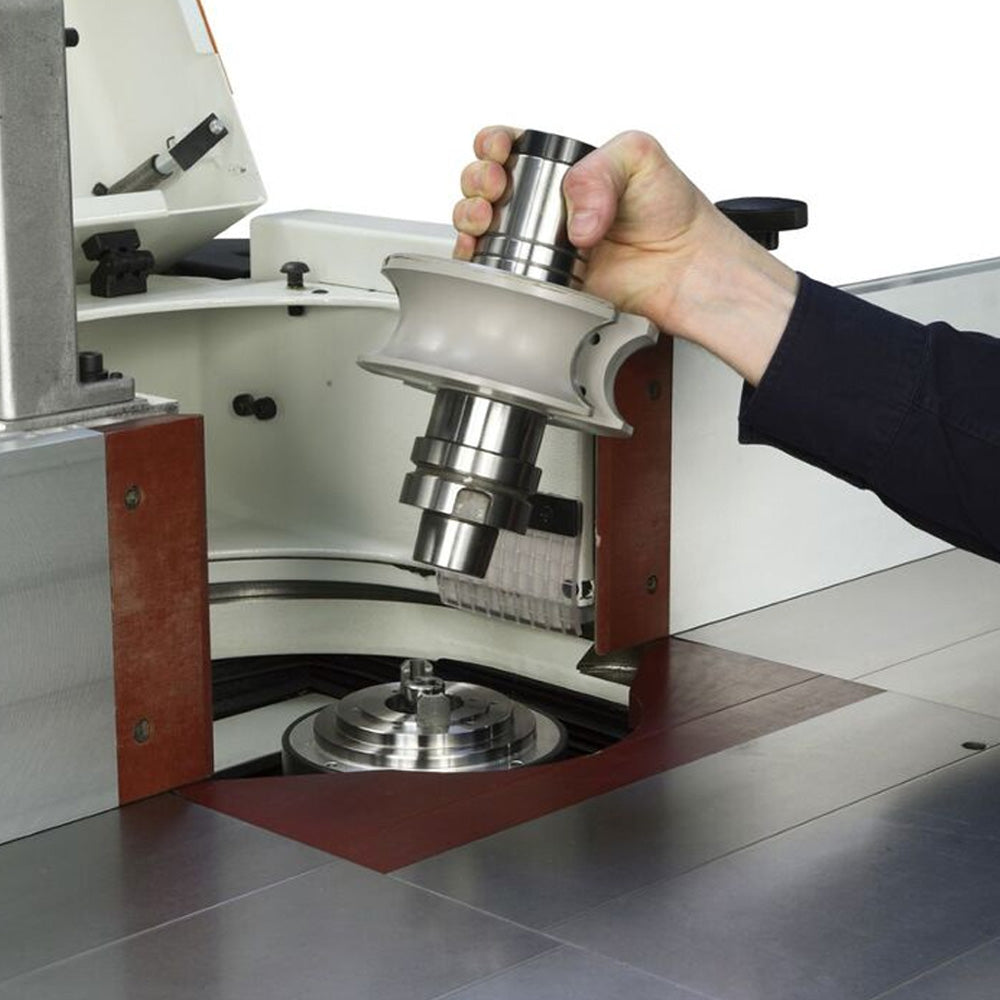

This "H-E version" features an HSK 63B rapid tool changer for proper alignment, a 10HP electrospindle, an air blower system to maintain clean coupling surfaces, and an inverter for electronically programming the shaft's rotating speed (900 - 12,000 RPM).
Safety/protections on the TF 5 include:
- Spindle protection
- Mechanical brake on main motor
- Safety sensors for changing tool operation
- Rotating stop control, tool taper locking/unlocking
- Safety microswitch on motor access door
- Emergency push buttons
- Main power switch can be locked in the off position
- Overload switch protection
- 24V auxiliary low voltage circuit
[TABS]
Features
- "Eye-S" 15" touch-screen display
- HSK 63B Spindle, 1-1/4"
- Air blower system to maintain clean coupling contact surfaces
- 10HP electrospindle
- No. 4 tool-holder shafts with HSK 63B taper
- FLEX fence with auto adjustment
- Electric presetting for feeder support

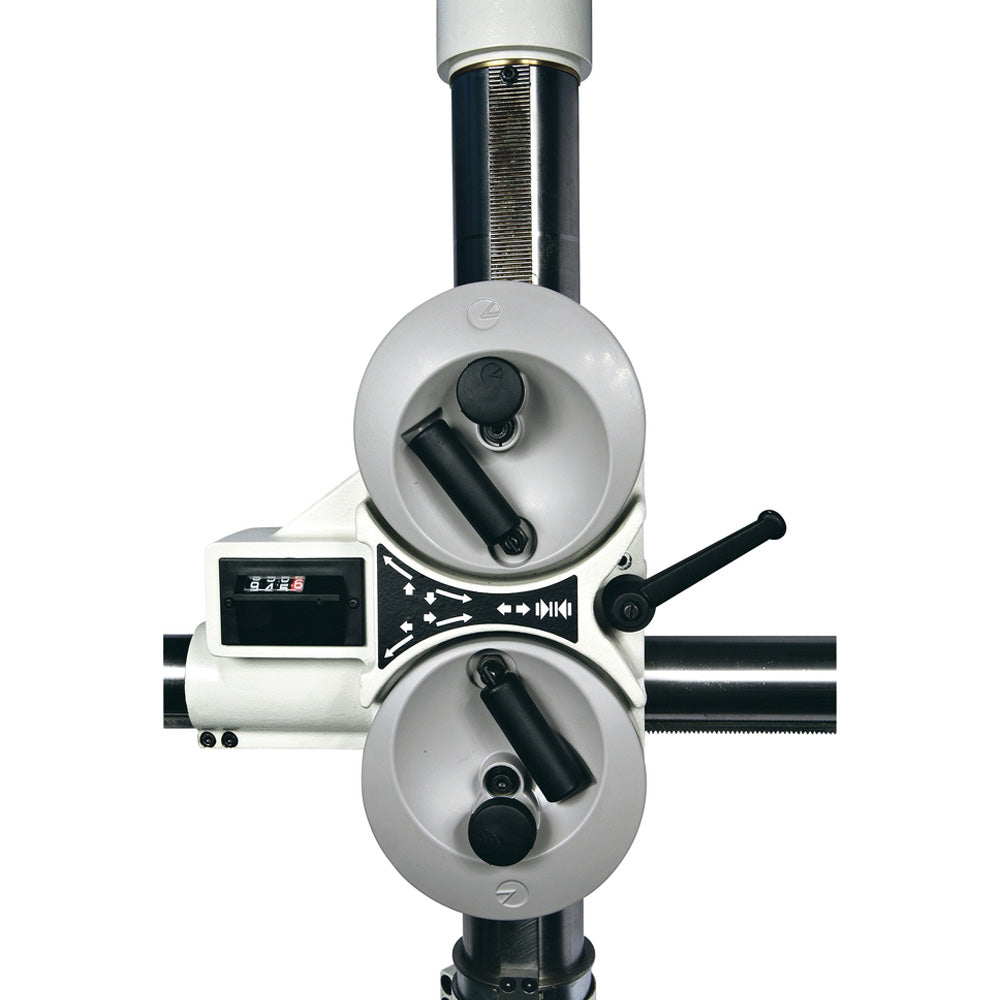

- Manual vertical and horizontal feeder support
- Reverse spindle rotation

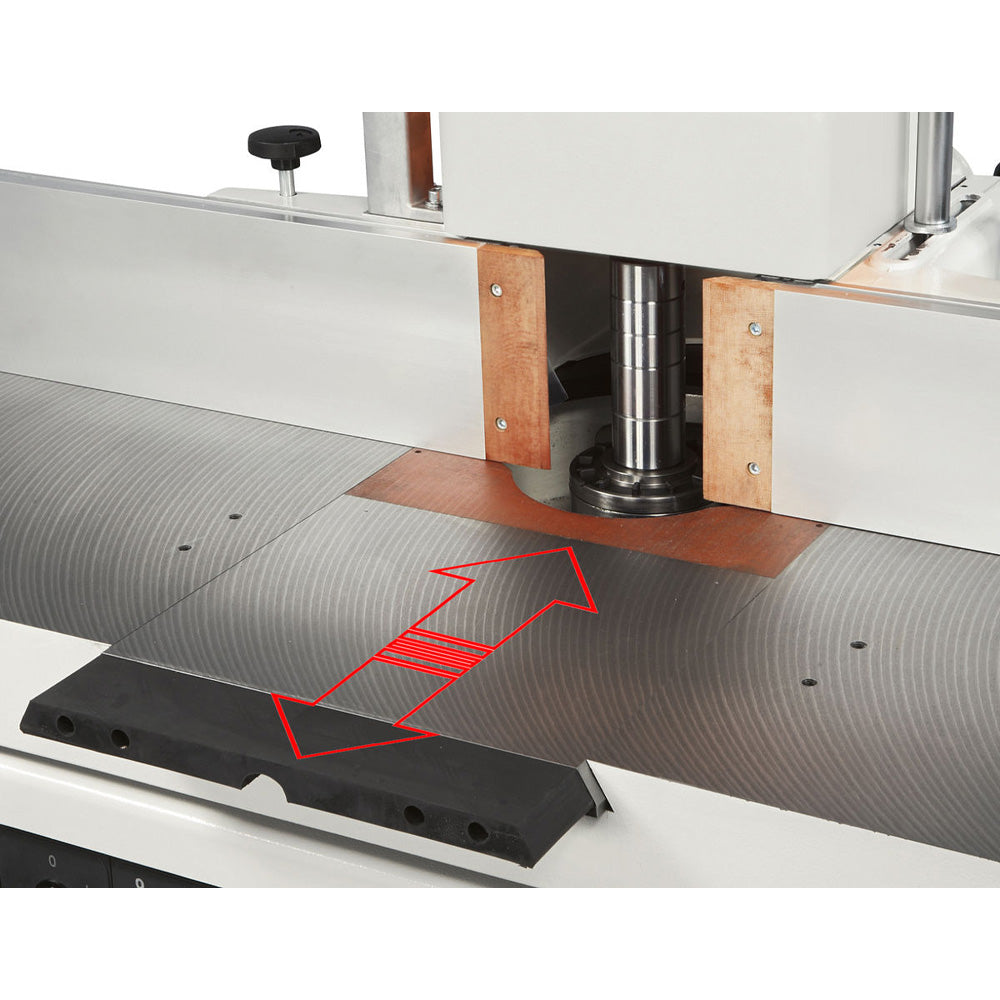

- "FAST" section table with auto adjustment
- Auto star-delta start
Specs
Motor power: 10hp (7.5 kW)
Worktable dimensions: 47.19" x 28.69" (1,200 x 730mm)
Working length of spindle: 5.5" (140mm)
Spindle base projection from table: 2" (52mm)
Max. tool dia. retractable (under table): 11.75" x 3.31" (300 x 85mm)
Dust port dia.: 4.69" (120mm)
*Electrical requirements: 220V/400V, 3-phase, 60 Hz (machine is 400V and includes an autotransformer for 220V - 400V)
*Subject to change; must be verified prior to installation.
