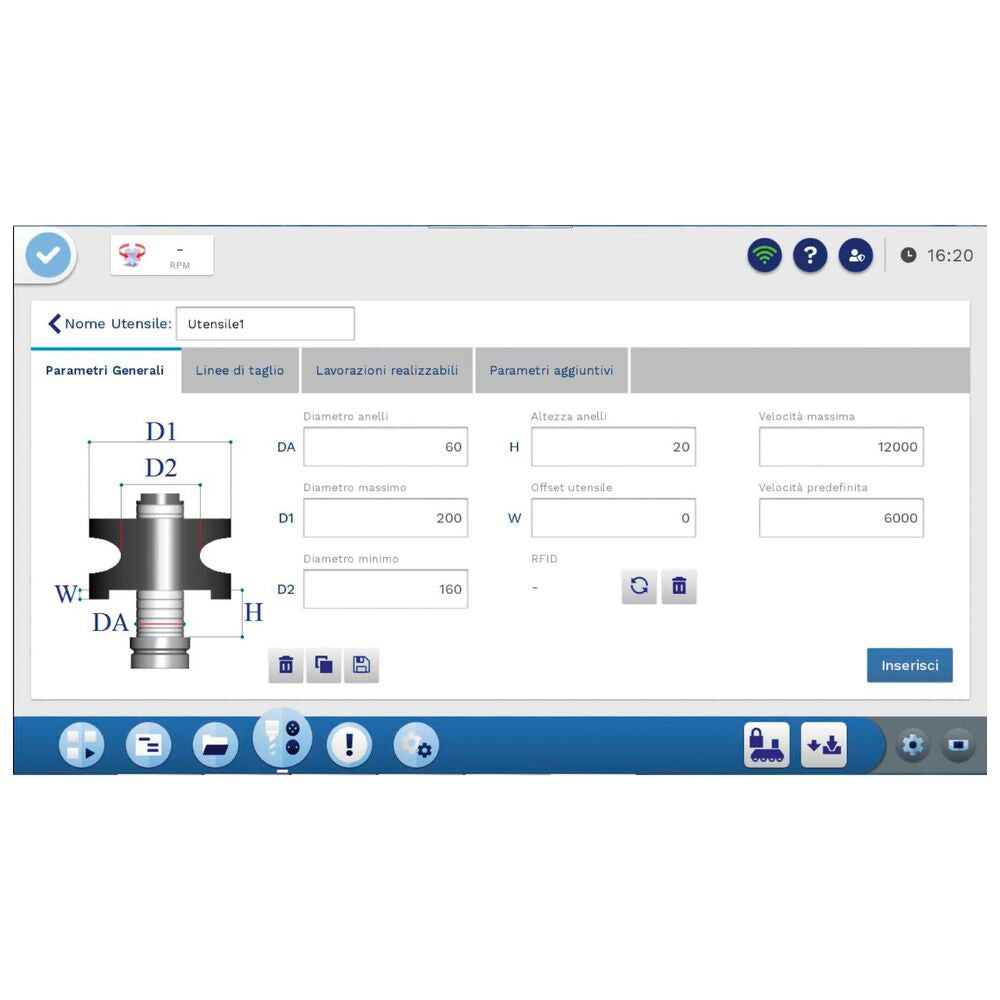

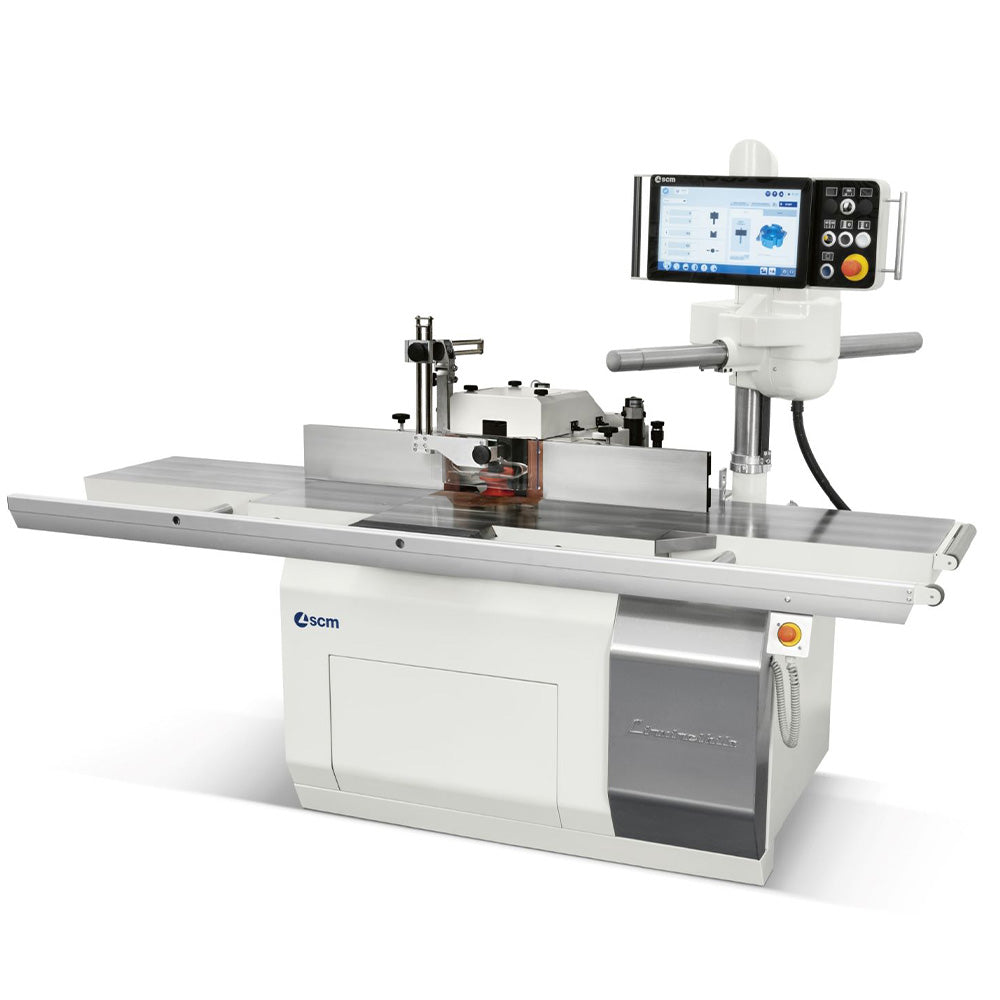

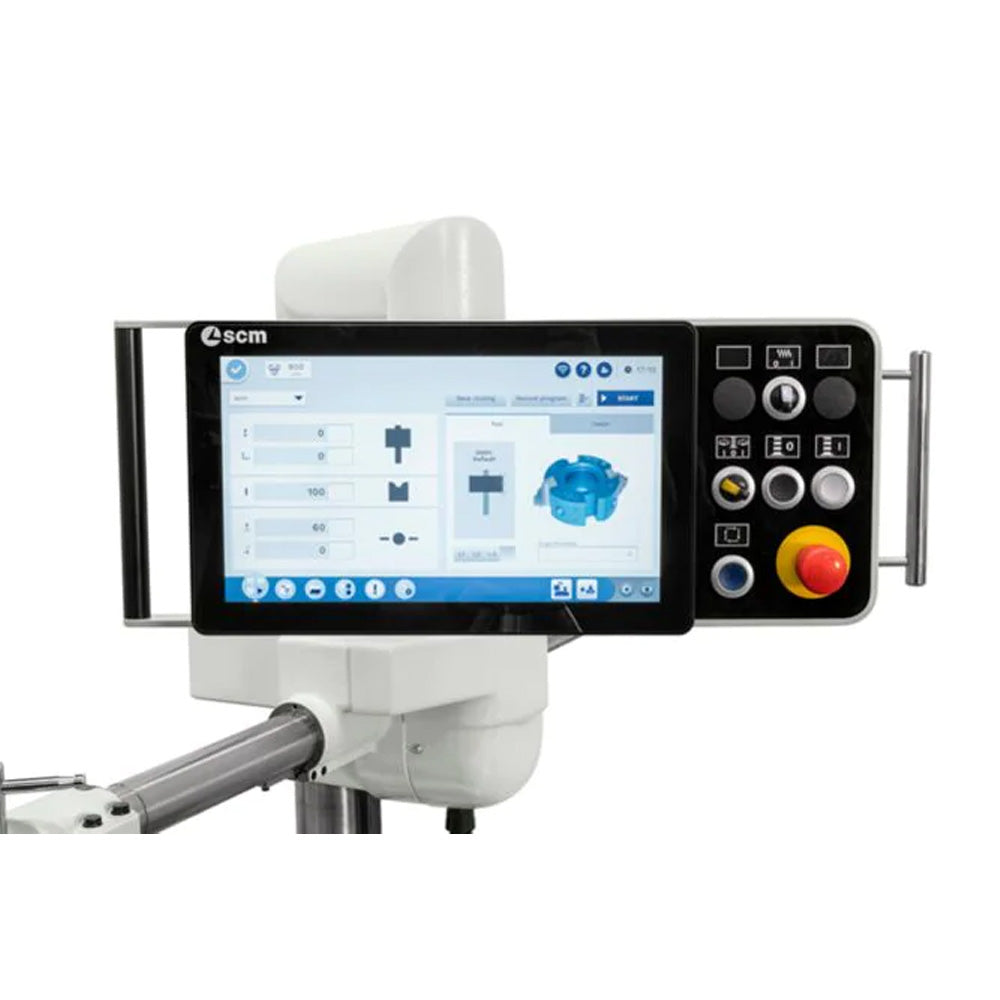

The L’invincibile TF 5 combines old world quality with new age technology. It comes standard with the "Eye-S," a 15" touch-screen control panel that gives you full control of up to 4 working axes: spindle height, shaft rotating speed, "FAST" table, and whole fence assembly. The Eye-S also has storage capacity for up to 1,000 programs and 1,000 tools.

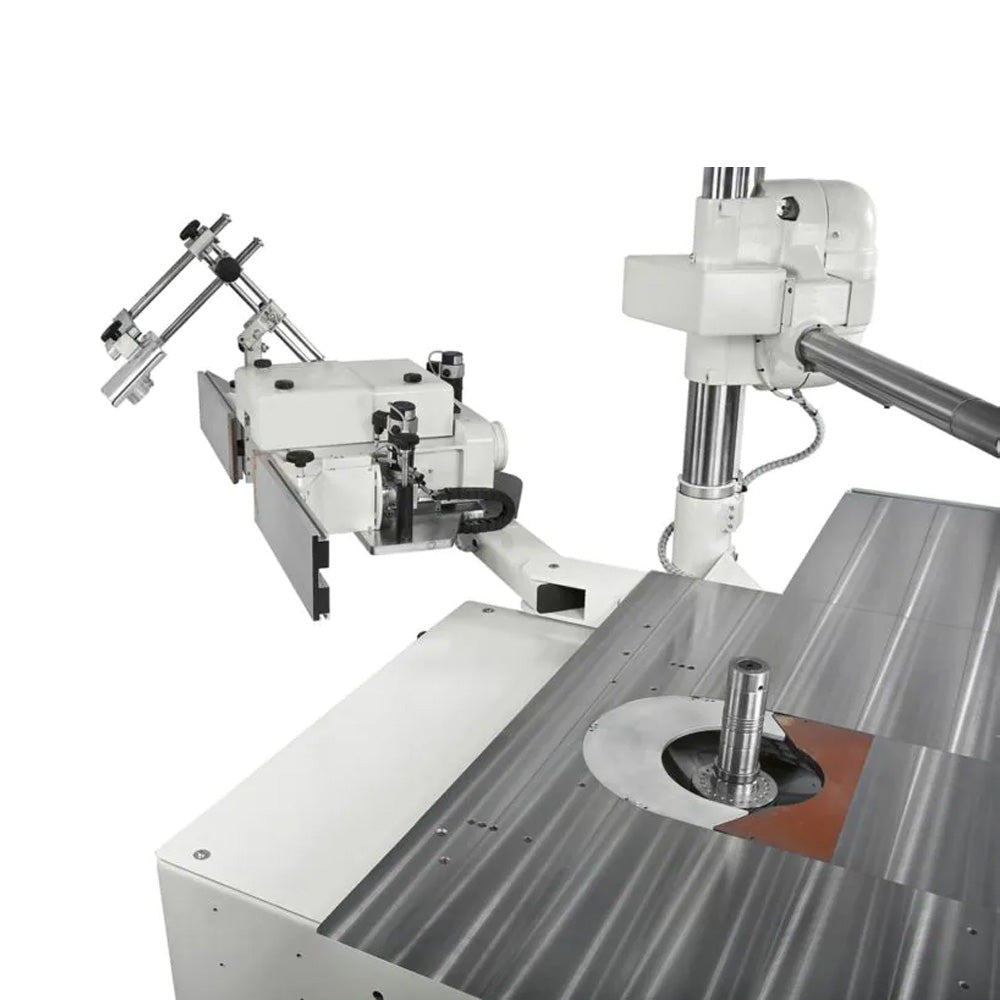

The "FLEX" fence can retract and be re-positioned on the worktable in one simple movement. The entire fence can be moved with reference to the tool diameter. It can also be moved away from the worktable if needed. Includes aluminum profiling fence with connecting bars.

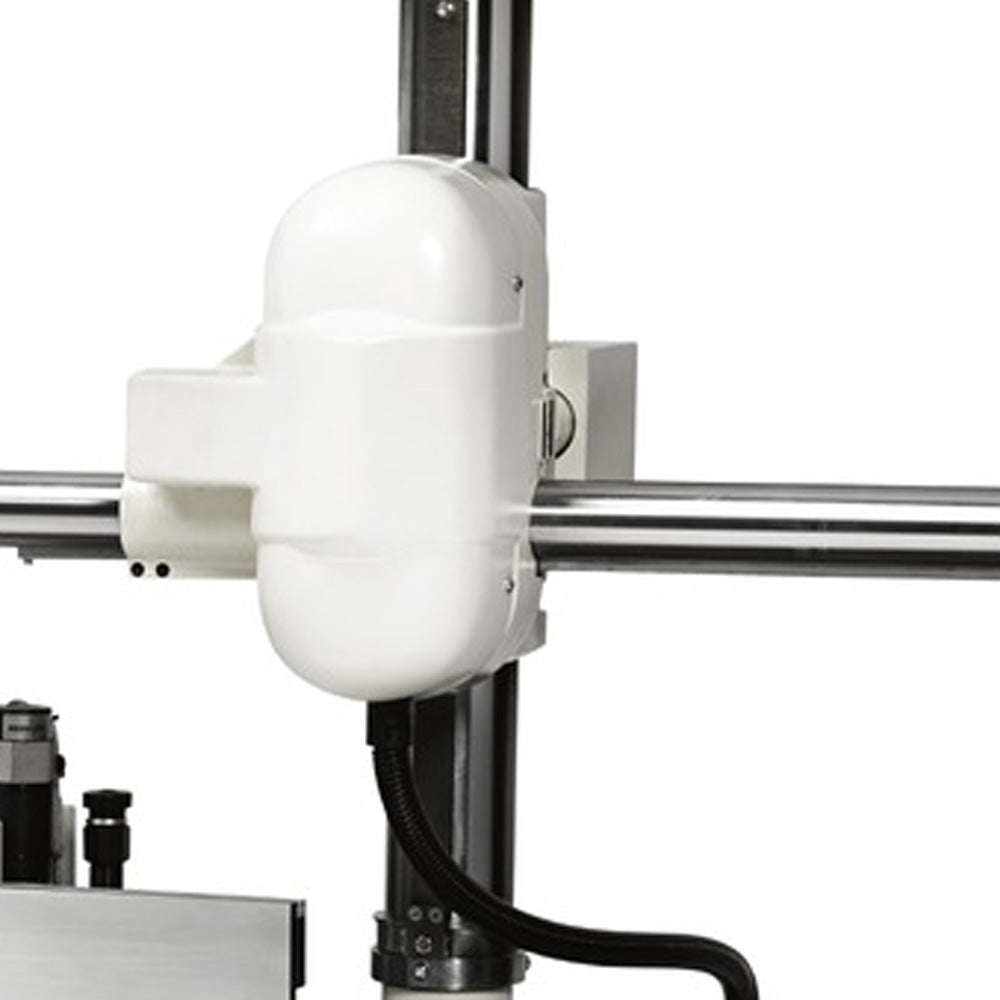

This "EASY TOP version" features an auto adjusting feeder support controlled directly via the EYE-S panel. The feeder support can be adjusted vertically for precise positioning based on the thickness of the workpiece, as well as horizontally adjusted relative to the tool's diameter. There is an auto pneumatic locking system to ensure secure positioning, and the column support design allows the feeder to be easily swung or moved away from the table when not in use.

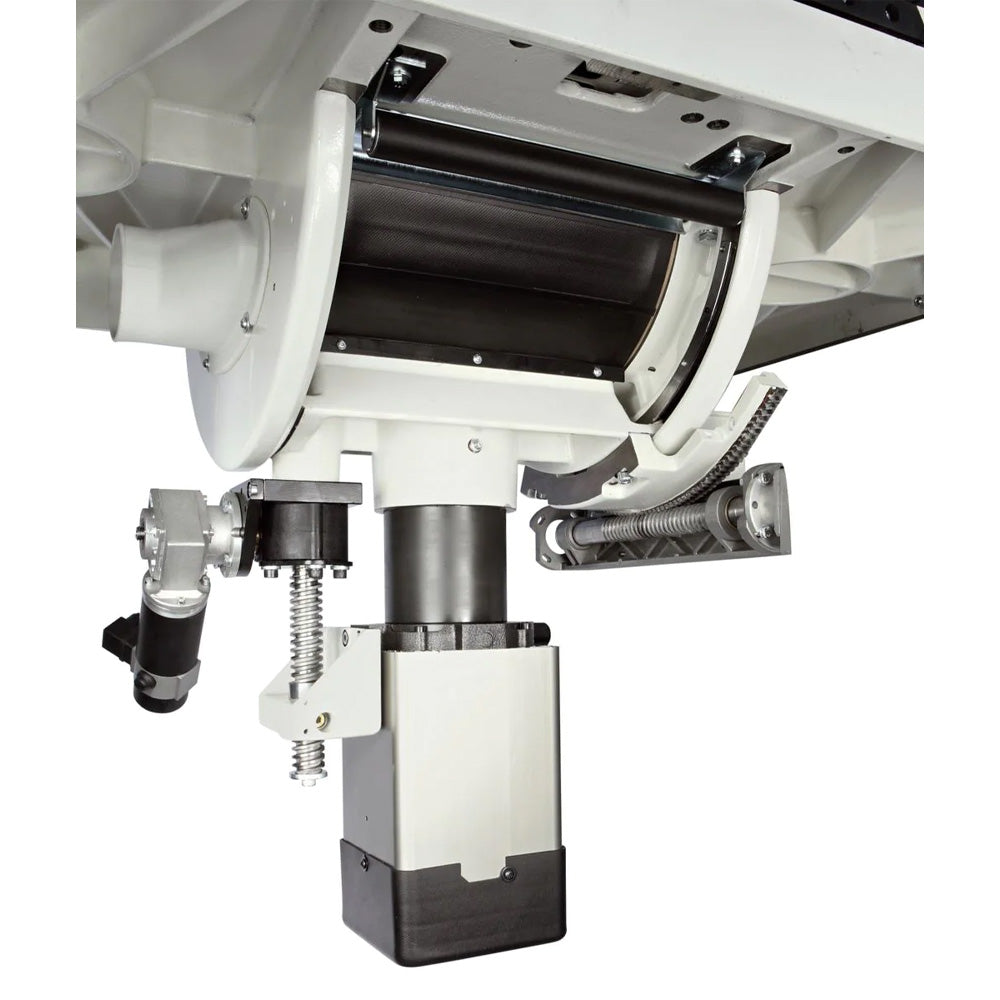

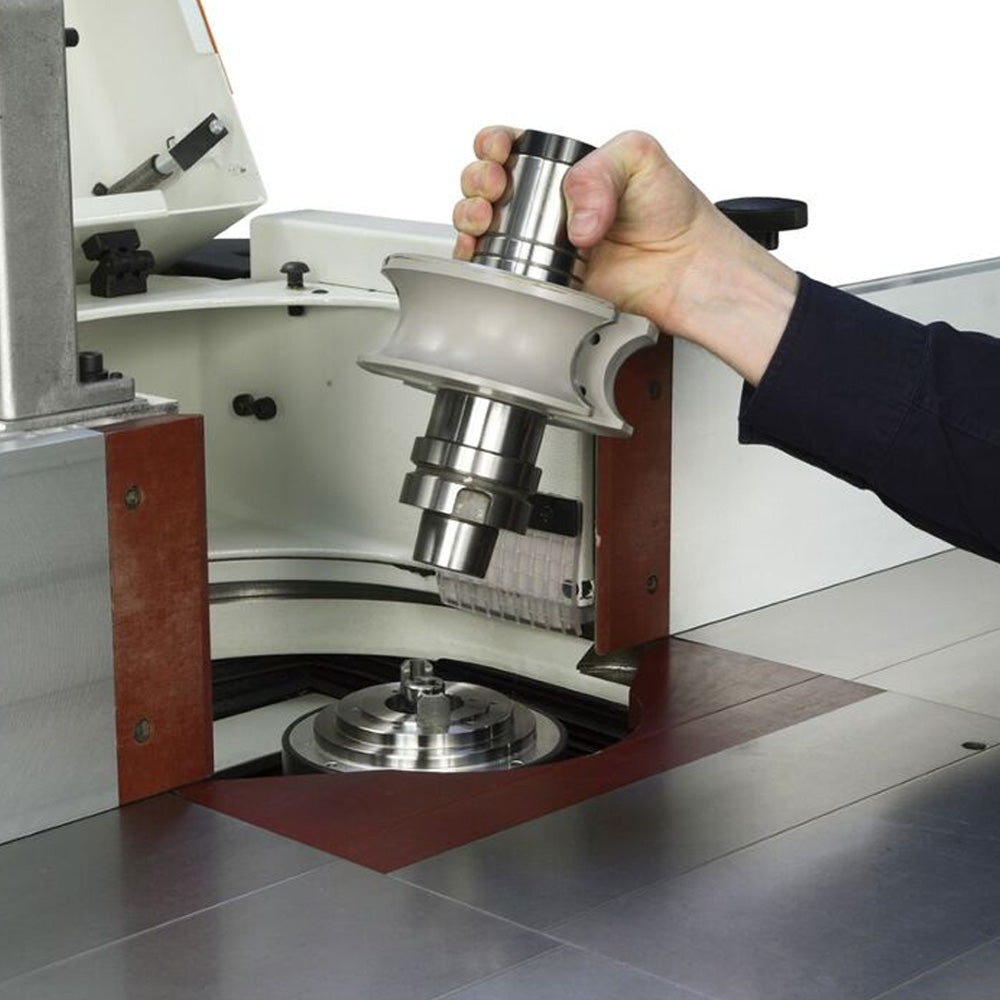

On the TF 5 you will also find an HSK 63B rapid tool changer for proper alignment, a 10HP electrospindle, an air blower system to maintain clean coupling surfaces, and an inverter for electronically programming the shaft's rotating speed (900 - 12,000 RPM).
Safety/protections on the TF 5 include:
- Spindle protection
- Mechanical brake on main motor
- Safety sensors for changing tool operation
- Rotating stop control, tool taper locking/unlocking
- Safety microswitch on motor access door
- Emergency push buttons
- Main power switch can be locked in the off position
- Overload switch protection
- 24V auxiliary low voltage circuit
Optional Installation & Training
When purchased, installation will be performed by an SCM factory-trained service technician or certified dealer technician. Installation is defined as assembling the machine to its "ready-to-run" state; it does not include floor/masonry work or running electrical, pneumatic, or dust extraction services. Training will be conducted on site by the technician after installation is completed.
Warranty
SCM warrants that every machine is free of defects in workmanship and materials for a period of one (1) year beginning on the date the machinery is accepted by the customer. Belts, bearings, and common electrical parts carry a six-month warranty. This warranty does not include wearable items or maintenance required in the ordinary course of operation.
[TABS]
Features
- "Eye-S" 15" touch-screen display
- HSK 63B Spindle, 1-1/4"
- Air blower system to maintain clean coupling contact surfaces
- 10HP electrospindle
- No. 4 tool-holder shafts with HSK 63B taper
- FLEX fence with auto adjustment
- Electric presetting for feeder support

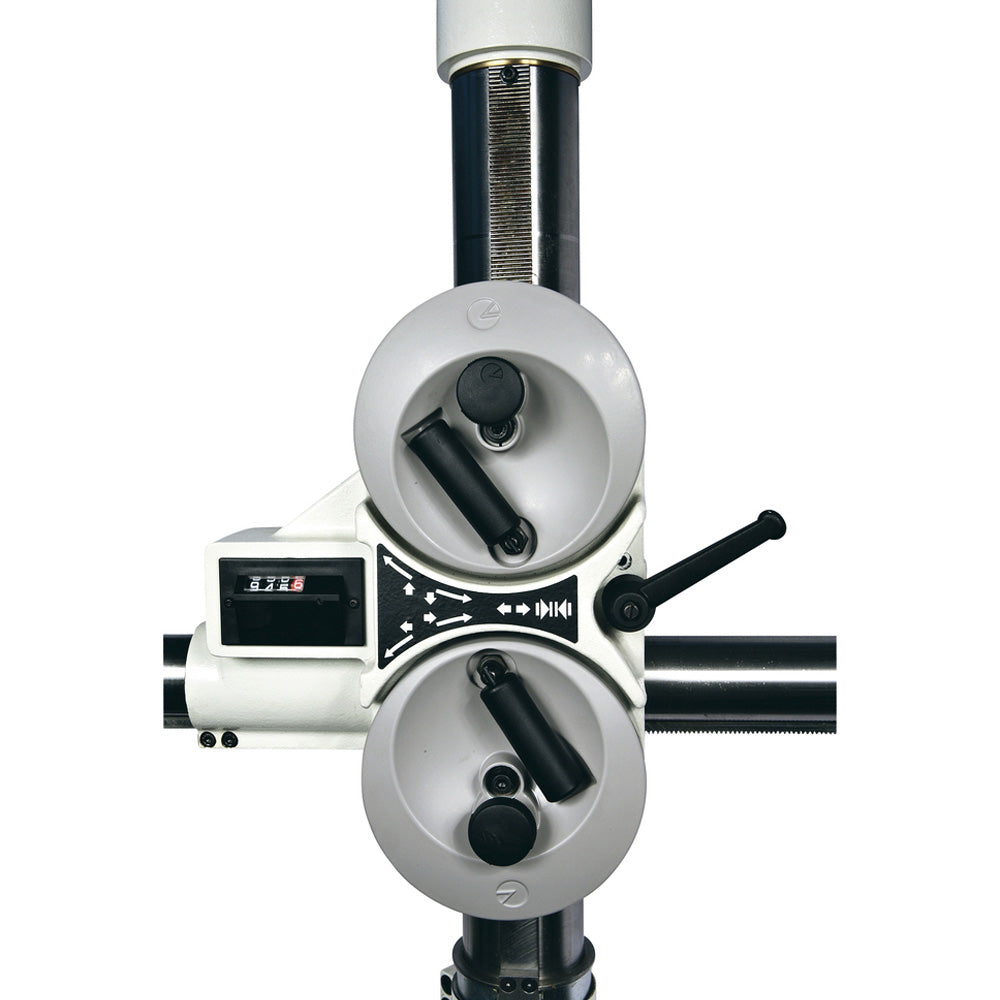

- Manual vertical and horizontal feeder support
- Reverse spindle rotation

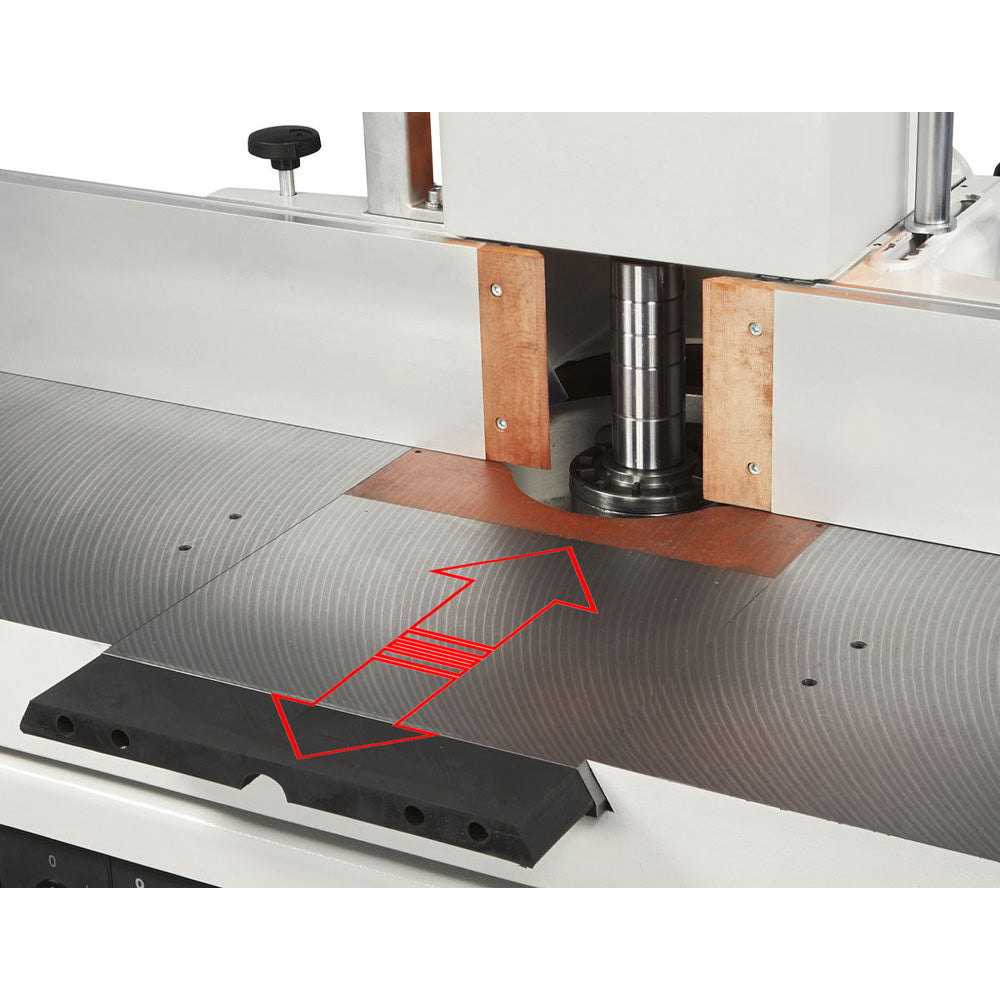

- "FAST" section table with auto adjustment
- Auto star-delta start
Specs
Motor power: 10hp (7.5 kW)
Worktable dimensions: 47.19" x 28.69" (1,200 x 730mm)
Working length of spindle: 5.5" (140mm)
Spindle base projection from table: 2" (52mm)
Max. tool dia. retractable (under table): 11.75" x 3.31" (300 x 85mm)
Dust port dia.: 4.69" (120mm)
*Electrical requirements: 220V/400V, 3-phase, 60 Hz (machine is 400V and includes an autotransformer for 220V - 400V)
*Subject to change; must be verified prior to installation.
Optional Accessories
NOTE: The following accessories are optional and not included with the machine. They can be purchased at any time, but you can also take advantage of Accessory Bundle Pricing (applicable only at the time of machine purchase). Call us at (260) 637-0054 for more information and to place your order!
"LL" Version for profiling
-Includes (2) cast-iron worktable side extensions that are 2,500mm long, a front support bar to handle large workpieces, and an emergency push button.
Carriage on fix table
-For small tenoning operations. 60° swiveling fence complete with mobile stops, telescopic extension, and eccentric clamp.
Feed 4i Power Feeder
-3 phase, 4 roller feeder with DC brushless motor and swivel mechanism.
No.1 Tool-Holder Shaft w/HSK 63B Taper
-Includes the transponder for automatic tool detecting system.
HSK 63B right taper tool with ring
HSK 63B left taper tool with ring
Mobile trolley for tool-holder
-Complete with two tool racks (5 slots each).
