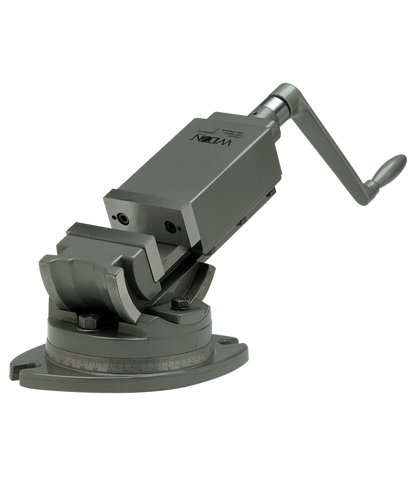

WILTON 2" 2-Axis Precision Angular Vise - WL9-11703

• 180 deg Horizontal indexing.
• 360° swivel base.
• 90° vertical and 180° horizontal indexing.
• All ground surfaces made to close tolerances.
• Bases have keyways and bolt slots for machine mounting.
• Hardness of jaws is 55 ± 3 HRC.
• Jaw plates hardened and ground.
• Perfect vise for applications where the workpiece requires machining on an angle.
• Perfectly indexed for angular work.
• Relief in the clamp seat ensures complete surface contact providing firm locking at any angle.

Specifications

What our Experts Think

• Engineered for Angular Precision: The WILTON 2″ 2‑Axis Precision Angular Vise – WL9‑11703 lets you machine workpieces at precise angles thanks to its 90° vertical indexing, 180° horizontal indexing, 360° swivel base, and 90° tilting range — ideal for angled drilling, milling, grinding, and shaping tasks.

• High‑Tensile Alloy Cast Construction: Built from close‑grained, high‑tensile alloy castings with ground surfaces and hardened jaw plates, this vise maintains tight tolerances and firm clamping stability for repeatable precision work.

• Firm, Accurate Locking: Relief in the clamp seat ensures complete contact between surfaces, giving a secure lock at any angle and reducing movement during machining.

• Ergonomic Design: The all‑steel handle with spring‑loaded ball makes setup adjustments smoother and more comfortable than basic vises.

• Machine‑Mount Ready: Keyways and bolt slots in the base allow easy mounting to machine tables or workstations, turning this vise into a stable precision fixture.

• Compact yet Capable: With a 2″ jaw width and up to ~2″ opening, this model delivers precision and flexibility in a small footprint — perfect for tight setups or frequent angle adjustments.

Q&A

Q: What is this precision angular vise used for?
A: It holds small workpieces securely while allowing precise 2‑axis angle adjustments for drilling, milling, and machining.

Q: What does 2‑axis capability mean?
A: The vise tilts on two planes, enabling flexible positioning and accurate angular alignment.

Q: What is the jaw width of this vise?
A: It has a 2‑inch jaw width for firm clamping of smaller components.

Q: Is this vise suitable for professional precision work?
A: Yes, it is designed for machinists, toolmakers, and precision engineering applications.

Q: What material is the vise made from?
A: It is constructed from durable, heavy‑duty metal for reliable, long‑lasting performance.

Q: Can it be mounted on a machine table?
A: Yes, it is designed for secure mounting on drill presses, milling machines, and workbenches.
