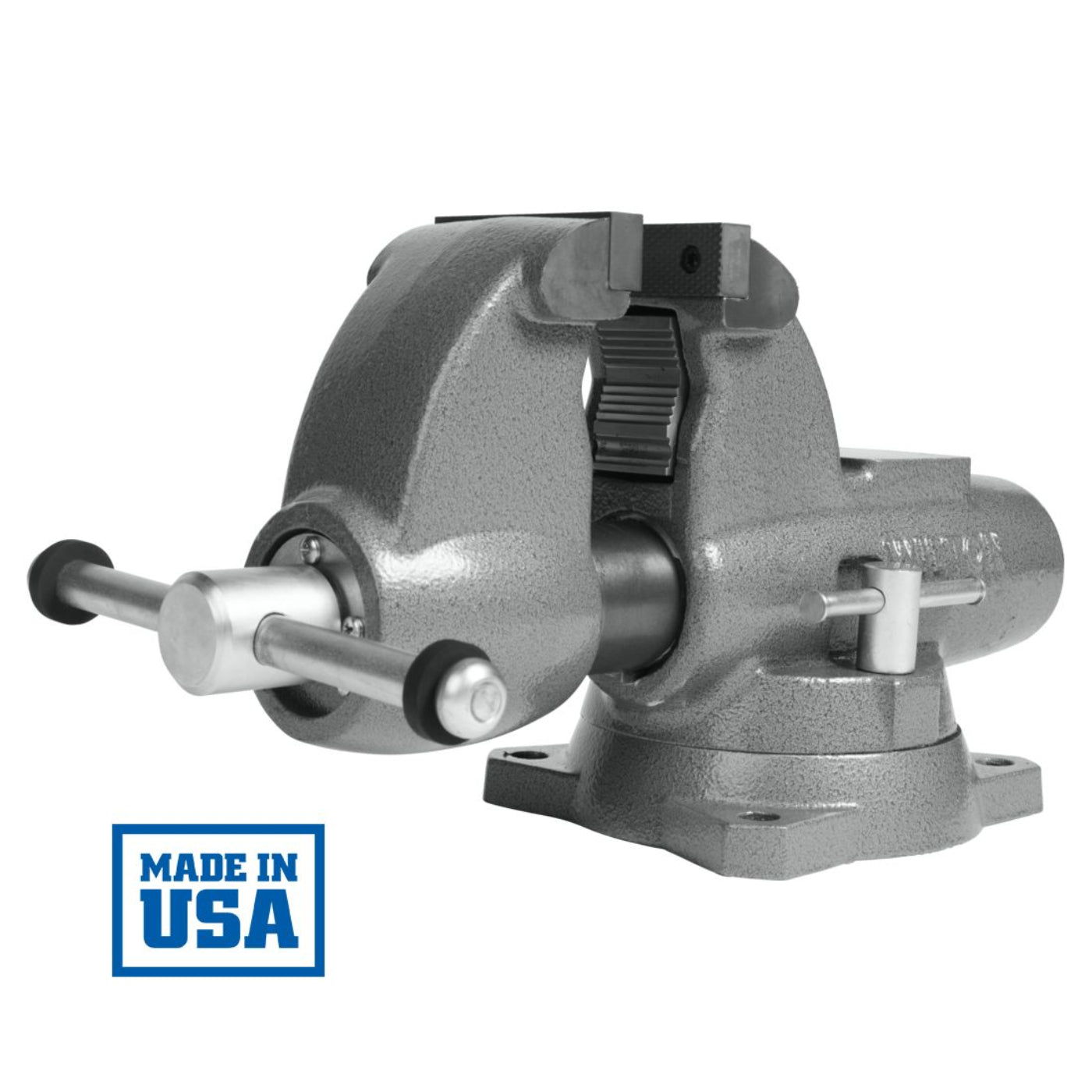

WILTON 5" Pipe & Bench Vise - WL9-28827
Proudly made in the USA, the Combination Pipe and Bench round channel vise is designed to handle the most demanding clamping applications. Unlike most vises that have a fixed center nut, the Combination Pipe and Bench round channel vise nut is anchored at the rear which provides straight line pull and even pressure resulting in greater durability. The round channel design also allows for a completely enclosed spindle and nut assembly keeping debris out and lubrication in for a lifetime of smooth operation. For ultimate versatility, the Combination Pipe and Bench vise is equipped with main jaws, pipe jaws and a machined anvil work surface.
Features
- Hardened steel replaceable jaw inserts are machine serrated for a safe and secure grip under maximum torque.
- Large anvil designed to take a beating while forming and shaping materials.
- Locking swivel base with double lockdowns for non-slip hold in any position.
- Longer spindle nut ensures smooth movement and a stronger straight-line pull.
- Massive cast iron vise body is virtually indestructible, weighing up to 30% more than competing models.
- Precision slide bar eliminates movement in the front jaw regardless of opened distance.
- Replaceable steel pipe jaws hold up to 6" pipe safely and securely.
- Sealed construction keeps lubrication in and contaminants out for a lifetime of smooth operation.
Specifications
| Jaw Opening |
7" |
| Jaw Width |
5" |
| Throat Depth |
5-5/16" |
What our Experts Think
-
Versatile Pipe & Bench Capability: The WILTON 5âł Pipe & Bench Vise â WL9â28827 combines traditional bench vise function with selfâcentering pipe jaws, so you can clamp flat stock and round pipe (up to ~4Âœâł) with confidence in one tool.
-
HeavyâDuty, USAâBuilt Strength: Made in the USA with a massive cast iron body thatâs up to 30âŻ% heavier than competing models, this vise stands up to the toughest workshop, fabrication, and maintenance tasks.
-
Smooth, LongâLasting Operation: The rearâanchored nut and round channel design deliver straightâline pull and even pressure for durability, while sealed spindle construction keeps dirt out and lubrication in for smooth action over years of use.
-
Secure Workholding: Hardened, machineâserrated replaceable jaw inserts provide a strong, secure grip under maximum torque for demanding clamping jobs.
-
Flexible Positioning: A 360° swivel base with double lockdowns lets you orient and lock the vise at the most convenient angle for better access and workflow.
Q&A
Q: What is this pipe and bench vise used for?
A: It is designed for securely holding pipe, tubing, and other materials during cutting, threading, bending, and general bench work.
Q: What is the jaw width for this vise?
A: The vise has a 5-inch jaw width for stable and versatile clamping.
Q: Can it handle pipe work?
A: Yes, the vise includes pipe jaws for gripping round stock and tubing securely.
Q: Is this vise suitable for professional use?
A: Yes, it is built for workshops, garages, and industrial bench applications.
Q: What material is the vise made from?
A: It is constructed from heavy-duty, durable metal for long-lasting performance.
Q: Can it be mounted to a workbench?
A: Yes, it is designed for secure mounting on standard benches for stable operation.
Maintenance Tips
-
Clean jaws, screw, and sliding surfaces after each use to remove debris and residue.
-
Lightly lubricate the lead screw and sliding parts for smooth operation.
-
Keep jaws and pipe-gripping surfaces dry to prevent rust.
-
Avoid overtightening to protect threads and maintain jaw alignment.
-
Store in a dry area; apply rust protection if unused for extended periods.
