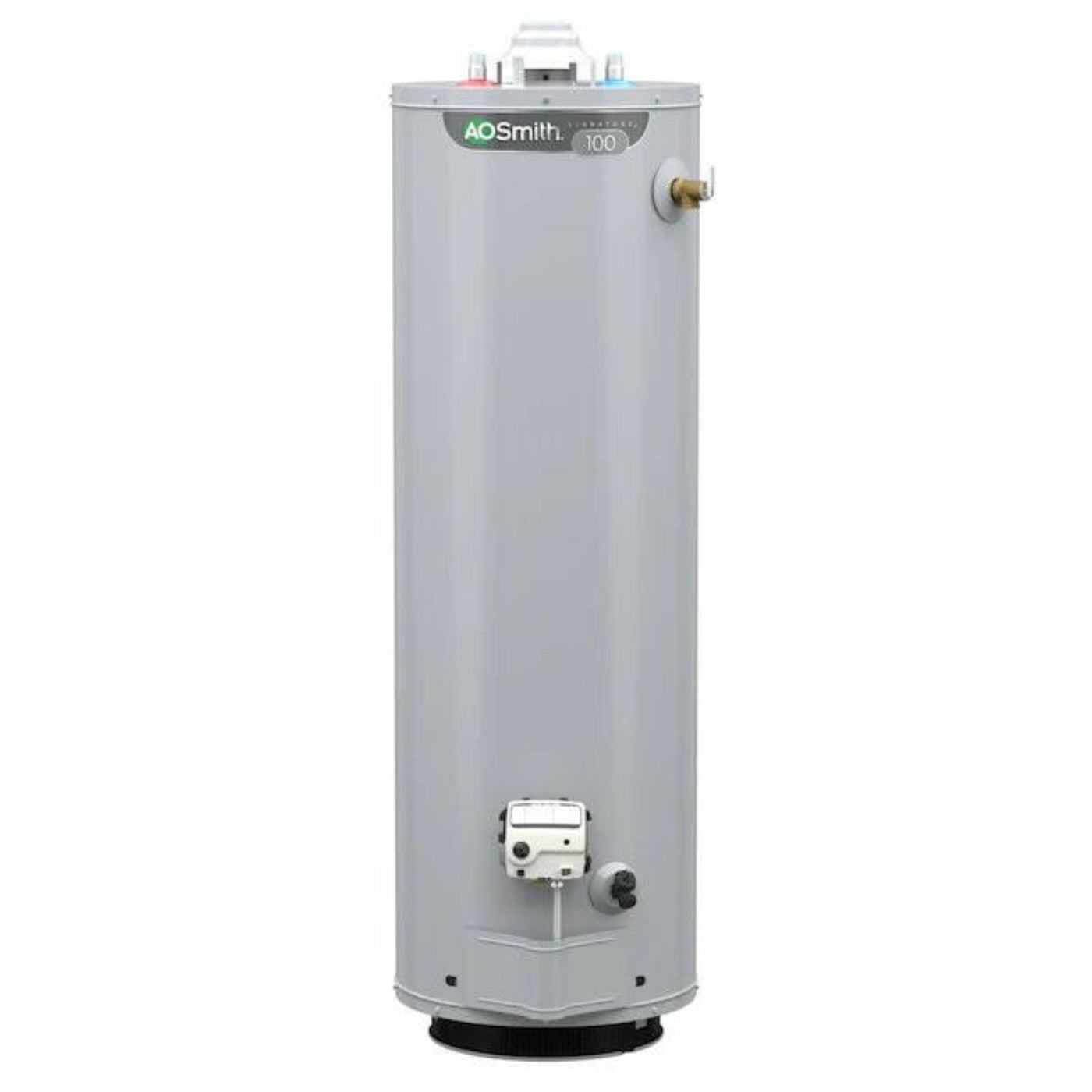

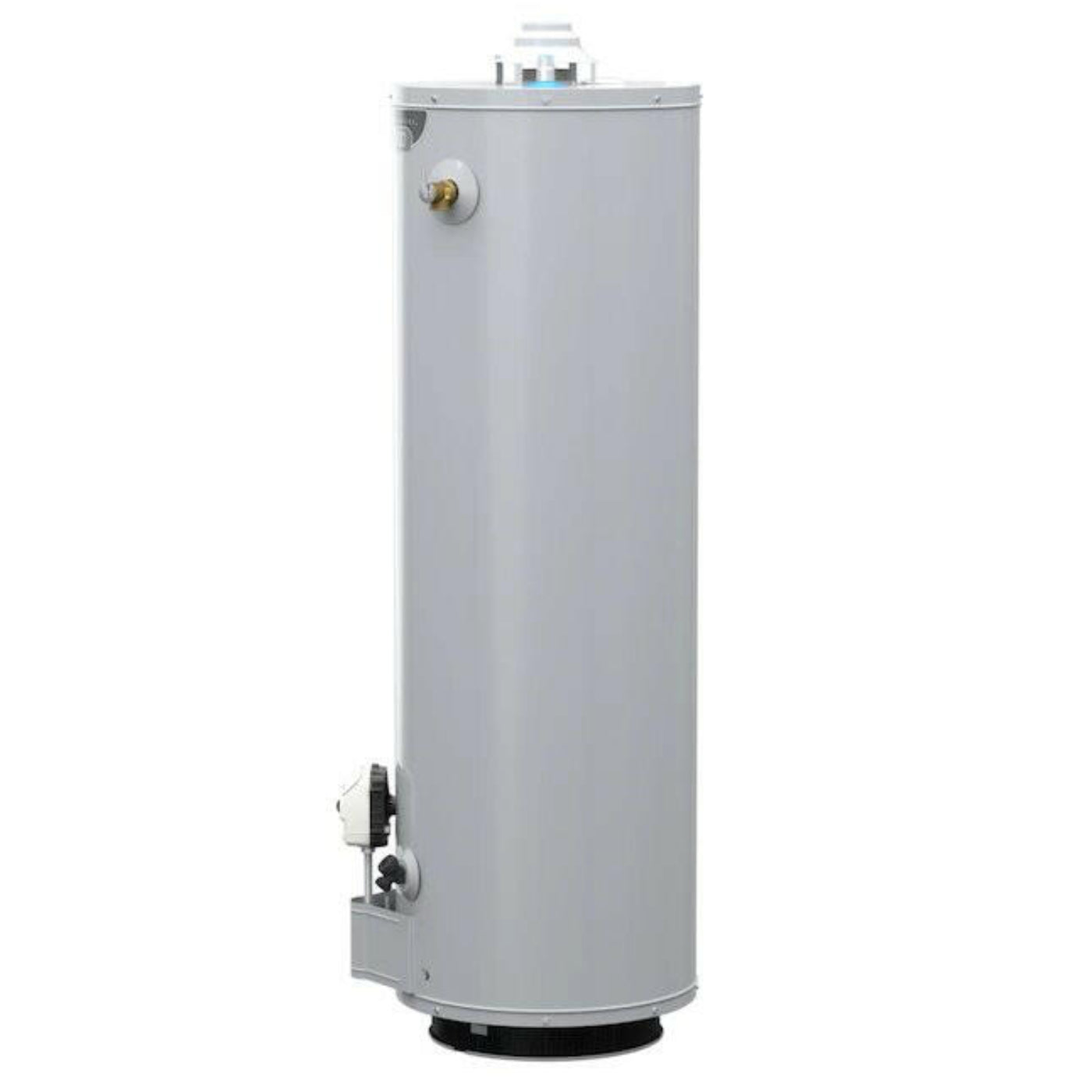

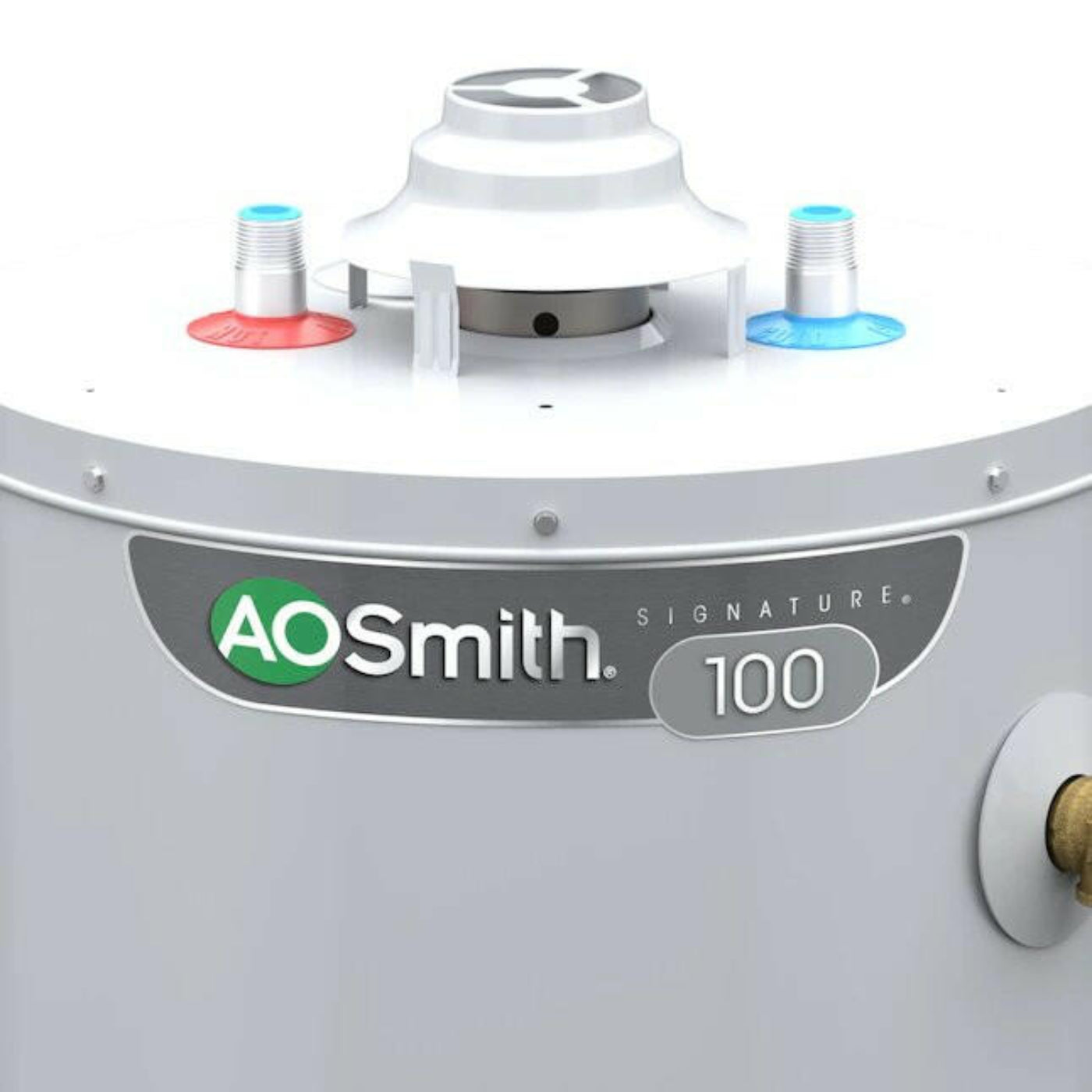

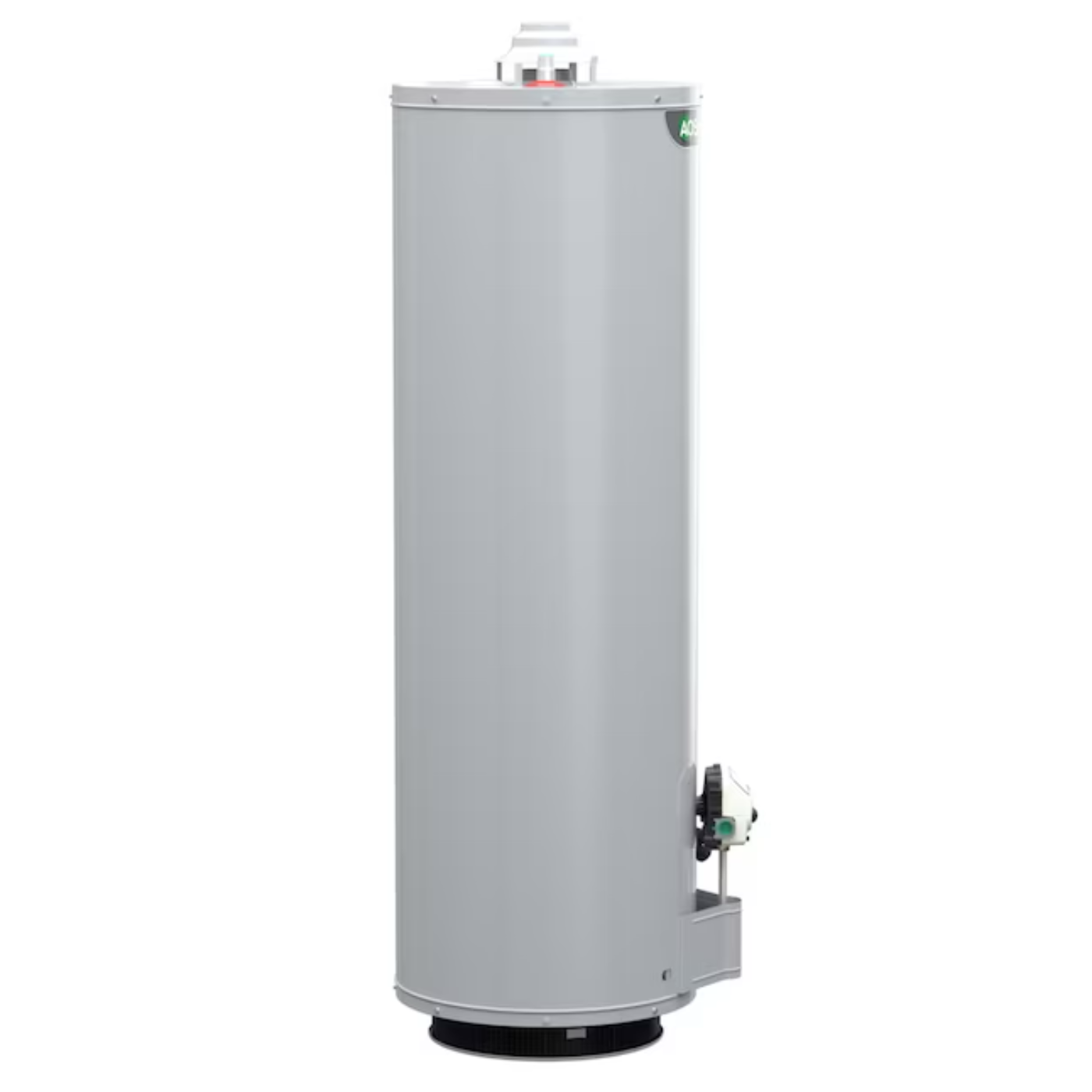

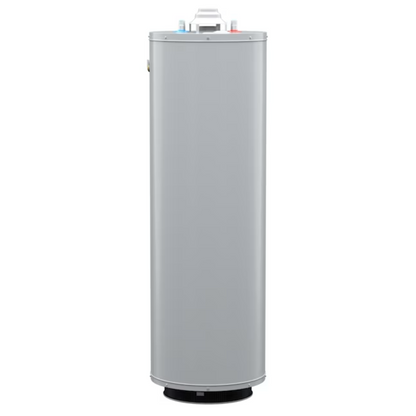

A.O. Smith Signature 100 40-Gallon 6-year Limited 35500-BTU Natural Gas Water Heater - G6-T4035NVR

• Ideal hot water delivery for households with 3-4 people when sized appropriately

• Environmentally friendly 35,500 BTU low NOx gas burner delivers 65 gallons in the first hour

• Electronic gas valve provides precise temperature control for optimum hot water delivery

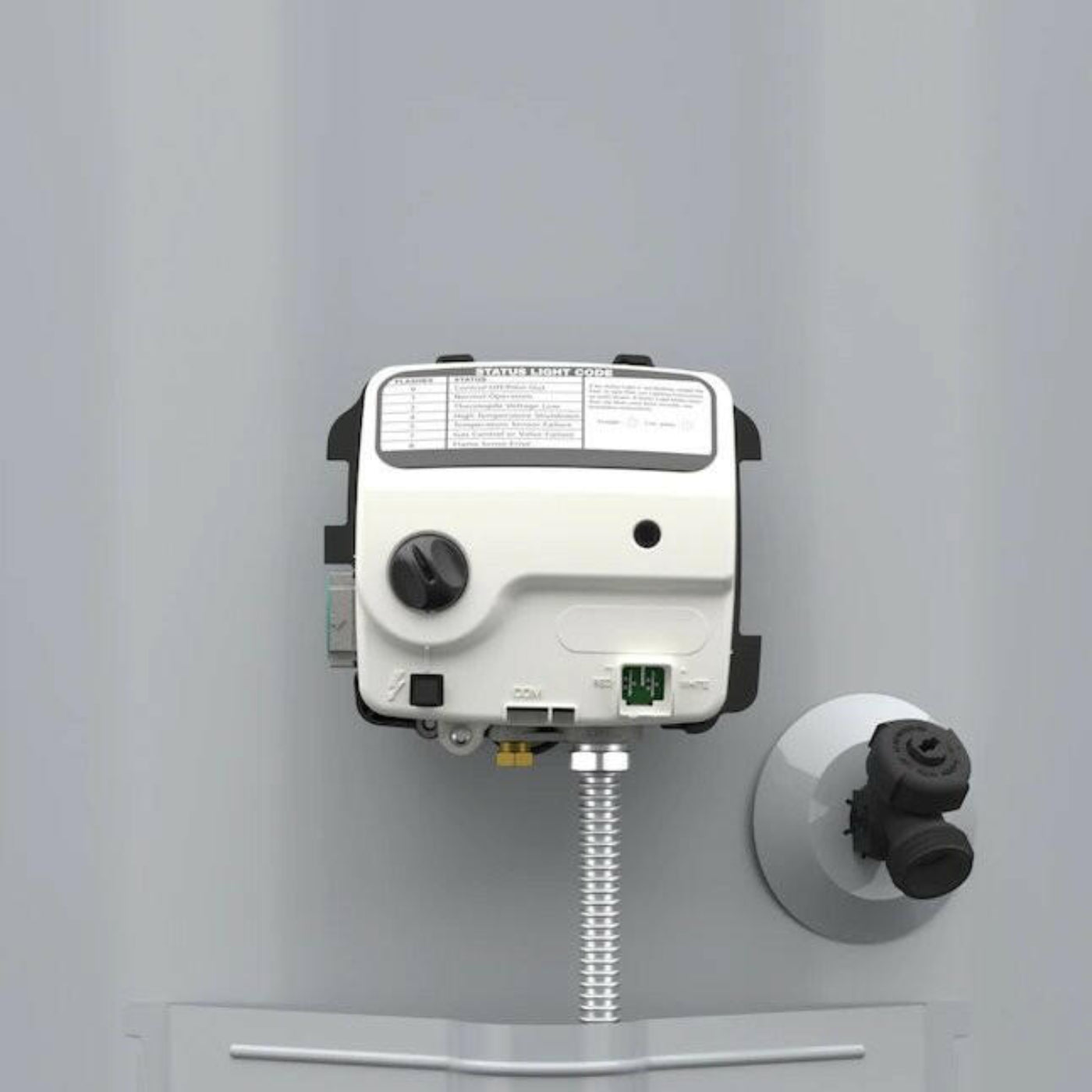

• Self-diagnostic electronic gas control incorporates an LED status indicator that monitors and reports on system operational status

• Built-in safety system reduces the risk of accidental flammable vapor ignitions

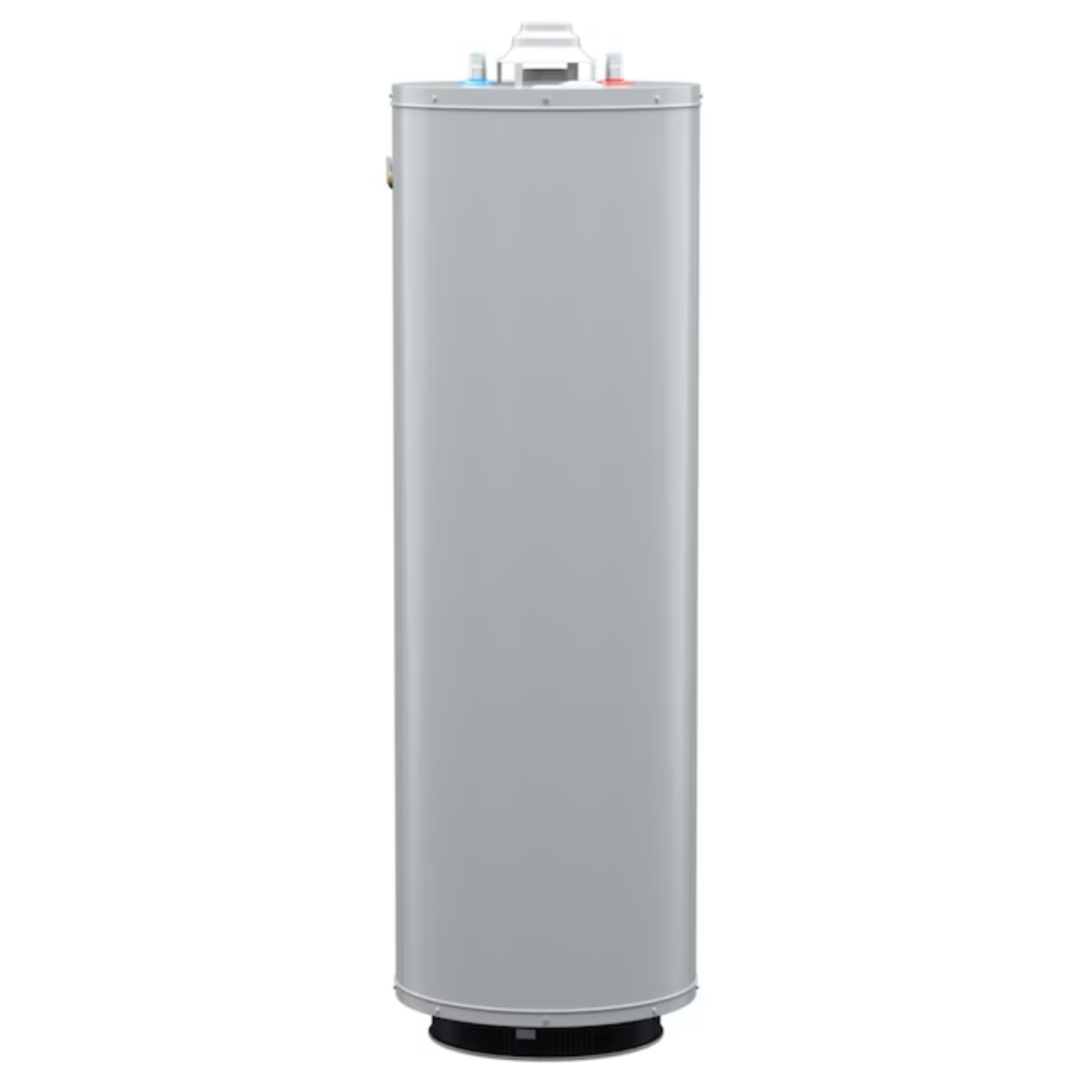

• Tall and slim 61.75-in H x 20-in diameter profile is designed for easier installation

• Protective anode rod and fused ceramic tank shield provide superior tank protection and extend water heater life

• High-altitude certified from 0 ft to 10,100 ft


What our Experts Think

• Compact Raised Griddle Broiler Combo – The American Range ARGB‑24 is a 24″ gas raised griddle with an integrated broiler, ideal for cafés, diners, breakfast spots, and kitchens where space and versatility matter.

• Even, Reliable Heat – Equipped with two burners delivering ~40,000 BTU total output and a 3/4″ polished steel griddle plate, it provides consistent heat across the cooking surface for pancakes, burgers, eggs, and more.

• Dual Function Cooking – The pull‑out broiler rack lets chefs finish or brown foods above the griddle without separate equipment, adding flexibility to your prep lineup.

• Commercial‑Grade Construction – Stainless steel front and sides plus solid steel chassis ensure durability in busy kitchens and easy cleanup after service.

• Smart Grease & Cleanup Design – A 3″ wide grease trough with a removable tray helps contain spills and makes maintenance fast, while manual controls keep operation straightforward.

• Stable Countertop Fit – With 4″ adjustable legs and a compact footprint, this unit fits neatly on countertops in tight spaces without sacrificing professional performance.

Q&A

Q1: What is the A.O. Smith G6‑T4035NVR?
A: The A.O. Smith Signature 100 G6‑T4035NVR is a 40‑gallon commercial/residential natural gas water heater built for reliable hot water delivery in homes sized for 3–4 people.

Q2: How much heating power does it provide?
A: It features a 35,500 BTU low‑NOx natural gas burner that delivers efficient hot water and meets emissions standards.

Q3: What capacity and performance can I expect?
A: The tank has a 40‑gallon nominal capacity (≈38 gal rated) and can produce an estimated ≈65 gallons in the first hour of use when sized appropriately.

Q4: What warranty does this model include?
A: It comes with a 6‑year limited warranty on tank and parts plus a 1‑year limited labor warranty for peace of mind.

Q5: What safety and diagnostic features does it have?
A: Features include a self‑diagnostic electronic gas control with LED status indicator and a built‑in safety system to reduce accidental flammable vapor ignition.

Q6: Is it easy to install in tight spaces?
A: Yes — its tall, slim 61.75″ H × 20″ diameter profile makes it suitable for narrow installations like closets or utility rooms.

Q7: How durable is the unit?
A: A protective anode rod and fused ceramic tank shield help reduce corrosion and extend water heater life.

Q8: Can it be used at high elevations?
A: This model is high‑altitude certified up to about 10,100 ft, making it versatile for many locations.

Maintenance Tips

• Flush the Tank Annually: Drain and flush the storage tank at least once per year to remove sediment buildup that reduces efficiency and lifespan.

• Inspect Anode Rod: Check the sacrificial anode rod after the first 6 months and then annually; replace when heavily corroded to prevent internal tank corrosion.

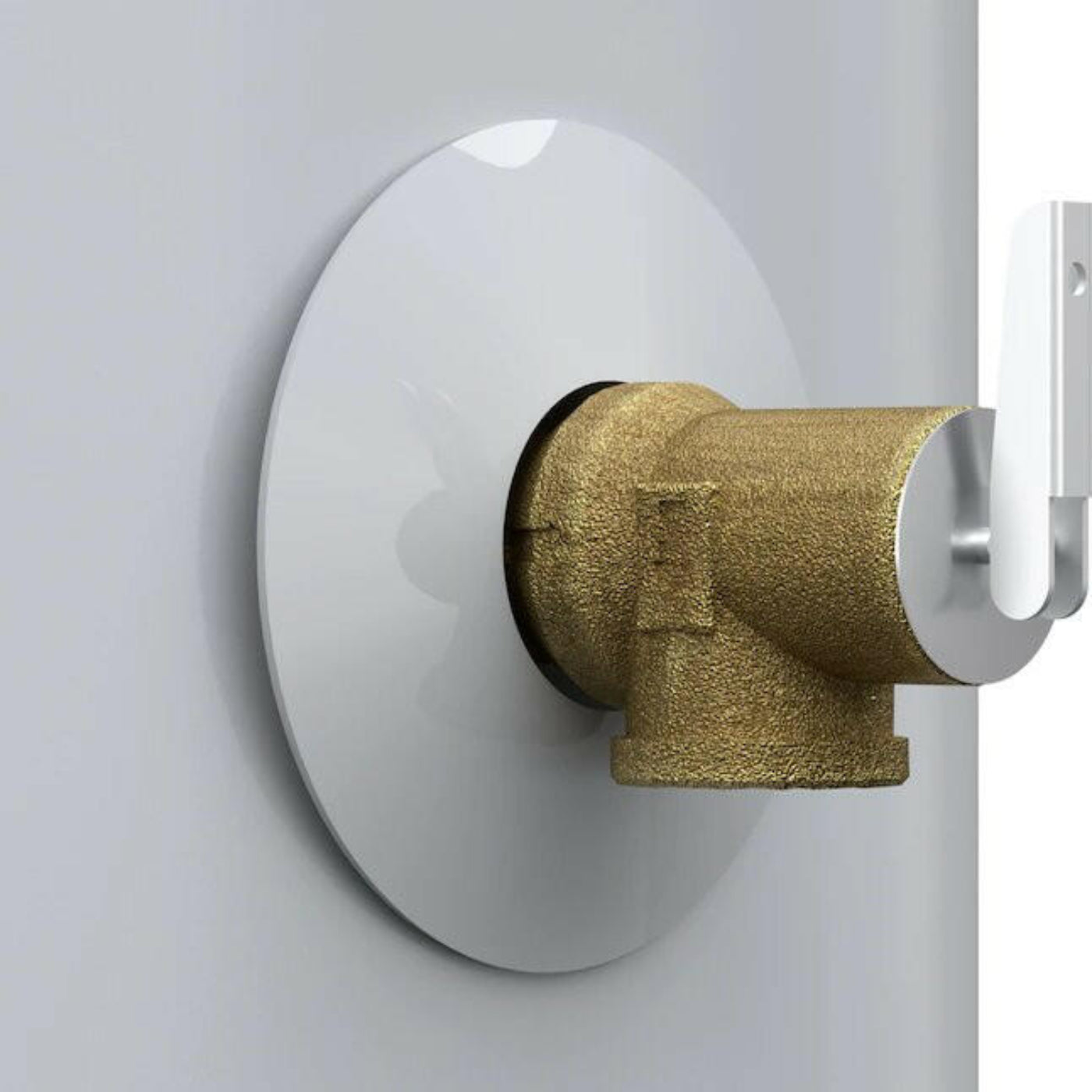

• Test T&P Relief Valve: Lift the temperature & pressure relief (T&P) valve once a year to ensure proper pressure relief and safety.

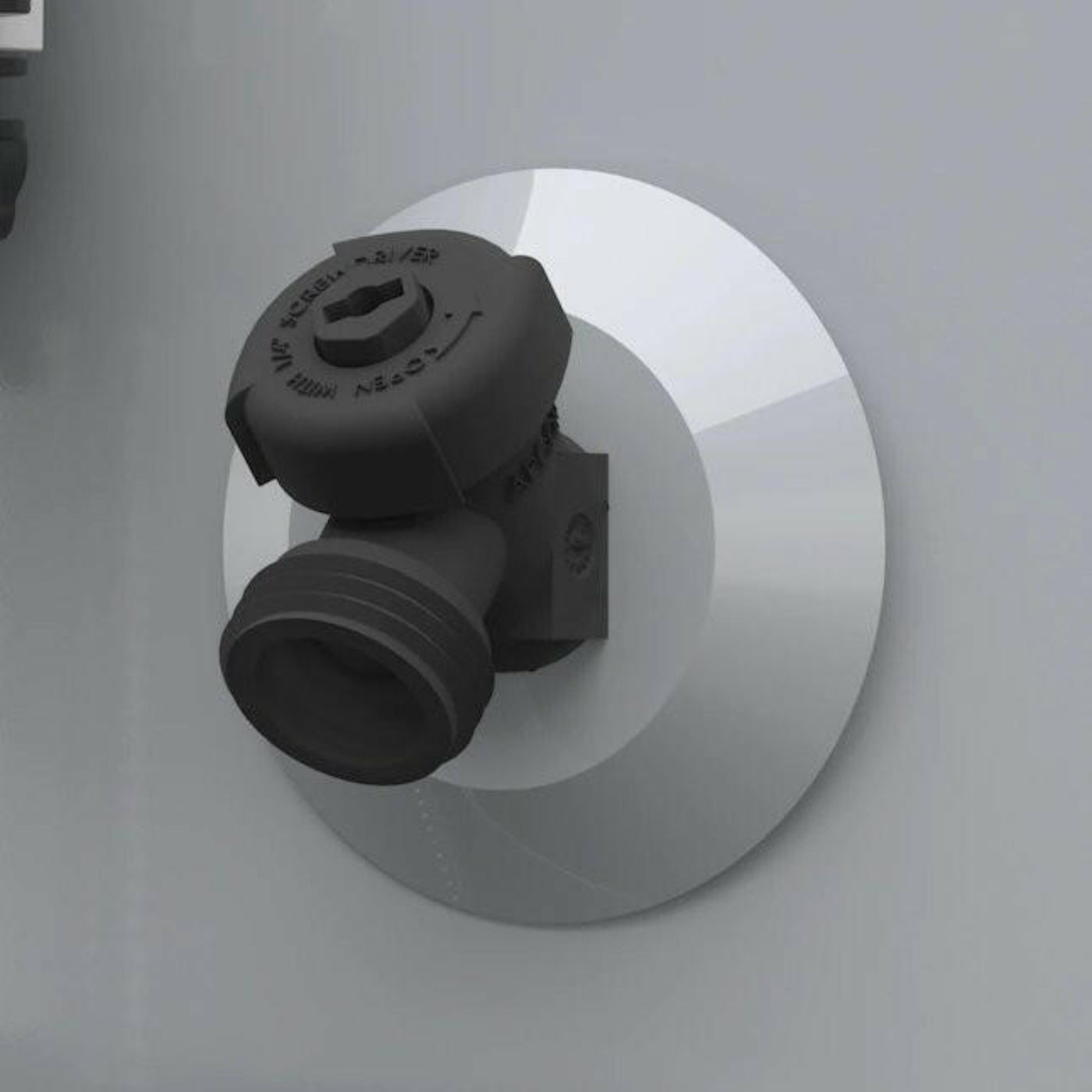

• Check for Leaks & Corrosion: Periodically inspect around water connections, drain valve, fittings, and vent piping for leaks or corrosion; address promptly.

• Clean Exterior & Vent: Wipe the exterior to keep it free of dust; verify proper venting and clear obstructions to maintain combustion efficiency and safe exhaust.

• Monitor Temperature Setting: Keep thermostat at recommended ~120 °F to balance comfort, energy savings, and reduce scaling.
