Goodman - 2 Ton/80,000 BTU 80% AFUE Low NOx Gas Furnace and Air Conditioner System - Horizontal - 14.5 SEER2 - R32 - GLXS4BA2410 / CHPTA2426B3 / GM9C800804BX
A Goodman Gas Furnace and Air Conditioner System is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, a Goodman Gas Furnace and Air Conditioner System is the perfect choice for all of your heating and cooling needs.
Features
- Ideal size to cover a small house in ideal climates

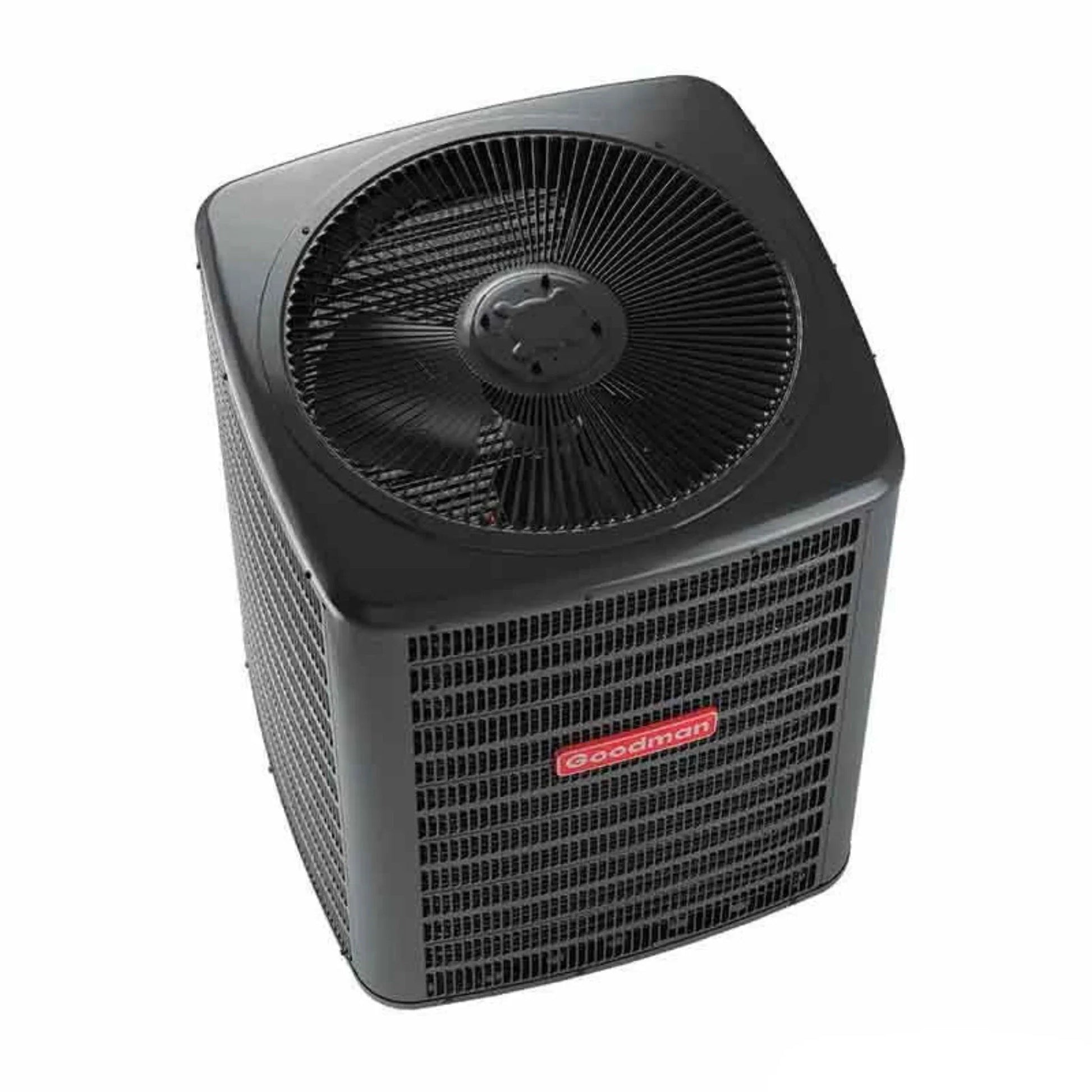

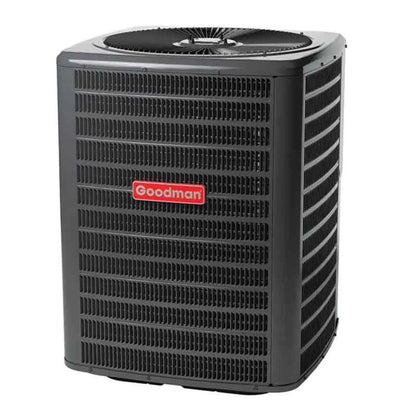

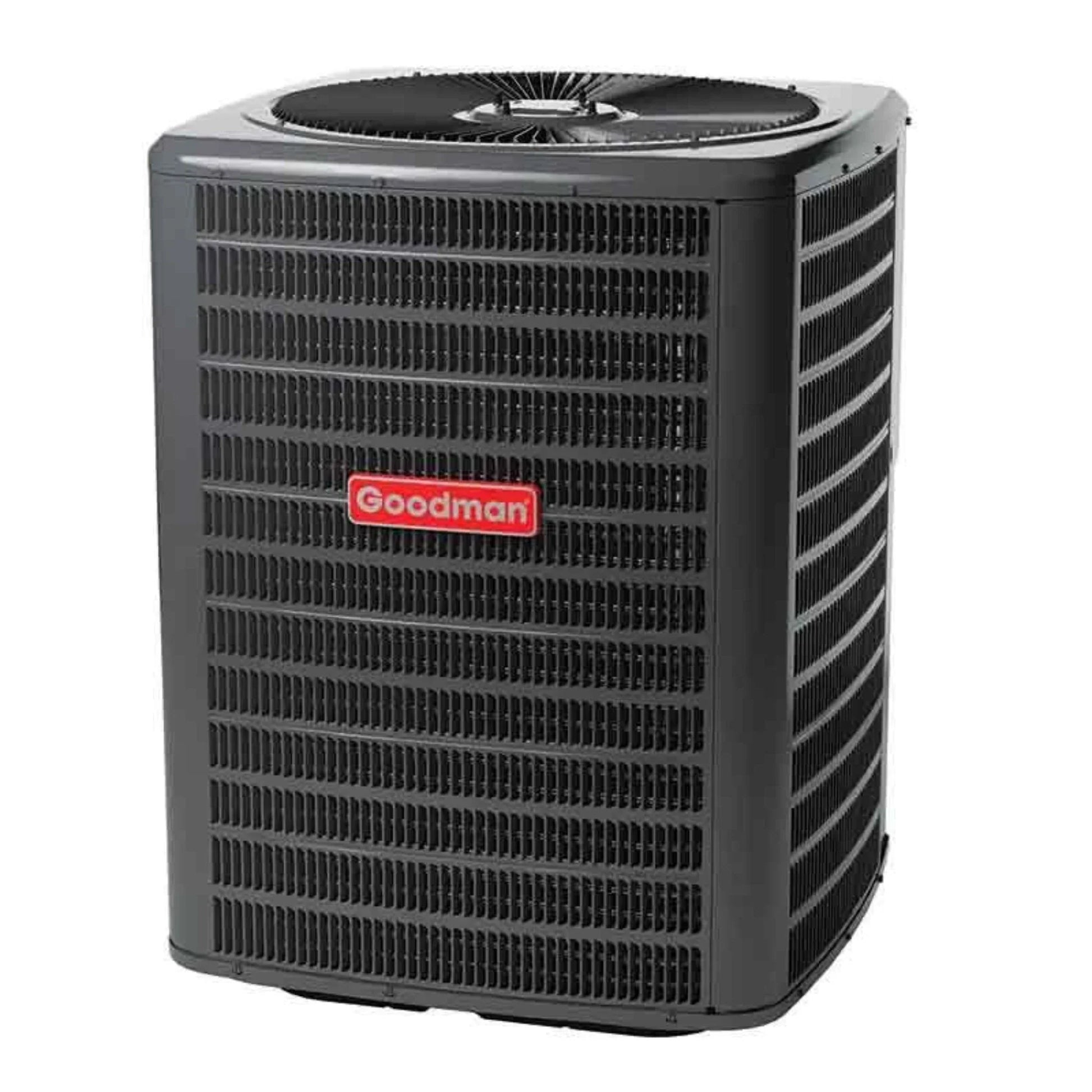

- 2 ton, 14.3 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Fully charged for up to 15' of line set
- Low sound output
- Factory-installed filter drier

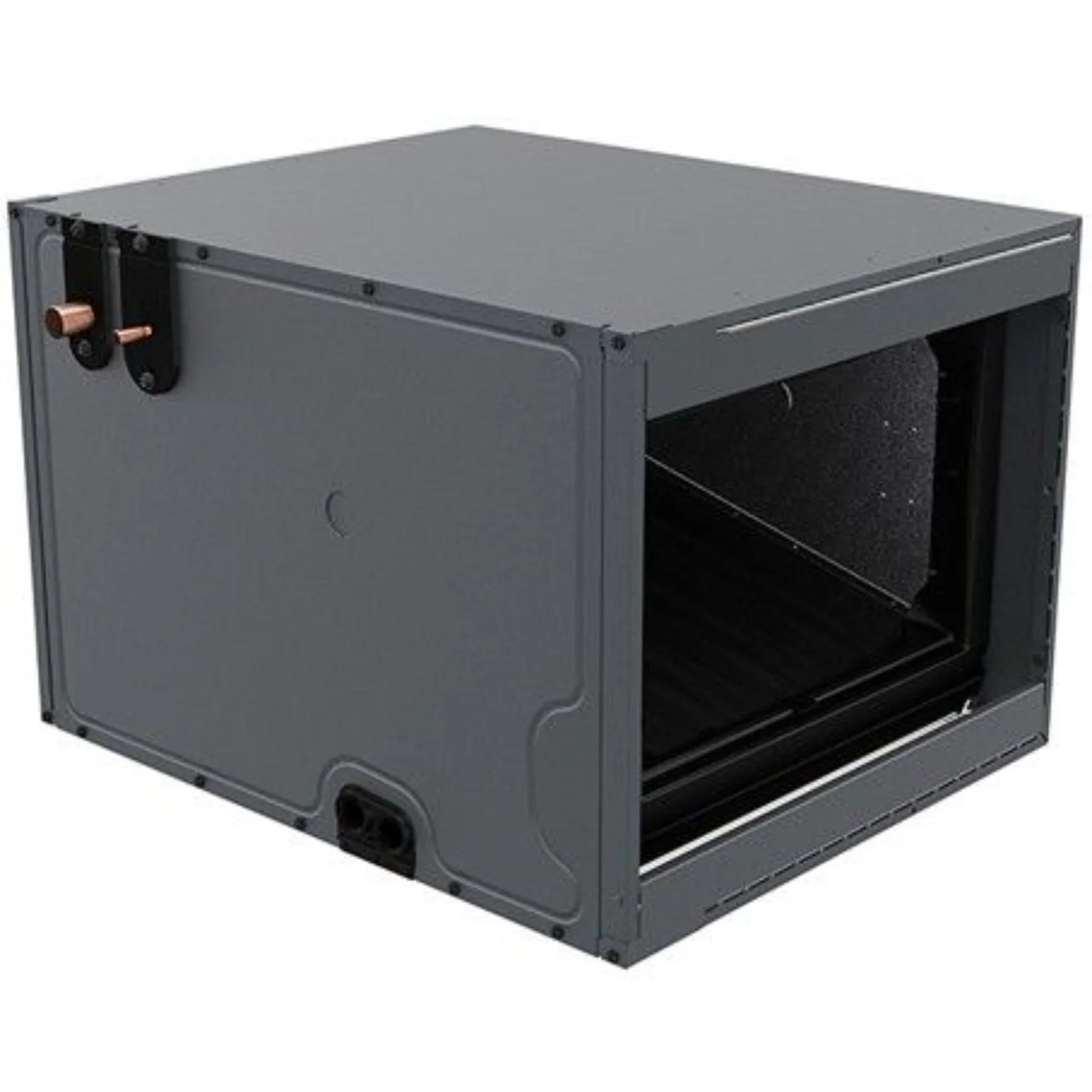

- 2 ton horizontal evaporator coil
- Can be used with heat pump and AC-only condensers
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
- Factory-installed TXV kit
- This furnace is ideal to heat a medium-sized house (depending on climate)

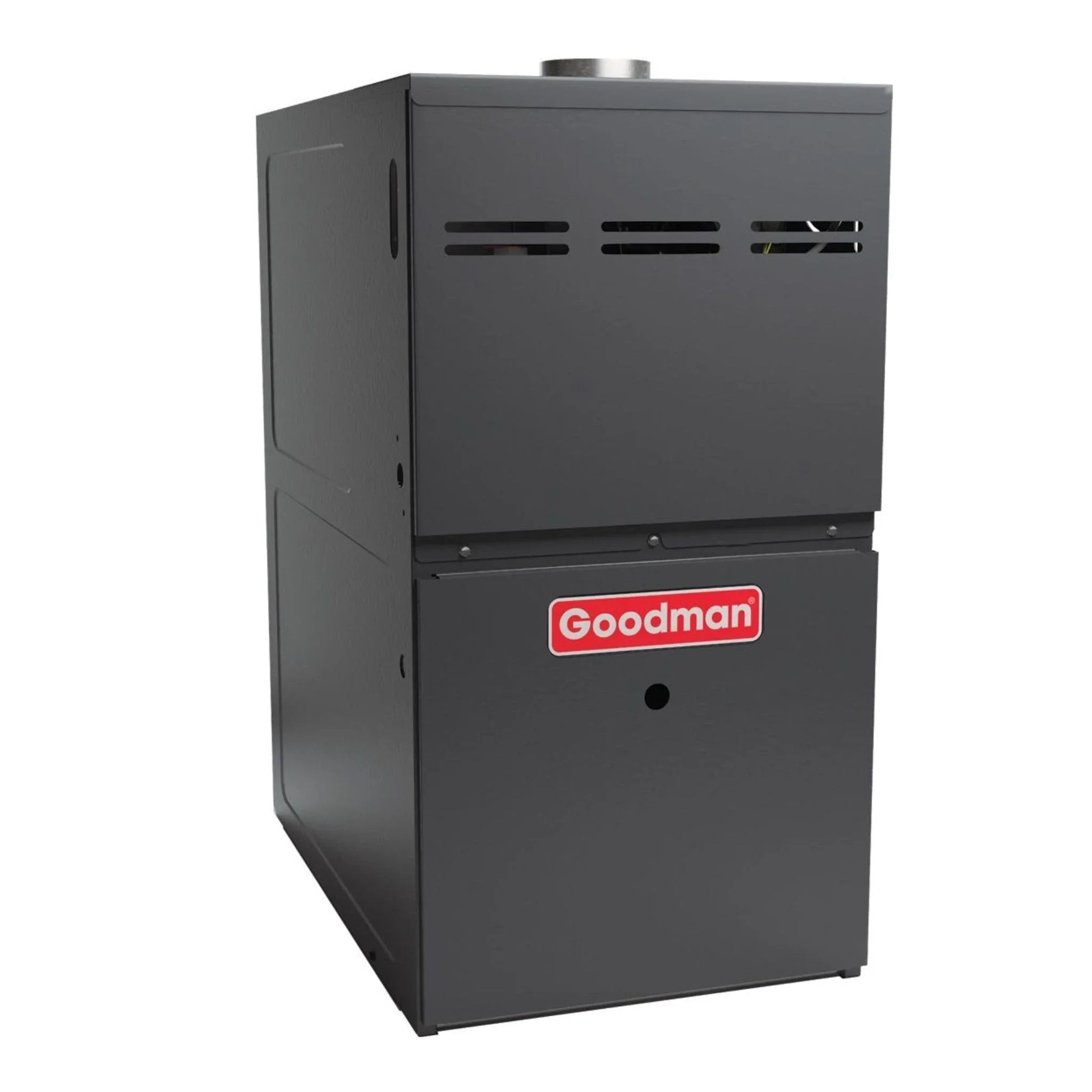

- 80,000 BTU 80% efficient natural gas furnace
- Requires metal flue venting
- Can be used in the upflow or horizontal orientation
- Can be converted to an LP furnace with a conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
Specifications
| SKU |
GLXS4BA2410 |
| Weight |
132.000000 |
| Manufacturer |
Goodman |
| Replaces |
GSXN402410 |
| Product Features |
New Refrigerant Compliant |
| Cooling BTU |
24,000 |
| Decibel Level (dBA) |
74 |
| Horsepower |
1/8 HP |
| Refrigerant |
R32 |
| SEER2 |
14.3 |
| Condenser Stages |
Single Stage |
| Compressor Type |
Rotary |
| Liquid Line |
3/8" |
| Suction Line |
3/4" |
| Liquid Valve Size |
3/8" |
| Suction Valve Size |
3/4" |
| Electrical |
208/230v 1 Phase 60Hz |
| Max Breaker Size |
15 Amps |
| Min. Breaker Size |
10.9 Amps |
| Tonnage |
2 Ton |
| Connection |
Sweat |
| Height |
27" |
| Width |
26" |
| Depth |
26" |
Owner's Manual
What our Experts Think
-
Efficient Cooling & Heating for Smaller Spaces
• 14.5 SEER2 cooling delivers solid energy performance without premium costs — ideal for everyday comfort.
• 80% AFUE low‑NOx gas furnace provides effective heating with reduced emissions, making it suitable for areas with air quality standards.
-
Matched Capacity for Right‑Sized Comfort
• The 2‑ton / ~80,000 BTU pairing offers balanced heating and cooling for small to mid‑size homes, preventing oversizing and improving efficiency.
-
Horizontal Installation Flexibility
• Designed for horizontal airflow orientation, making it ideal for attic or crawl space installations where traditional vertical furnaces won’t fit.
-
Modern R‑32 Refrigerant
• Uses R‑32 refrigerant, which supports better efficiency and a lower environmental footprint compared with older refrigerants.
-
Goodman Reliability & Serviceability
• Durable construction and accessible service points support easier maintenance and long‑term performance without unnecessary complexity.
Q&A
Q: What’s included in this complete HVAC system?

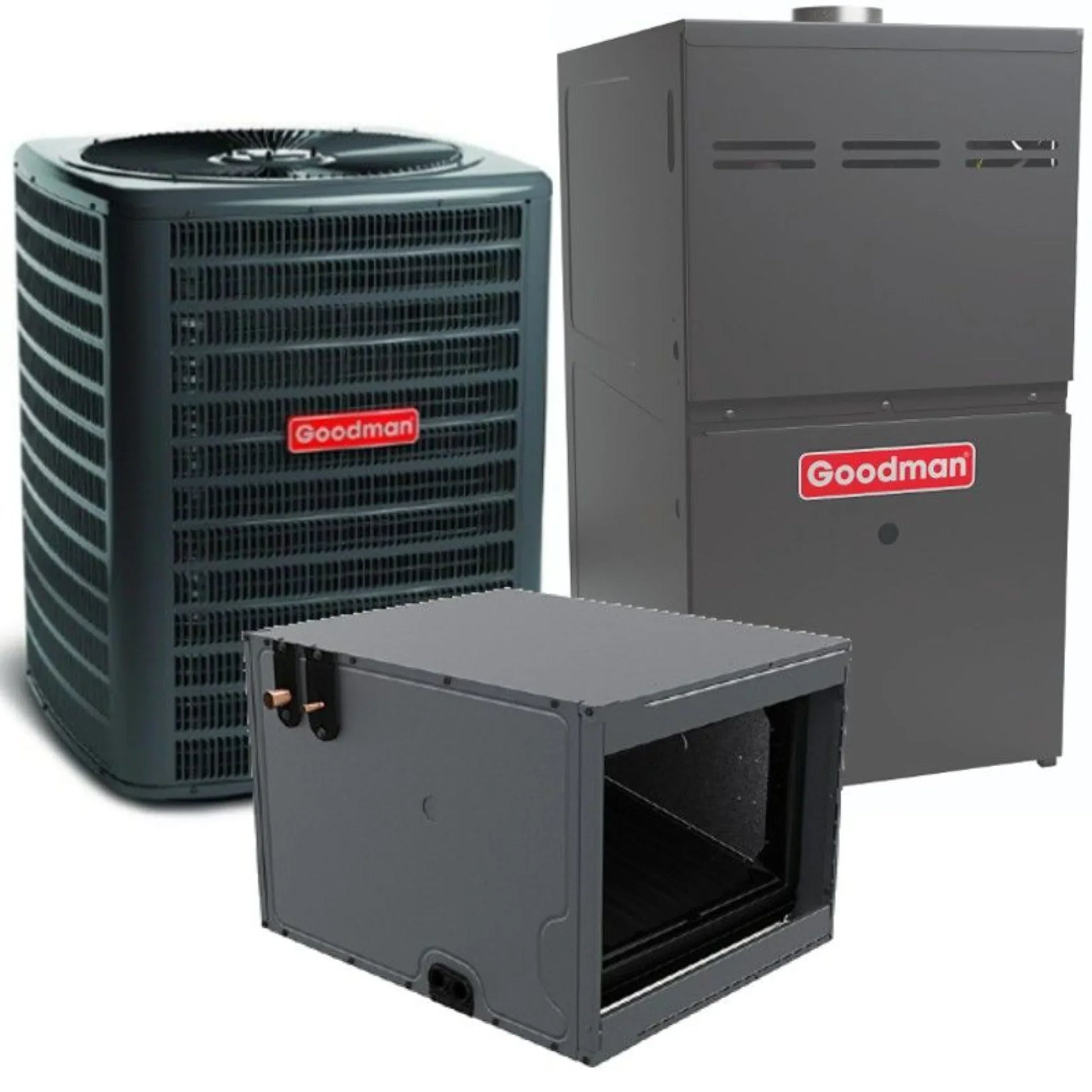

A: This system includes a 2 ton R‑32 air conditioner condenser (GLXS4BA2410), a matched R‑32 horizontal evaporator coil (CHPTA2426B3), and an 80,000 BTU 80% AFUE two‑stage Low NOx gas furnace (GM9C800804BX) for balanced cooling and heating comfort.
Q: What size home is this system designed to serve?
A: A 2 ton cooling capacity and 80,000 BTU heating output suit small to medium homes, depending on insulation, ductwork, and climate conditions.
Q: How efficient is the cooling side?
A: The outdoor condenser delivers about 14.3 SEER2 efficiency, offering solid energy performance and potential utility savings.
Q: What does “80% AFUE” mean for the furnace?
A: 80% AFUE means 80% of fuel is converted to heat for your home, with the remainder lost through flue venting — standard for reliable mid‑efficiency gas furnaces.
Q: What is Low NOx, and why does it matter?
A: Low NOx indicates reduced nitrogen oxide emissions from the furnace, helping meet regional environmental and emissions standards.
Q: What type of furnace motor and staging does it have?
A: The furnace features a 9‑speed ECM blower and two‑stage operation for smoother comfort control and better airflow.
Q: What refrigerant does this system use?
A: Uses R‑32 refrigerant, which improves efficiency and has a lower environmental impact compared with many older refrigerants.
Q: What installation orientation is supported?
A: Designed for horizontal installation, making it suitable for tight attic or crawlspace setups
Maintenance Tips
-
Replace or Clean Air Filters
Inspect monthly; replace every 1–3 months to maintain airflow and energy efficiency.
-
Clean Condenser and Evaporator Coils
Dirt reduces cooling performance; schedule annual professional cleaning.
-
Inspect Furnace Burner and Heat Exchanger
Annual inspection ensures safe operation and maintains 80% AFUE efficiency.
-
Check Condensate Drain and Pan
Clear clogs to prevent water damage and maintain AC efficiency.
-
Maintain System Clearance
Keep 2–3 ft around indoor and outdoor units free from debris for proper airflow.
-
Verify Thermostat and System Operation
Ensure heating and cooling cycles work correctly and thermostat is calibrated.
-
Schedule Annual Professional Service
A certified technician should inspect refrigerant levels, gas lines, electrical connections, and blower operation to extend system lifespan.
